Moxa MxNVR-IA8 Getting Started
2-8

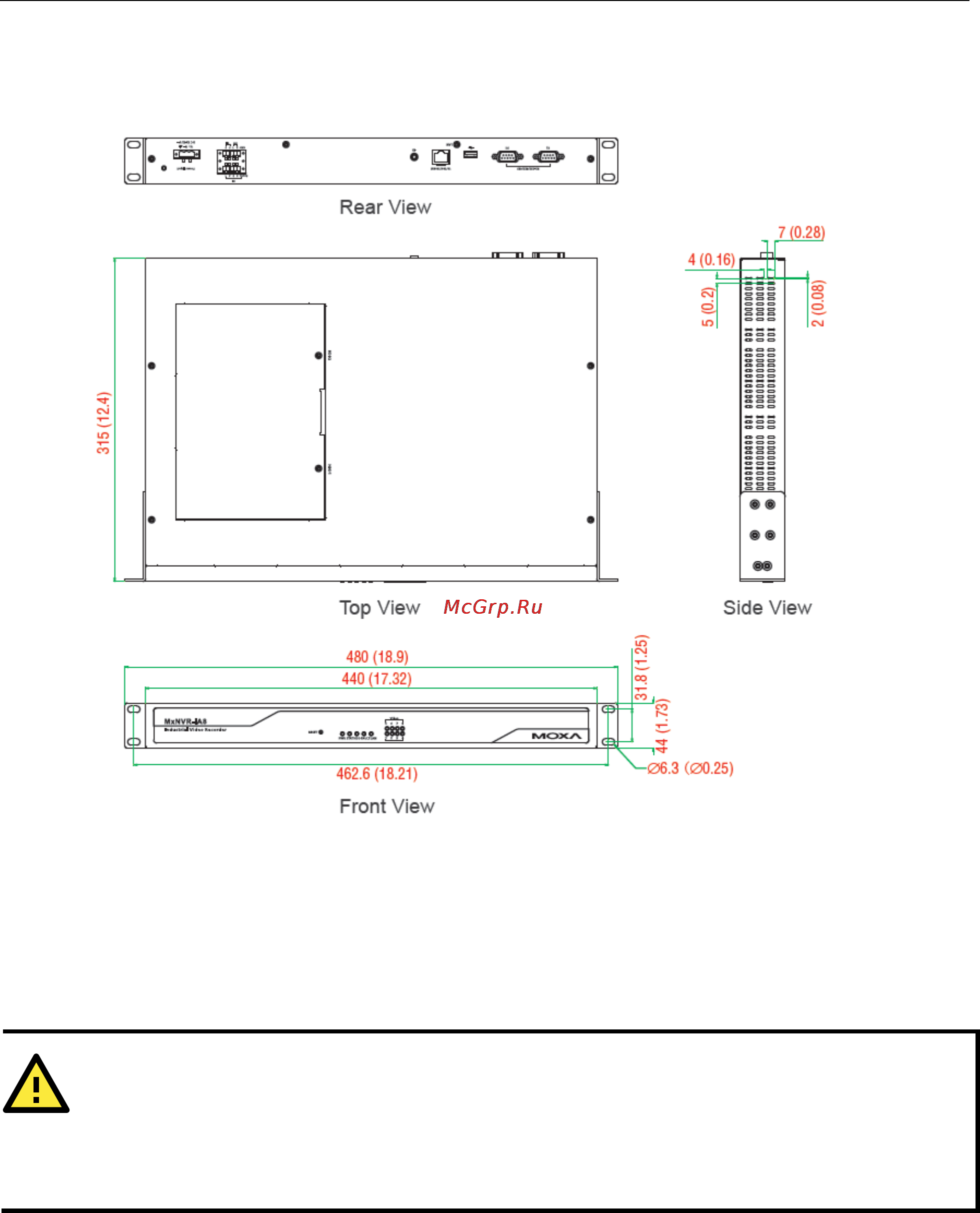

Dimensions
(Unit: mm)
Mounting the MxNVR-IA8
The MxNVR-IA8 has a 19-inch rackmount kit, which can be used to install the industrial network video recorder
on a standard rack.
ATTENTION
• For maximum safety, at least two persons should work together to lift, place, and attach the industrial
network video recorder to the rack.
• Before you lift or move the industrial network video recorder, make sure that the unit
is turned off and the
power to the rack system is also turned off.
