Moxa MxNVR-MO4 [46/61] Modifying a video source

Moxa MxNVR-IA8 System Configuration

4-17

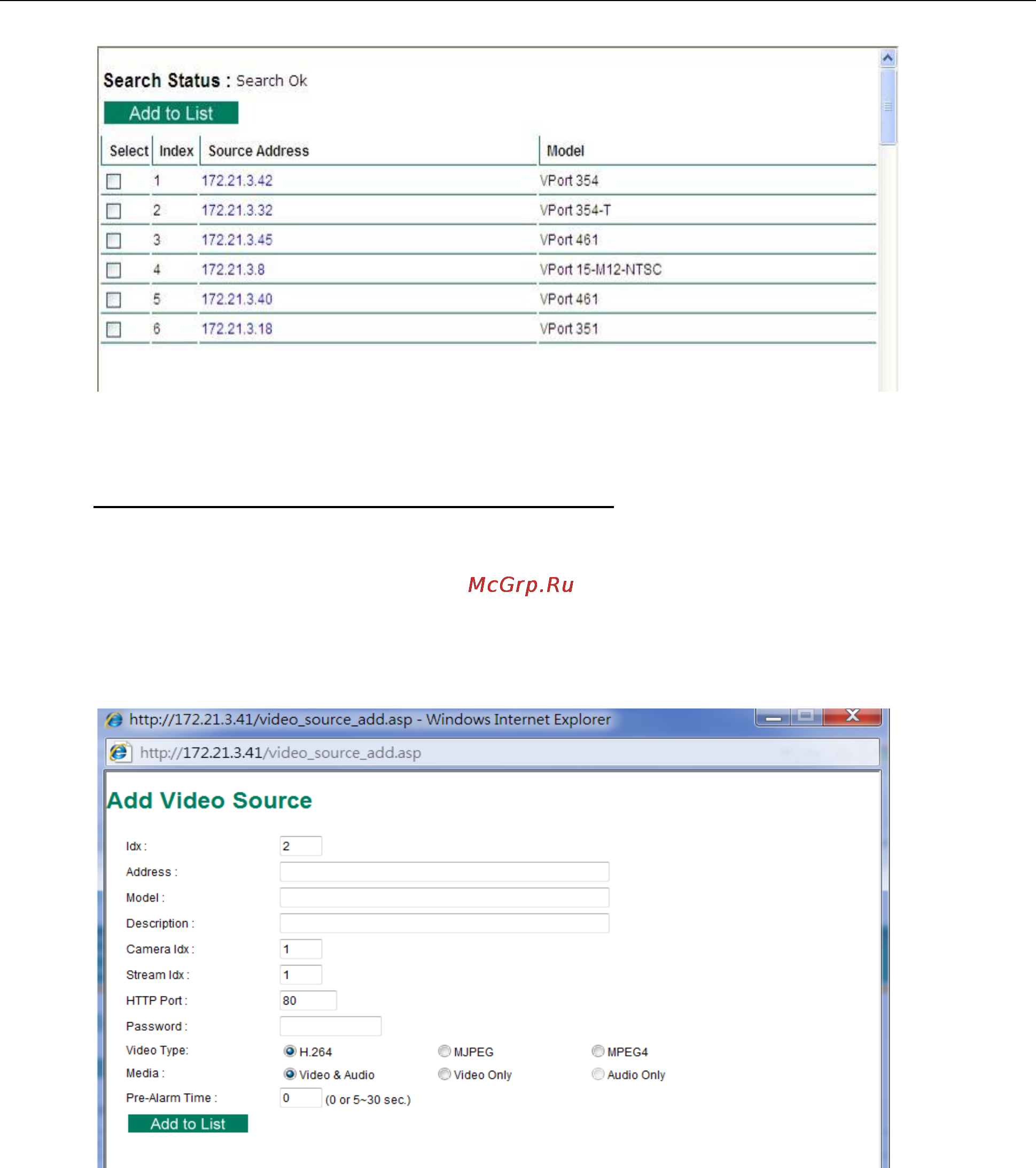

Step 2: Check the Select box of the VPort product you want to add, and click on the Add to List button to add

the selected VPort to the video source list.

Using the Manual Configuration to Add a Video Source

Click on the Add to list button to add the video source manually, and a window will pop up. Entering the related

information, including Idx (video source index), Address (IP address), Model (VPort’s model name),

Description (if necessary), Camera Idx (camera channel number), Stream Idx (stream number), HTTP port,

Password (the admin’s password), Video Type (compression standard), media (video& audio, video only, audio

only) and Pre-alarm Time (the time period of pre-alarm video record) , of this video source, and then click on

Add to list to add this video source to the video source list

Removing a Video Source

To remove a video source from the video source list, the Administrator needs to select the video source by

checking the Select box of this video source, and click on Remove Select button to remove it.

Modifying a Video Source

To modify a video source,

Step 1: Select the video source by checking its Select box.

Step 2: Click on Modify button, then this video source’s configuration page will pop up.
