Moxa MxNVR-IA8 System Configuration
4-20
Alarm

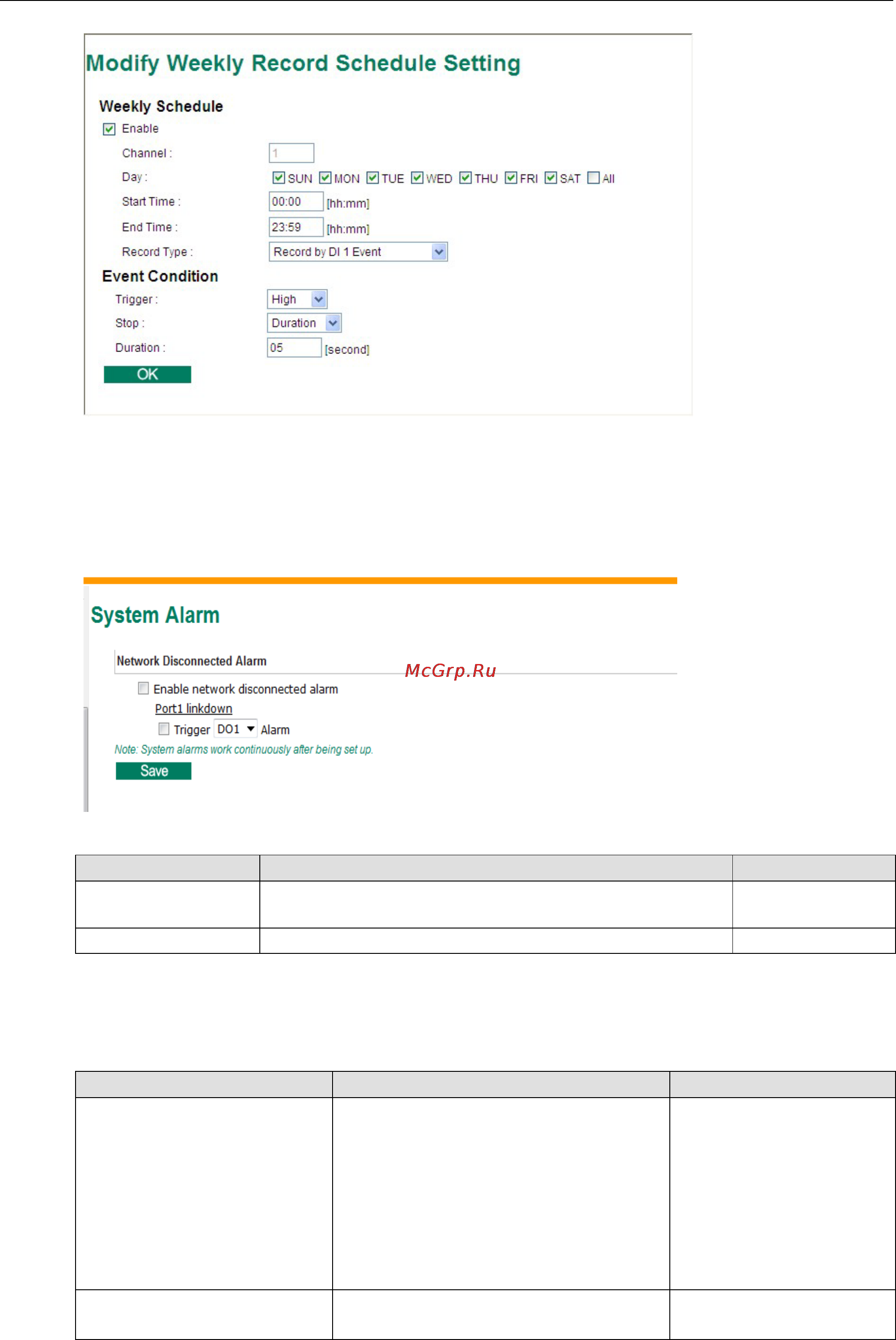

System Alarm
Network Disconnected Alarm
Setting Description Default
Enable network
disconnected alarm
Enable or disable network disconnected alarm. Disable
Trigger DO alarm Enable or disable the triggering of DO1 or DO2 Disable
Event Alarm
Four kinds of event alarm are provided by the VPort for building an intelligent video surveillance system.
Alarm Type Triggered Condition Triggered Action
Digital Inputs DI 1
DI 2
DI3
DI4
DI5
DI6
1.DO
2.HTTP Event Server
CGI Event The CGI trigger message 1.DO
2.HTTP Event Server
