Loewe Spheros 20 [10/32] Switching on for the first time
![Loewe Spheros 20 [10/32] Switching on for the first time](/views2/1020639/page10/bga.png)
10
➝

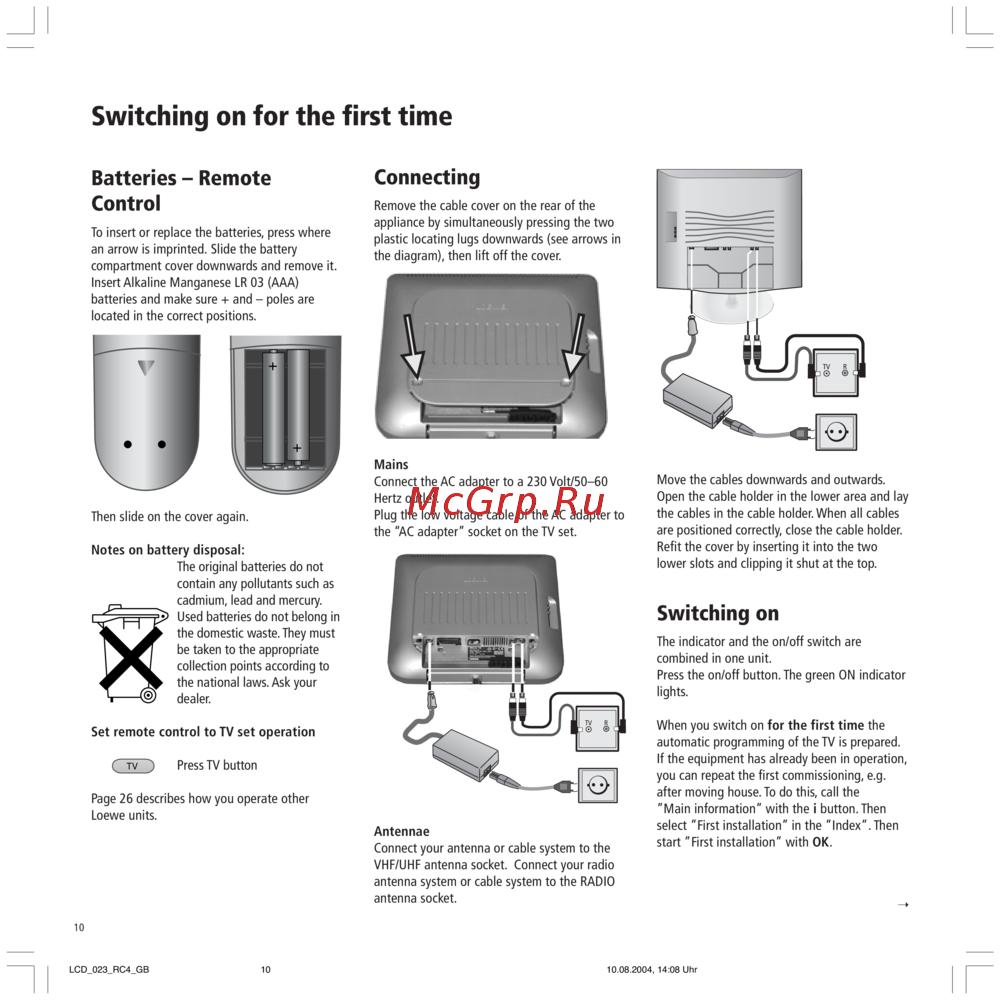

Switching on for the first time
Batteries – Remote
Control
To insert or replace the batteries, press where
an arrow is imprinted. Slide the battery
compartment cover downwards and remove it.
Insert Alkaline Manganese LR 03 (AAA)
batteries and make sure + and – poles are
located in the correct positions.
Then slide on the cover again.
Notes on battery disposal:
The original batteries do not
contain any pollutants such as
cadmium, lead and mercury.
Used batteries do not belong in
the domestic waste. They must
be taken to the appropriate
collection points according to
the national laws. Ask your
dealer.
Set remote control to TV set operation
Press TV button
Page 26 describes how you operate other
Loewe units.
Connecting
Remove the cable cover on the rear of the
appliance by simultaneously pressing the two
plastic locating lugs downwards (see arrows in
the diagram), then lift off the cover.
Antennae
Connect your antenna or cable system to the
VHF/UHF antenna socket. Connect your radio
antenna system or cable system to the RADIO
antenna socket.
Move the cables downwards and outwards.
Open the cable holder in the lower area and lay
the cables in the cable holder. When all cables
are positioned correctly, close the cable holder.
Refit the cover by inserting it into the two
lower slots and clipping it shut at the top.
Switching on
The indicator and the on/off switch are
combined in one unit.
Press the on/off button. The green ON indicator
lights.
When you switch on for the first time the
automatic programming of the TV is prepared.
If the equipment has already been in operation,
you can repeat the first commissioning, e.g.
after moving house. To do this, call the
”Main information” with the i button. Then
select ”First installation” in the ”Index”. Then
start ”First installation” with OK.
Mains
Connect the AC adapter to a 230 Volt/50–60
Hertz outlet.
Plug the low voltage cable of the AC adapter to
the “AC adapter” socket on the TV set.
TV
R
TV
R
+
+
TV
LCD_023_RC4_GB 10.08.2004, 14:08 Uhr10
