6

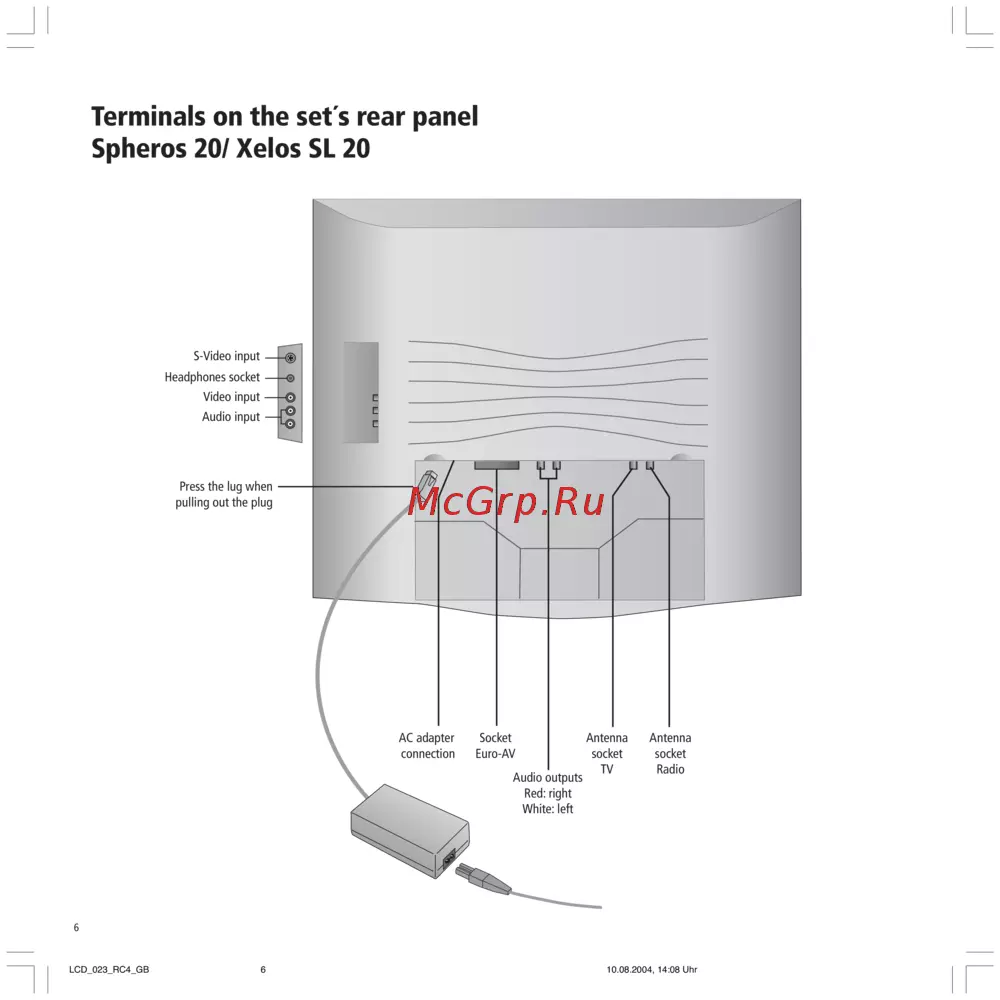

Terminals on the set´s rear panel
Spheros 20/ Xelos SL 20
Press the lug when
pulling out the plug
AC adapter
connection
Socket
Euro-AV
Audio outputs
Red: right
White: left
Antenna
socket
TV
Antenna
socket
Radio
S-Video input
Video input
Audio input
Headphones socket
LCD_023_RC4_GB 10.08.2004, 14:08 Uhr6
