4

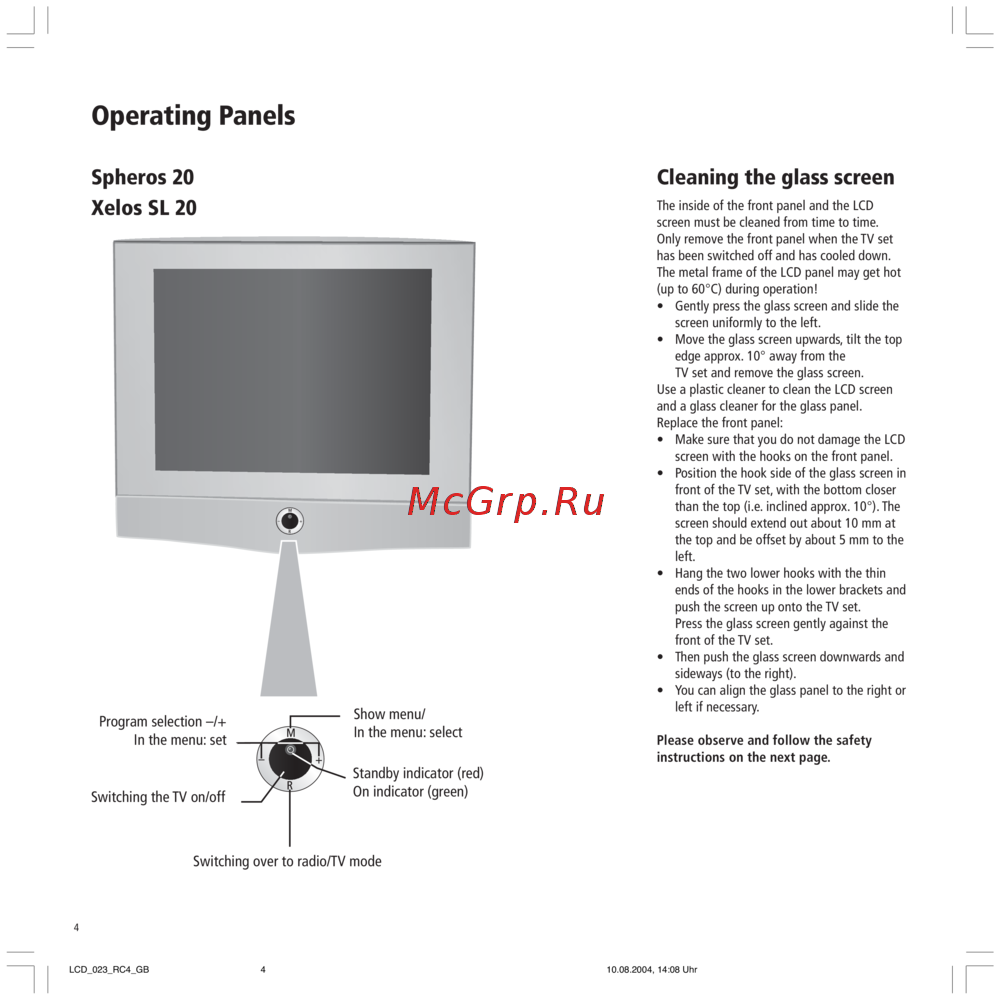

Operating Panels
Spheros 20
Xelos SL 20
Show menu/
In the menu: select
Standby indicator (red)
On indicator (green)
Switching over to radio/TV mode
Program selection –/+
In the menu: set
Switching the TV on/off
Cleaning the glass screen
The inside of the front panel and the LCD
screen must be cleaned from time to time.
Only remove the front panel when the TV set
has been switched off and has cooled down.
The metal frame of the LCD panel may get hot
(up to 60°C) during operation!
• Gently press the glass screen and slide the
screen uniformly to the left.
• Move the glass screen upwards, tilt the top
edge approx. 10° away from the
TV set and remove the glass screen.
Use a plastic cleaner to clean the LCD screen
and a glass cleaner for the glass panel.
Replace the front panel:
• Make sure that you do not damage the LCD
screen with the hooks on the front panel.
•Position the hook side of the glass screen in
front of the TV set, with the bottom closer
than the top (i.e. inclined approx. 10°). The
screen should extend out about 10 mm at
the top and be offset by about 5 mm to the
left.
• Hang the two lower hooks with the thin
ends of the hooks in the lower brackets and
push the screen up onto the TV set.
Press the glass screen gently against the
front of the TV set.
•Then push the glass screen downwards and
sideways (to the right).
•You can align the glass panel to the right or
left if necessary.
Please observe and follow the safety
instructions on the next page.
LCD_023_RC4_GB 10.08.2004, 14:08 Uhr4
