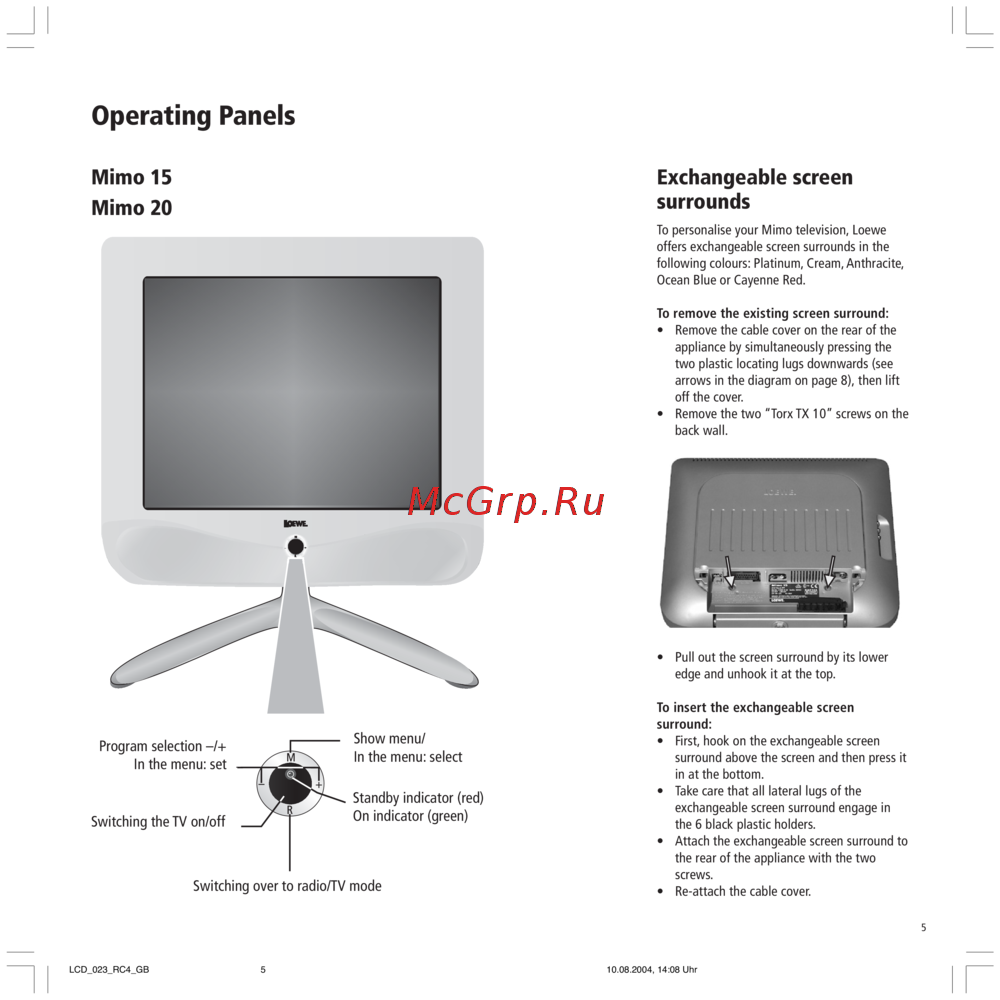

Operating Panels

Show menu/

In the menu: select

Standby indicator (red)

On indicator (green)

Switching over to radio/TV mode

Program selection –/+

In the menu: set

Switching the TV on/off

Exchangeable screen

surrounds

To personalise your Mimo television, Loewe

offers exchangeable screen surrounds in the

following colours: Platinum, Cream, Anthracite,

Ocean Blue or Cayenne Red.

To remove the existing screen surround:

• Remove the cable cover on the rear of the

appliance by simultaneously pressing the

two plastic locating lugs downwards (see

arrows in the diagram on page 8), then lift

off the cover.

• Remove the two “Torx TX 10” screws on the

back wall.

• Pull out the screen surround by its lower

edge and unhook it at the top.

To insert the exchangeable screen

surround:

•First, hook on the exchangeable screen

surround above the screen and then press it

in at the bottom.

•Take care that all lateral lugs of the

exchangeable screen surround engage in

the 6 black plastic holders.

• Attach the exchangeable screen surround to

the rear of the appliance with the two

screws.

• Re-attach the cable cover.

Mimo 15

Mimo 20
