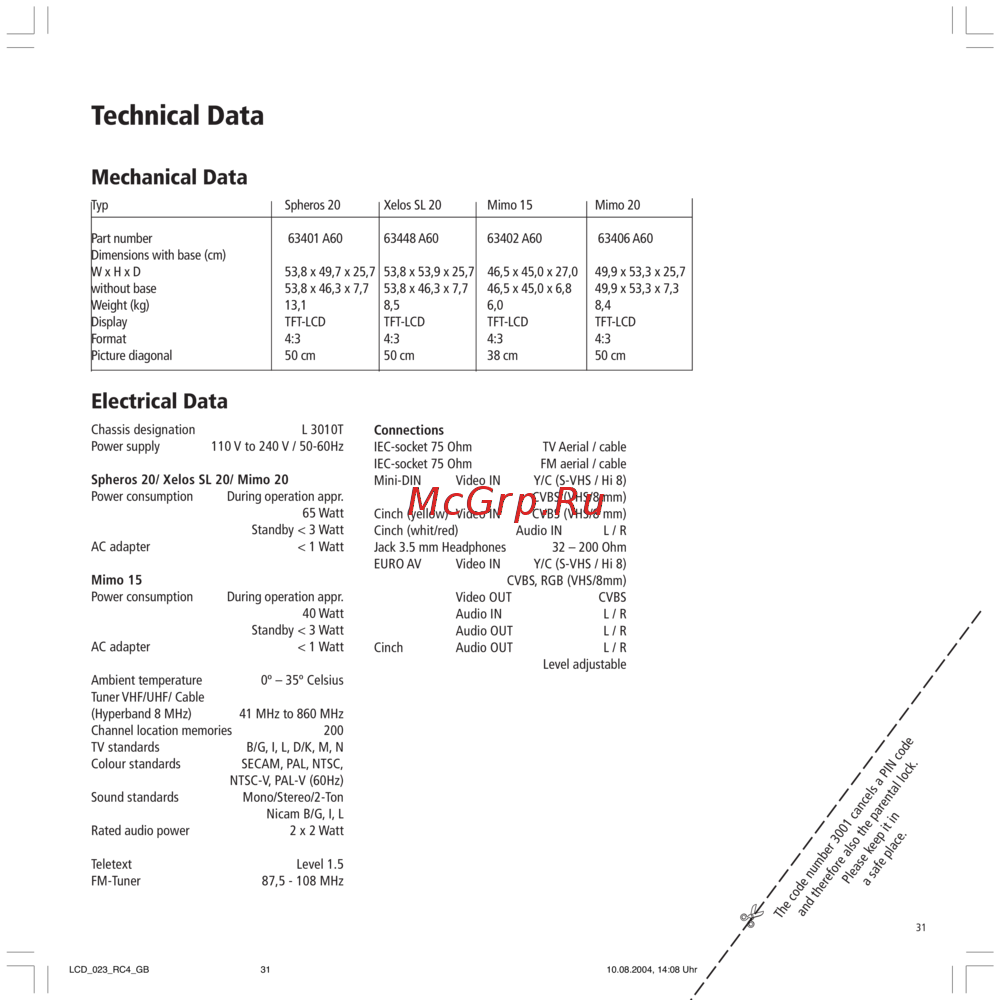

Technical Data
Mechanical Data
Electrical Data
Chassis designation L 3010T
Power supply 110 V to 240 V / 50-60Hz
Spheros 20/ Xelos SL 20/ Mimo 20
Power consumption During operation appr.
65 Watt
Standby < 3 Watt
AC adapter < 1 Watt
Mimo 15
Power consumption During operation appr.
40 Watt
Standby < 3 Watt
AC adapter < 1 Watt
Ambient temperature 0º – 35º Celsius
Tuner VHF/UHF/ Cable
(Hyperband 8 MHz) 41 MHz to 860 MHz
Channel location memories 200
TV standards B/G, I, L, D/K, M, N
Colour standards SECAM, PAL, NTSC,
NTSC-V, PAL-V (60Hz)
Sound standards Mono/Stereo/2-Ton
Nicam B/G, I, L
Rated audio power 2 x 2 Watt
Teletext Level 1.5
FM-Tuner 87,5 - 108 MHz
Connections
IEC-socket 75 Ohm TV Aerial / cable
IEC-socket 75 Ohm FM aerial / cable
Mini-DIN Video IN Y/C (S-VHS / Hi 8)
CVBS (VHS/8 mm)
Cinch (yellow) Video IN CVBS (VHS/8 mm)
Cinch (whit/red) Audio IN L / R
Jack 3.5 mm Headphones 32 – 200 Ohm
EURO AV Video IN Y/C (S-VHS / Hi 8)
CVBS, RGB (VHS/8mm)
Video OUT CVBS
Audio IN L / R
Audio OUT L / R
Cinch Audio OUT L / R
Level adjustable
Typ Spheros 20 Xelos SL 20 Mimo 15 Mimo 20
Part number 63401 A60 63448 A60 63402 A60 63406 A60
Dimensions with base (cm)
W x H x D 53,8 x 49,7 x 25,7 53,8 x 53,9 x 25,7 46,5 x 45,0 x 27,0 49,9 x 53,3 x 25,7
without base 53,8 x 46,3 x 7,7 53,8 x 46,3 x 7,7 46,5 x 45,0 x 6,8 49,9 x 53,3 x 7,3
Weight (kg) 13,1 8,5 6,0 8,4
Display TFT-LCD TFT-LCD TFT-LCD TFT-LCD
Format 4:3 4:3 4:3 4:3
Picture diagonal 50 cm 50 cm 38 cm 50 cm
✄
The code number 3001 cancels a PIN code
and therefore also the parental lock.
Please keep it in
a safe place.
