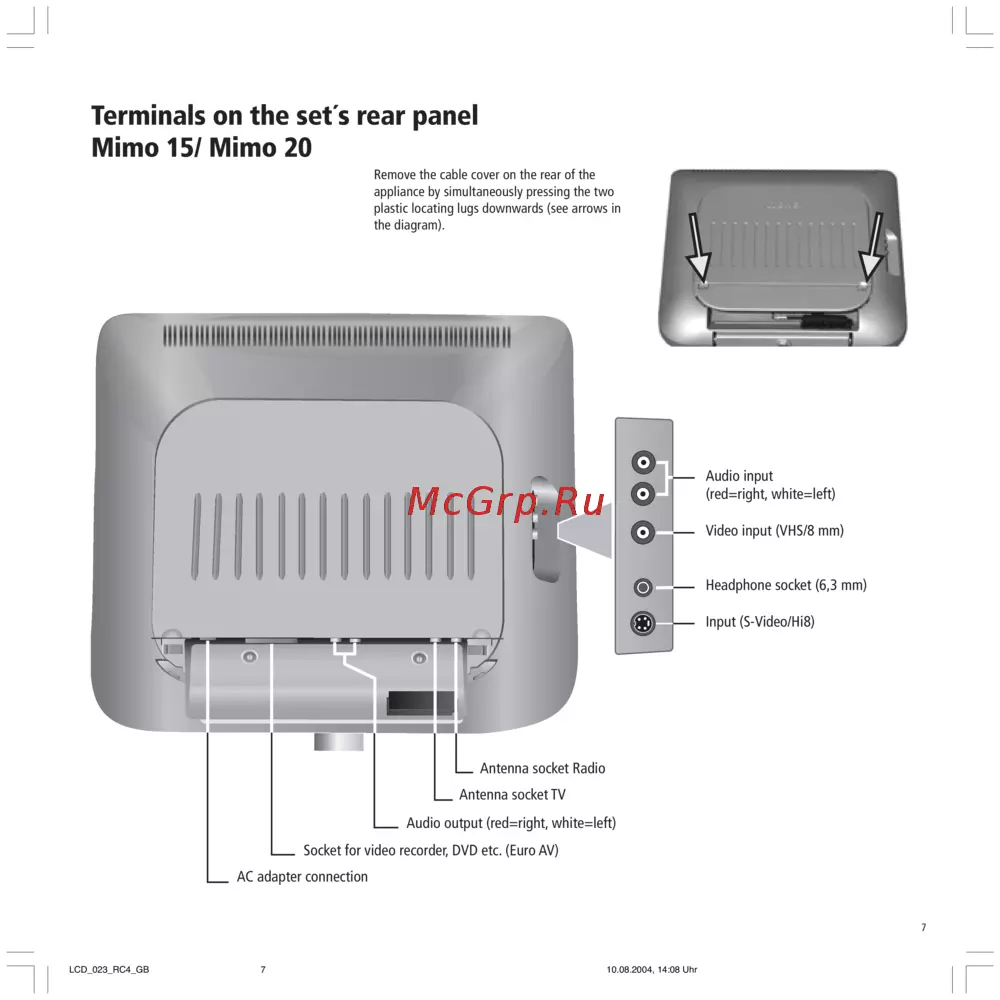

Terminals on the set´s rear panel
Mimo 15/ Mimo 20
Remove the cable cover on the rear of the
appliance by simultaneously pressing the two
plastic locating lugs downwards (see arrows in
the diagram).
Audio input
(red=right, white=left)
Video input (VHS/8 mm)
Headphone socket (6,3 mm)
Input (S-Video/Hi8)
Antenna socket Radio
Antenna socket TV
Audio output (red=right, white=left)
Socket for video recorder, DVD etc. (Euro AV)
AC adapter connection
