Loewe Tremo [10/18] Connection
![Loewe Tremo [10/18] Connection](/views2/1020647/page10/bga.png)
10
Connection
Connect the cubic socket on the DVD Preceiver to
the ”Master” cubic socket on the Tremo
subwoofer. Use the cubic plug cable provided
with the DVD Preceiver Auro (2-wire cable). Plug
the white plug (without kink protection) into the
cubic socket on the subwoofer.
If the Loewe TV speakers as of chassis MediaPlus
Q2500 are used for center reproduction, connect
the cubic socket on the TV with the ”Slave” cubic
socket on the subwoofer using the cubic plug
cable. Use the cubic plug cable provided with the
Tremo speaker system. Plug the white plug (with-
out kink protection) into the cubic socket on the
subwoofer. Set the ”Center to” switch on the
subwoofer to ”TV”.
If, on the other hand, you want to use the exter-
nal center speaker, do not connect the Slave to
the TV.
Set the ”Center to” switch on the subwoofer to
”Sat”.
Connect the TV set (Euro AV socket 3) to the DVD
Preceiver with the Euro AV cable.
Connect the TV (Service socket) to the L-Link
socket of the DVD Preceiver with the TV-L-Link
cable (provided with the DVD Preceiver).
This ensures that the Tremo speaker system is
switched on but the TV stays switched off in the
case of radio or CD playback from the DVD
Preceiver.
If the TV set is equipped with a DVB module with
Digital OUT terminal and/or the DIS module,
connect the digital output of the TV to the DIGI-
TAL IN input of the Auro system by a cinch cable
(if a DVB module with Digital-OUT and a DIS
module are available, use the DIS connection).
This ensures that the digital audio signal is fed to
the DVD Preceiver for decoding.
How to connect the satellite speakers is de-
scribed on page 14.
Settings on the DVD Preceiver
Auro 8116DT
In the DVD menu under Settings select ”Tremo”
as the speaker system, set the listener/speaker
distances and level the loudspeakers. See also
the DVD Preceiver manual (page 12 and 13).
ON
Line IN
Power OUT
OFF
Bass Intensity
Center to
System connector
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
Slave
Master
R
R
L
C
L
Phase
Min. Max.
TV
Sat
0 180
PREOUT
FR
FL
SL SR SUB
C
TO TV
TV
EXT
12V/15mA
L-Link
AV2/RGB
AV3
AV1
SAT
RC5/RC6
SAT A/D
AUDIO IN
SERVICE
AUDIO OUT
VHF/UHF
R
IR
L
SUBWOOFER
STAND
VGA
CTRL
AM GND FM (75 Ω)
LL
RR
AUX1 IN
DIGITAL
IN
DIGITAL
OUT
AUX OUT AUX 2
DIG OUT
DIG IN
1
2

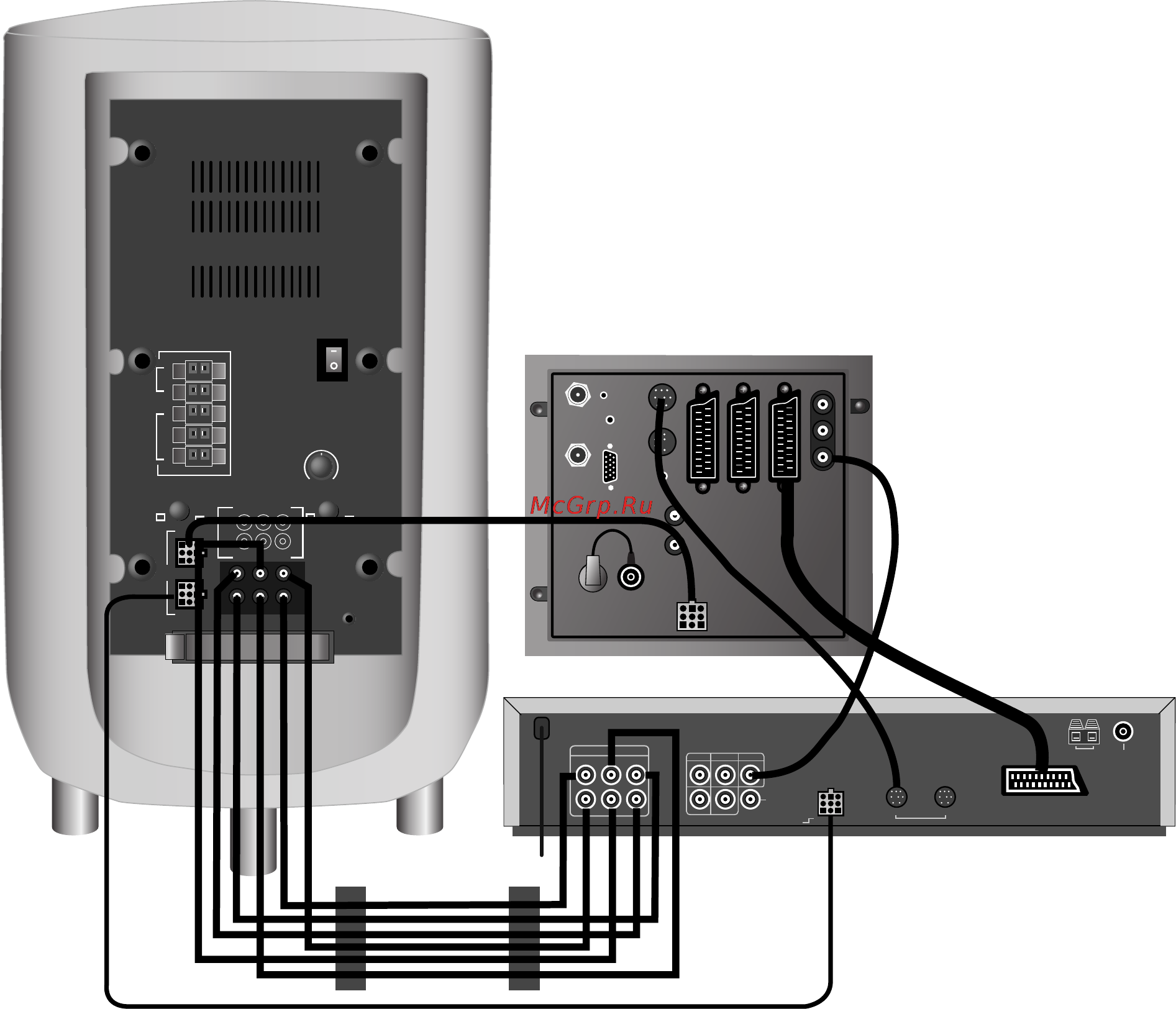

... to Loewe DVD Preceiver Auro 8116 DT
with Loewe TV set (from Loewe TV
MediaPlus Q2500, software 6.x)
If you use the Loewe DVD Preceiver in connec-
tion with a Loewe TV set, connect the Tremo
speaker system to the audio outputs of the DVD
Preceiver. See the instructions for laying the
cables on page 6.
BA31673_002Tremo_GB_5 31.08.2004, 13:18 Uhr10
