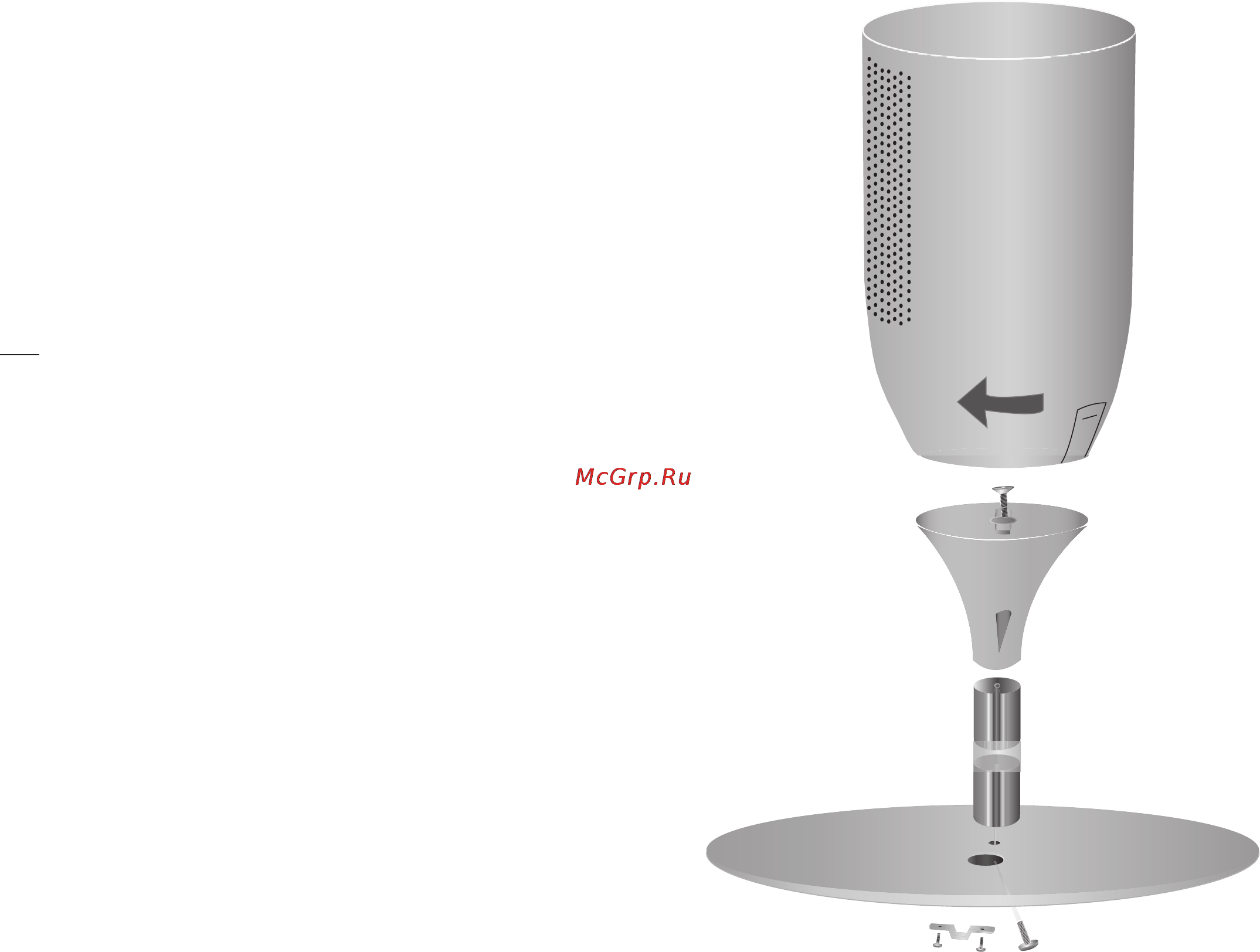

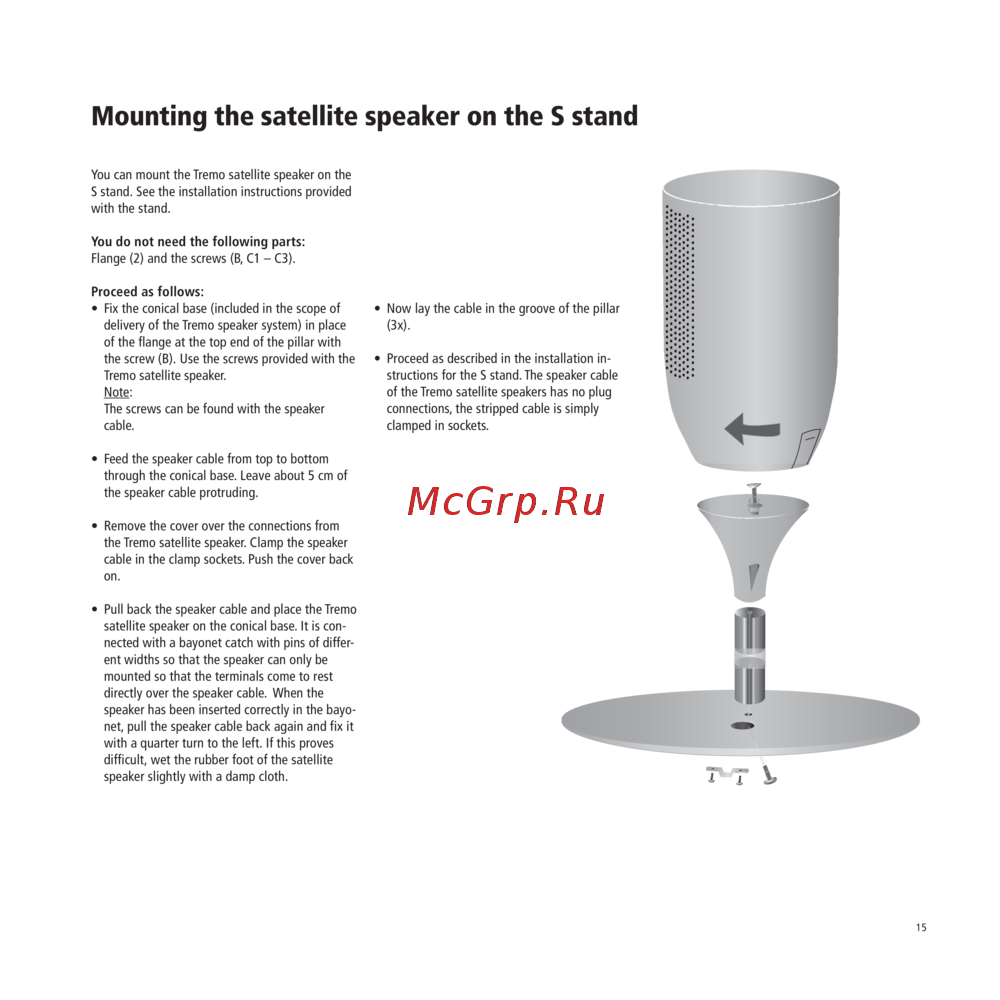

Mounting the satellite speaker on the S stand

You can mount the Tremo satellite speaker on the

S stand. See the installation instructions provided

with the stand.

You do not need the following parts:

Flange (2) and the screws (B, C1 – C3).

Proceed as follows:

•Fix the conical base (included in the scope of

delivery of the Tremo speaker system) in place

of the flange at the top end of the pillar with

the screw (B). Use the screws provided with the

Tremo satellite speaker.

Note:

The screws can be found with the speaker

cable.

•Feed the speaker cable from top to bottom

through the conical base. Leave about 5 cm of

the speaker cable protruding.

• Remove the cover over the connections from

the Tremo satellite speaker. Clamp the speaker

cable in the clamp sockets. Push the cover back

on.

• Pull back the speaker cable and place the Tremo

satellite speaker on the conical base. It is con-

nected with a bayonet catch with pins of differ-

ent widths so that the speaker can only be

mounted so that the terminals come to rest

directly over the speaker cable. When the

speaker has been inserted correctly in the bayo-

net, pull the speaker cable back again and fix it

with a quarter turn to the left. If this proves

difficult, wet the rubber foot of the satellite

speaker slightly with a damp cloth.

• Now lay the cable in the groove of the pillar

(3x).

• Proceed as described in the installation in-

structions for the S stand. The speaker cable

of the Tremo satellite speakers has no plug

connections, the stripped cable is simply

clamped in sockets.
