8
SYSTEM
RC5/
RC6
IR-
LINK
SUB
SERVICE
VGA
DISPLAY
PIP
UHF/VHF
AV 3
(RGB/YUV)
AV 2
(RGB)
AUDIO
IN 1
DVI
AV 1
COM DIGITAL TV
SAT
A/D
SAT
COMPONENT
IN
TVO
C
R
L
S
U
R
1
IN
2
DIGITAL
AUDIO
IN 3
R
L
R
L
R
L
AUDIO
OUT
120-240V~
50/60 Hz
OUT
AUDIO
IN 2
Y
CR/
PR
CB/
PB
ON
Line IN
Power OUT
OFF
Bass Intensity
Center to
System connector
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
Slave
Master
R
R
L
C
L
Phase
Min. Max.
TV
Sat
0 180
Masterunit
Connection

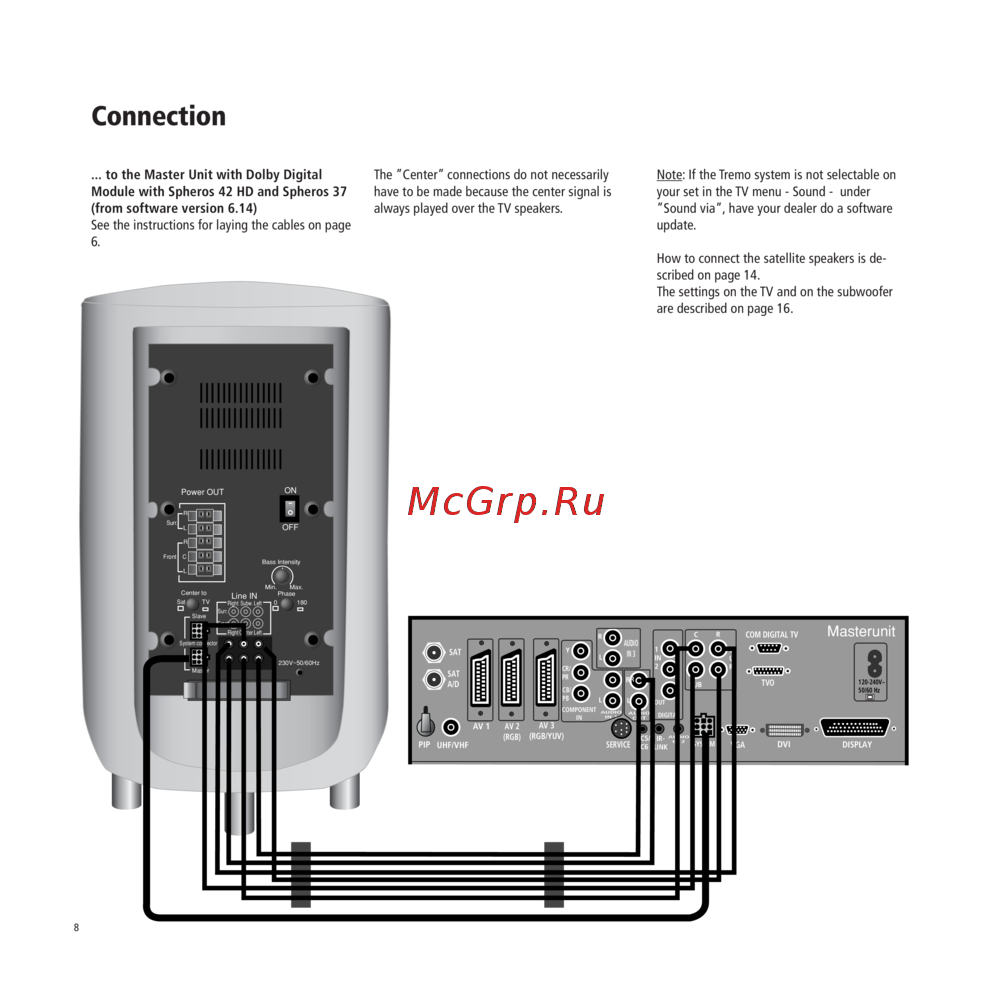

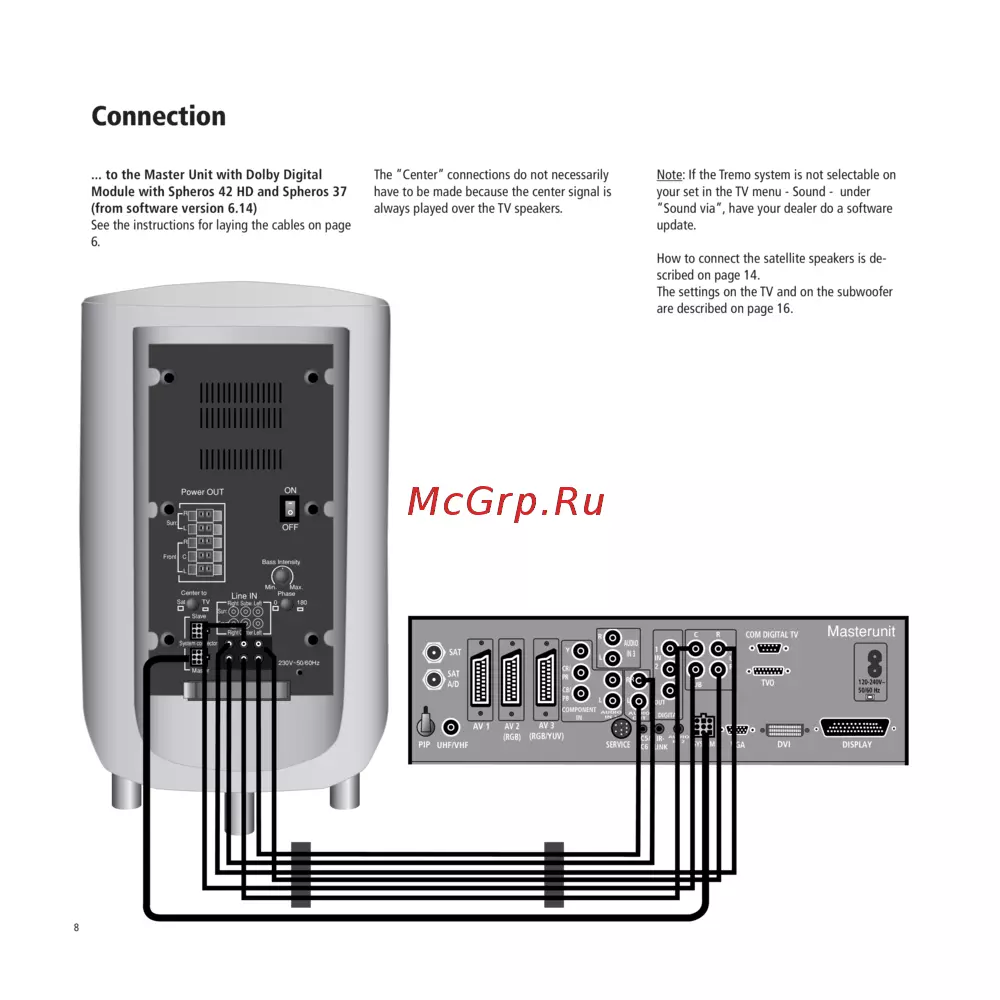

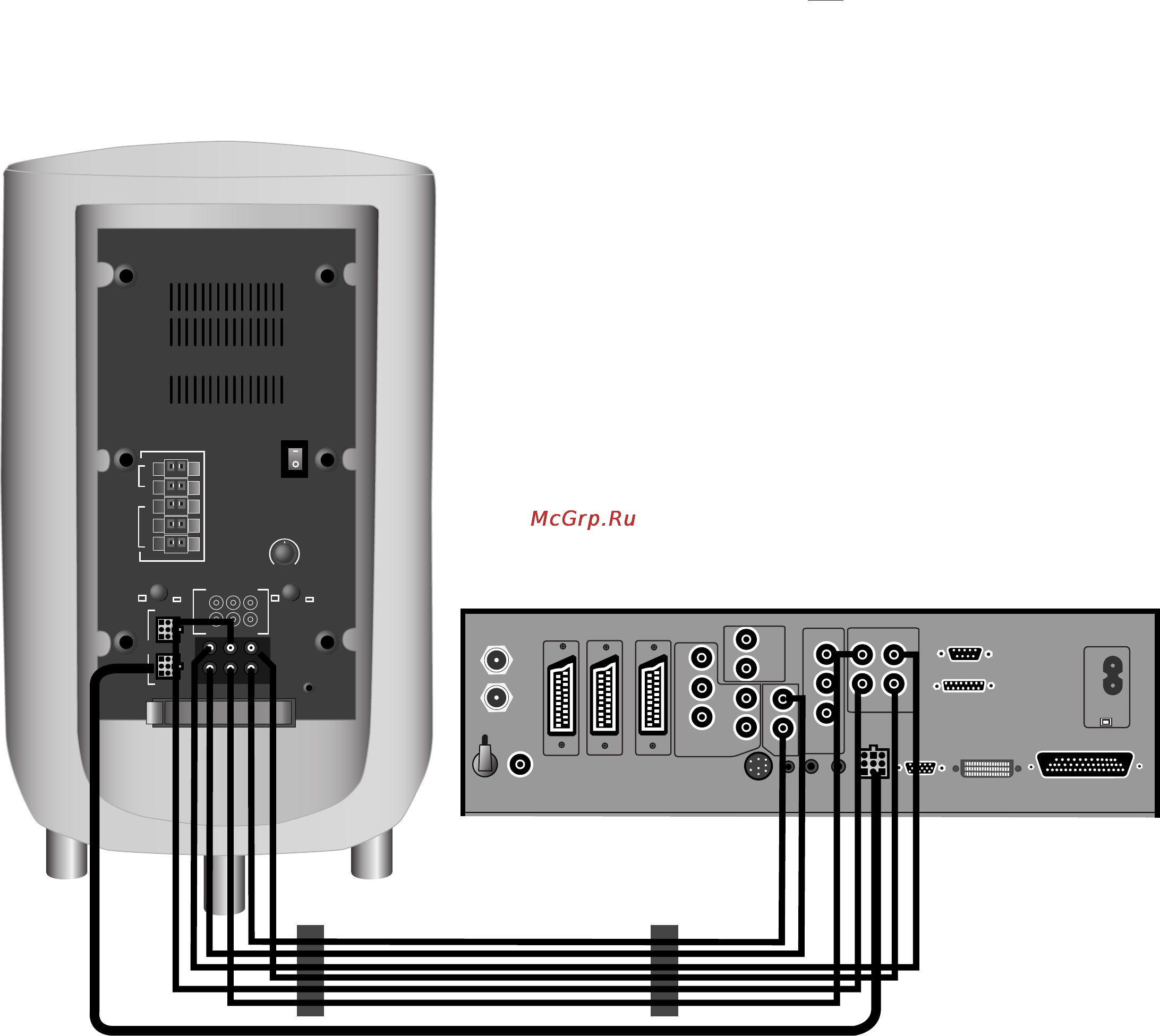

... to the Master Unit with Dolby Digital
Module with Spheros 42 HD and Spheros 37
(from software version 6.14)
See the instructions for laying the cables on page
6.
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
Note: If the Tremo system is not selectable on
your set in the TV menu - Sound - under
”Sound via”, have your dealer do a software
update.
How to connect the satellite speakers is de-
scribed on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
