Loewe Tremo [7/18] Connection
![Loewe Tremo [7/18] Connection](/views2/1020647/page7/bg7.png)
7
SUB
AV 2
(RGB)
DVI
SAT
A/D
SAT
C
R
L
S
U
R
AV 1
AV 3
(RGB/YUV)
CRTL
SYSTEM
RC5/
RC6
IR-
LINK
SERVICE
AUDIO
IN 1
COMPONENT
IN
1
IN
2
DIGITAL
AUDIO IN 3
R
L
R
L
R
L
AUDIO
OUT
OUT
Y
CR/
PR
CB/
PB
AUDIO
IN 2
PIP
UHF/VHF
ON
Line IN
Power OUT
OFF
Bass Intensity
Center to
System connector
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
Slave
Master
R
R
L
C
L
Phase
Min. Max.
TV
Sat
0 180

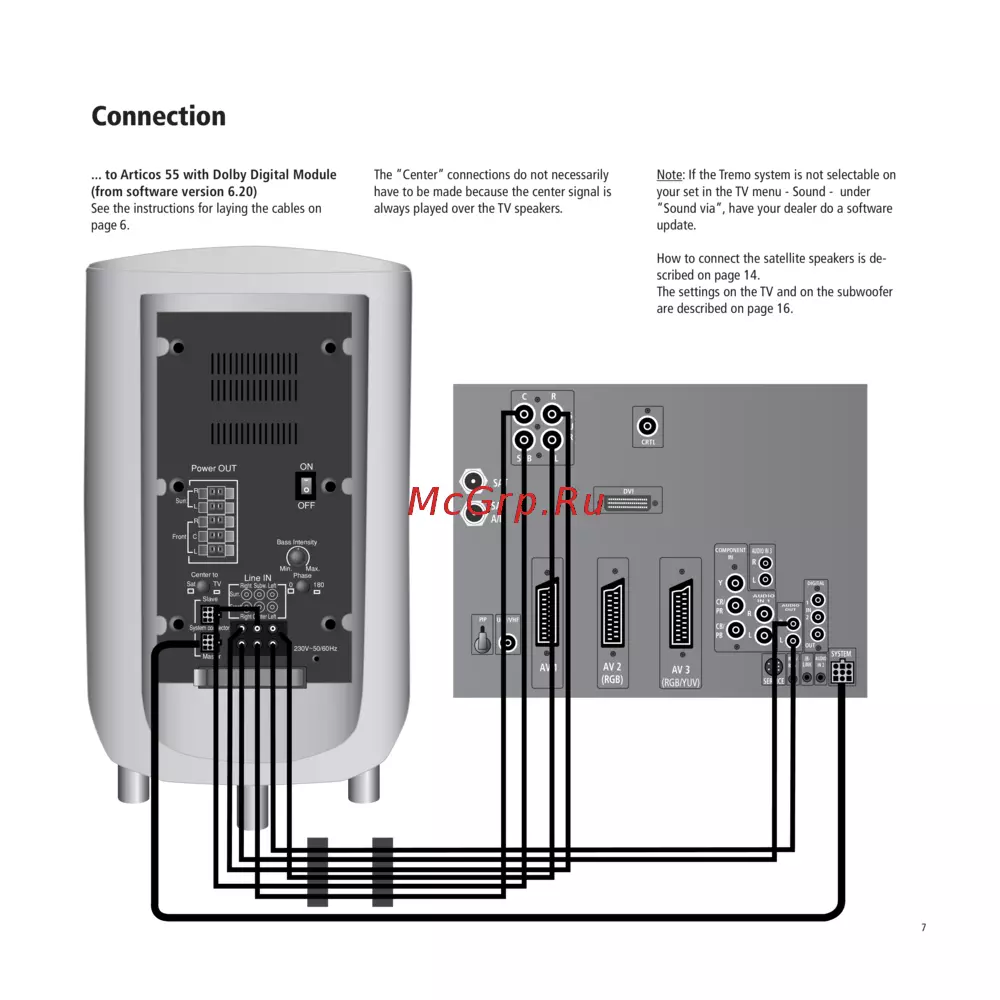

Connection
... to Articos 55 with Dolby Digital Module
(from software version 6.20)
See the instructions for laying the cables on
page 6.
Note: If the Tremo system is not selectable on
your set in the TV menu - Sound - under
”Sound via”, have your dealer do a software
update.
How to connect the satellite speakers is de-
scribed on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
BA31673_002Tremo_GB_5 31.08.2004, 13:18 Uhr7
