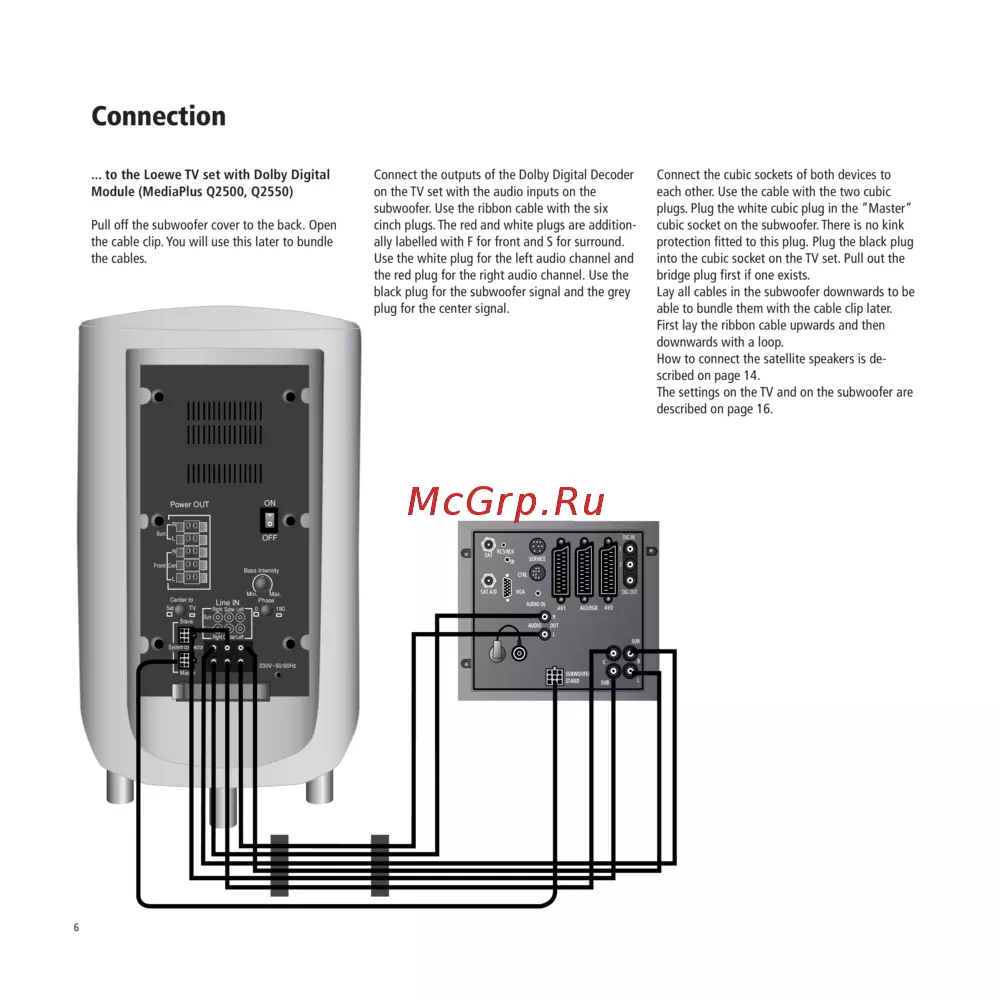

Loewe Tremo [6/18] Connection
![Loewe Tremo [6/18] Connection](/views2/1020647/page6/bg6.png)
6
Connection
Connect the outputs of the Dolby Digital Decoder
on the TV set with the audio inputs on the
subwoofer. Use the ribbon cable with the six
cinch plugs. The red and white plugs are addition-
ally labelled with F for front and S for surround.
Use the white plug for the left audio channel and
the red plug for the right audio channel. Use the
black plug for the subwoofer signal and the grey
plug for the center signal.
AV2/RGB
AV3
AV1
SAT
RC5/RC6
SAT A/D
R
SUR
DIG OUT
DIG IN
AUDIO IN
SERVICE
AUDIO OUT
VHF/UHF
R
IR
1
L
2
SUBWOOFER
STAND
VGA
SUB
L
C
CTRL
ON
Line IN
Power OUT
OFF
Bass Intensity
Center to
System connector
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
Slave
Master
R
R
L
Cen
L
Phase
Min. Max.
TV
Sat
0 180
Connect the cubic sockets of both devices to
each other. Use the cable with the two cubic
plugs. Plug the white cubic plug in the ”Master”
cubic socket on the subwoofer. There is no kink
protection fitted to this plug. Plug the black plug
into the cubic socket on the TV set. Pull out the
bridge plug first if one exists.
Lay all cables in the subwoofer downwards to be
able to bundle them with the cable clip later.
First lay the ribbon cable upwards and then
downwards with a loop.
How to connect the satellite speakers is de-
scribed on page 14.
The settings on the TV and on the subwoofer are
described on page 16.
... to the Loewe TV set with Dolby Digital
Module (MediaPlus Q2500, Q2550)
Pull off the subwoofer cover to the back. Open
the cable clip. You will use this later to bundle
the cables.
BA31673_002Tremo_GB_5 31.08.2004, 13:18 Uhr6
