Signalbox
Connection

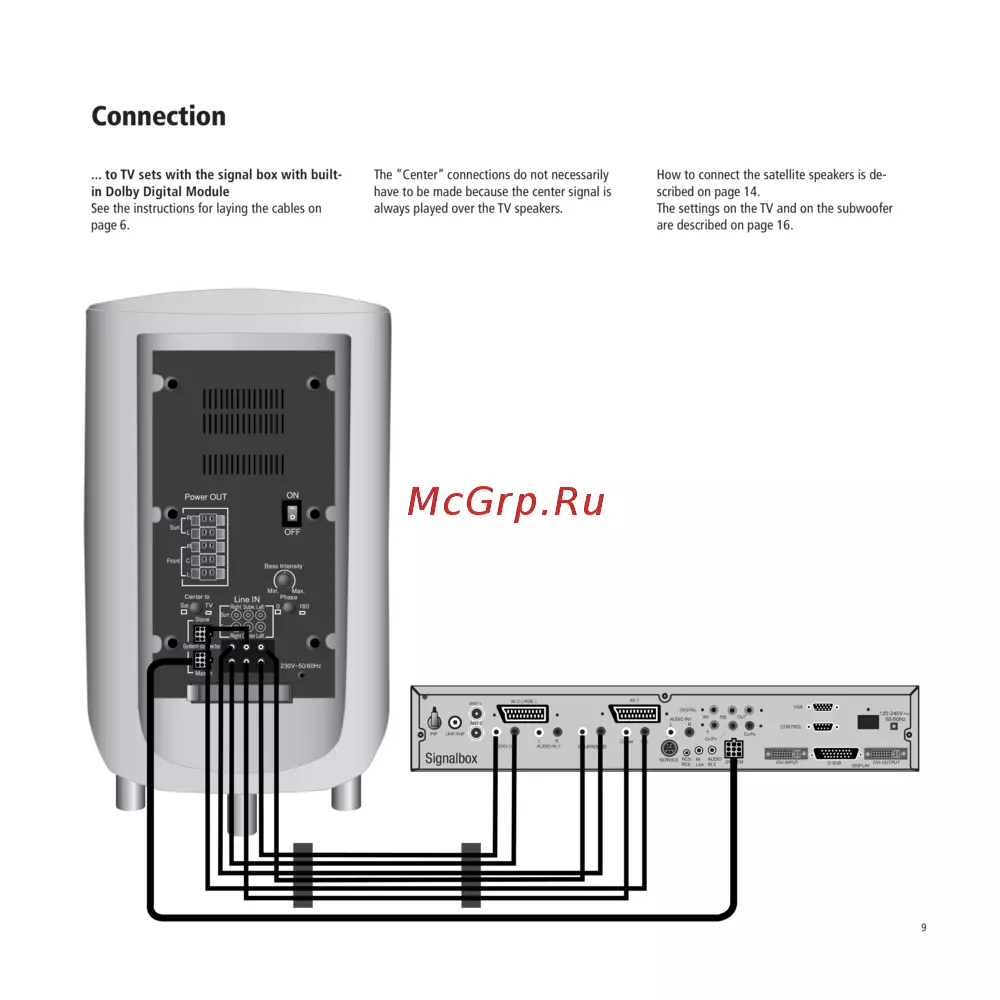

... to TV sets with the signal box with built-
in Dolby Digital Module
See the instructions for laying the cables on
page 6.
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
How to connect the satellite speakers is de-
scribed on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
