2-4 Chapter 2: Starting up

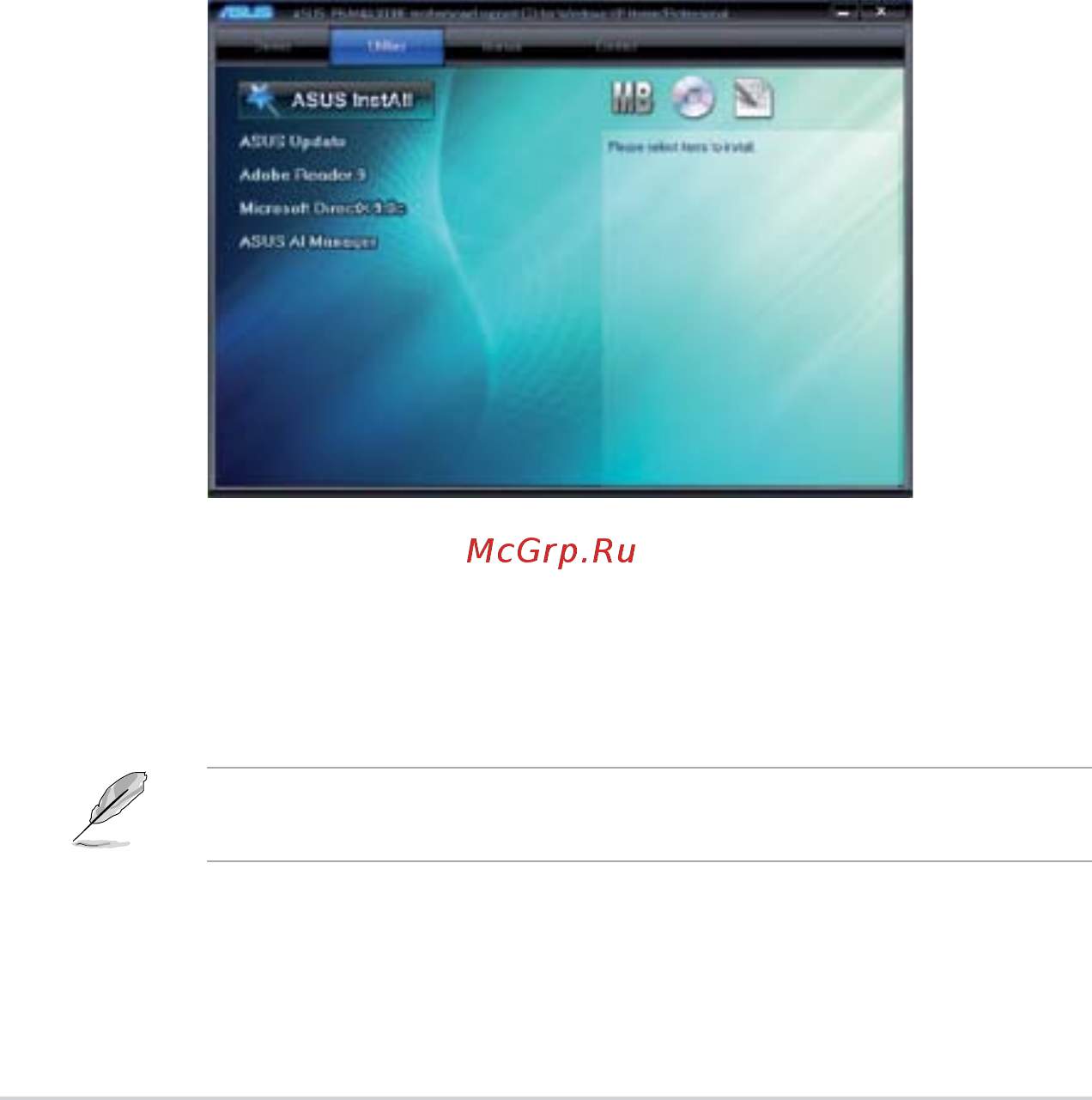

2.3.2 Utilities menu
The Utilities menu shows the applications and other software that the motherboard
supports.
ASUS InstAll
Installs all of the utilities through the Installation Wizard.
ASUS Update
Allows you to download the latest version of the BIOS from the ASUS website.
Before using the ASUS Update, make sure that you have an Internet connection
so you can connect to the ASUS website.
Adobe Reader 9
Installs the Adobe
®
Reader that allows you to open, view, and print documents in
Portable Document Format (PDF).
AMDGraphicsDriver
Installs the AMD
®
Graphics driver.
Realtek10/100/1000PCI-ELANDriver
Installs the Realtek
®
10/100/1000 PCI-E LAN driver.
AMD HDMI Driver Program
Installs the AMD
®
HDMI driver.
ASUSExpressGateInstaller
Installs the ASUS Express Gate.
