3-7ASUS P6-M4A3000E
•.
SystempowerLED(2-pinPLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep mode.
•.
HarddiskdriveactivityLED(2-pinHDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity
LED cable to this connector. The IDE LED lights up or ashes when data is
read from or written to the HDD.
• Power/Soft-offbutton(2-pinPWRBTN)
This 2-pin connector is for the system power button.
•.
Resetbutton(2-pinRESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.
5. Systempanelconnector(10-1pinF_PANEL)
This connector supports several chassis-mounted functions.

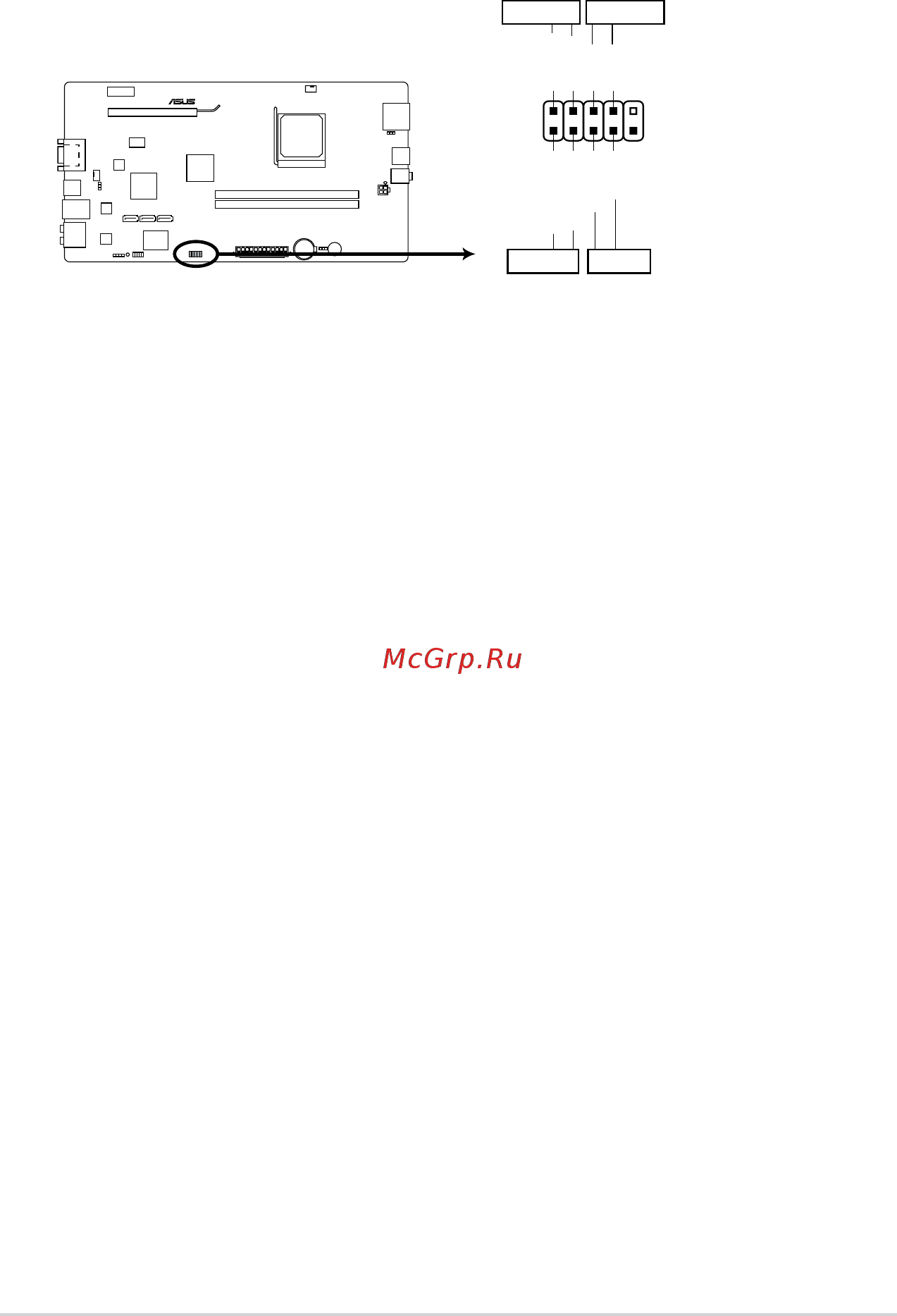

M4A76T10L DP
M4A76T10L DP System panel connector
PIN 1
PWR BTN
PLED+
PLED-
PWR
GND
IDE_LED+
IDE_LED-
Ground
Reset
F_PANEL
PWRLED
HD_LED RESET
