Tp-Link TL-MR6400 [117/142] Rule list

TL-MR6400

300Mbps Wireless N 4G LTE Router

-108-

 Egress Bandwidth - The upload speed through the WAN port.

 Ingress Bandwidth - The download speed through the WAN port.

5.15.2 Rule List

Choose menu “Bandwidth Control → Rule List”, and then you can view and configure the

Bandwidth Control rules in the screen below.

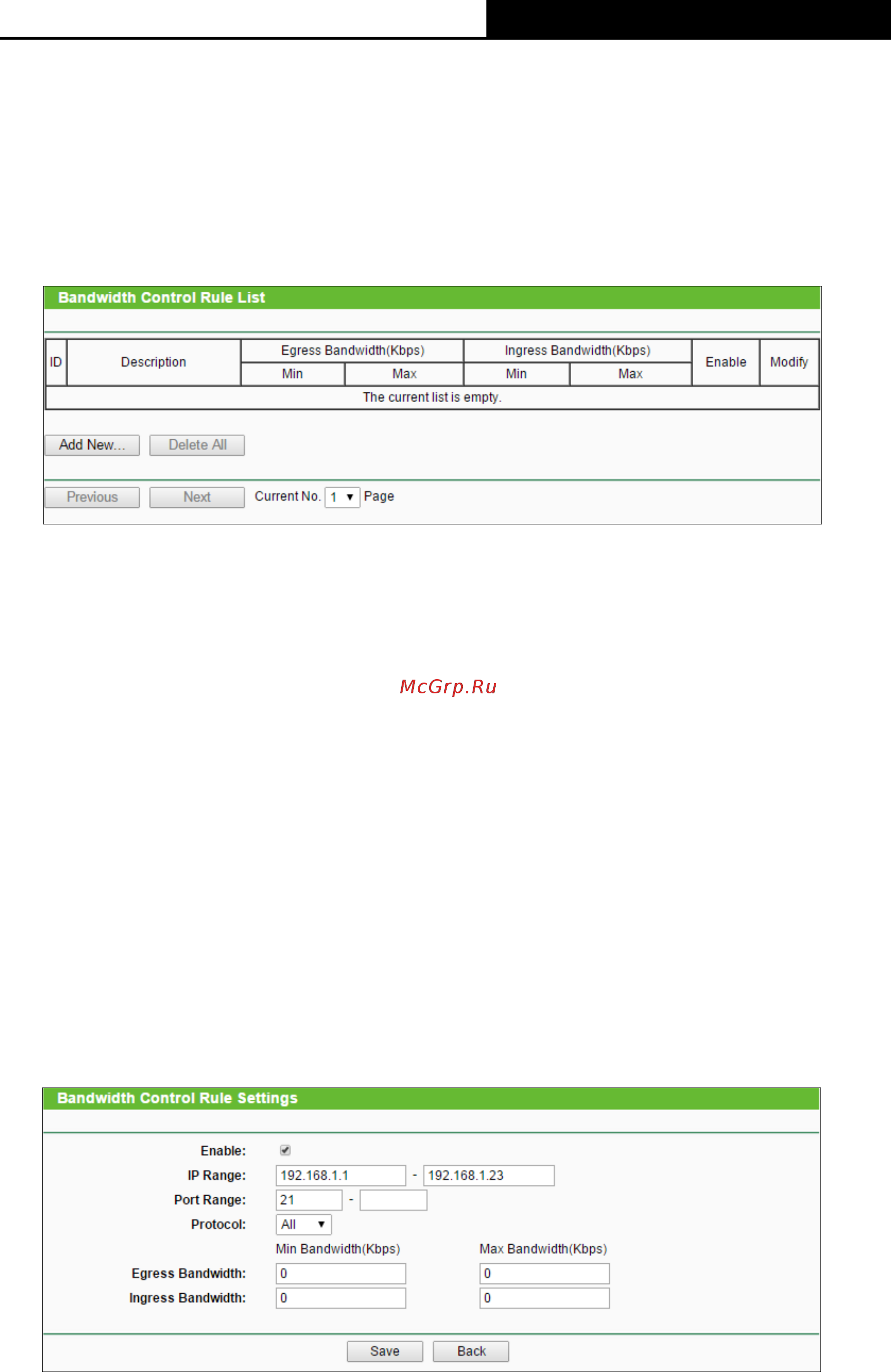

Figure 5-23 Bandwidth Control Rule List

 Description - The information of description include address range, the port range and

protocol of transport layer.

 Egress Bandwidth - The max upload speed which through the WAN port, default number

is 0.

 Ingress Bandwidth - The max download speed which through the WAN port, default

number is 0.

 Enable - Rule status, show whether the rule takes effect.

 Modify - Click Modify to edit the rule. Click Delete to delete the rule.

To add/modify a Bandwidth Control rule, follow the steps below.

1. Click Add New… shown in Figure 5-23, you will see a new screen shown in Figure 5-24.

2. Enter the information like the screen shown below.

Figure 5-24 Bandwidth Control Rule Settings

3. Click the Save button.
