Tp-Link TL-MR6400 [20/142] Standard wireless router mode

TL-MR6400

300Mbps Wireless N 4G LTE Router

-11-

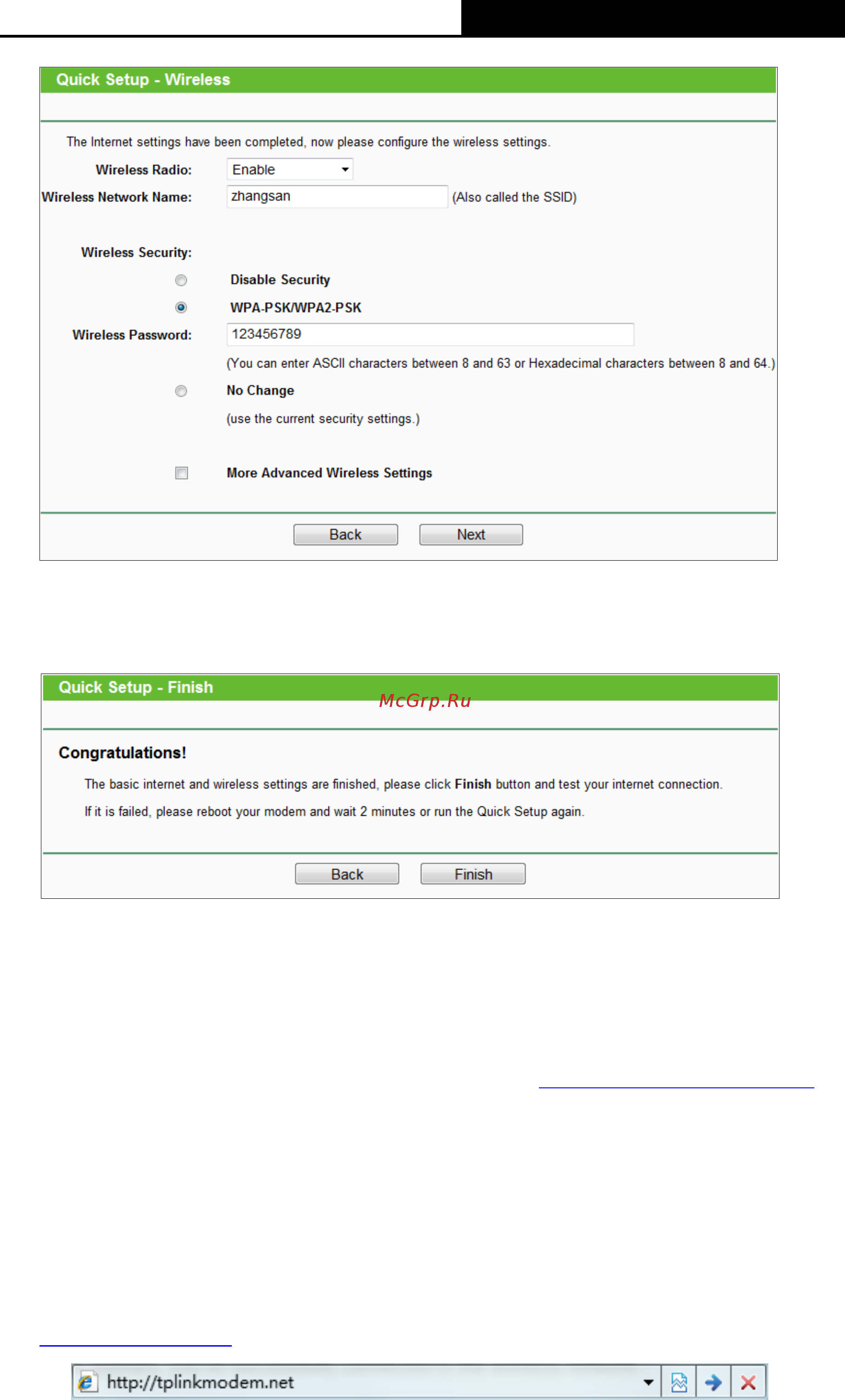

Figure 3-6 Quick Setup – Wireless

9. Click Finish to make the settings take effect.

Figure 3-7 Quick Setup – Finish

3.2 Standard Wireless Router Mode

1. Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If

you need instructions as to how to do this, please refer to Appendix B: Configuring the PC.

2. Connect your computer to the router (wired or wireless).

Wired: Connect your computer to the router's LAN port via an Ethernet cable.

Wireless: Connect wirelessly by using the SSID (network name) and Wireless Password

printed on the product label at the bottom of the router.

3. To access the configuration utility, open a web-browser and type the default address

http://tplinkmodem.net in the address field of the browser.
