Tp-Link TL-MR6400 [130/142] Statistics

TL-MR6400

300Mbps Wireless N 4G LTE Router

-121-

 Log Type - By selecting the log type, only logs of this type will be shown.

 Log Level - By selecting the log level, only logs of this level will be shown.

 Refresh - Refresh the page to show the latest log list.

 Save Log - Click to save all the logs in a txt file.

 Mail Log - Click to send an email of current logs manually according to the address and

validation information set in Mail Settings. The result will be shown in the later log soon.

 Clear Log - All the logs will be deleted from this device permanently, not just from the

page.

Click the Next button to go to the next page, or click the Previous button return to the previous

page.

5.19.11 Statistics

Choose menu “System Tools → Statistics”, and then you can view the statistics of the router,

including total traffic and current traffic of the last Packets Statistic Interval.

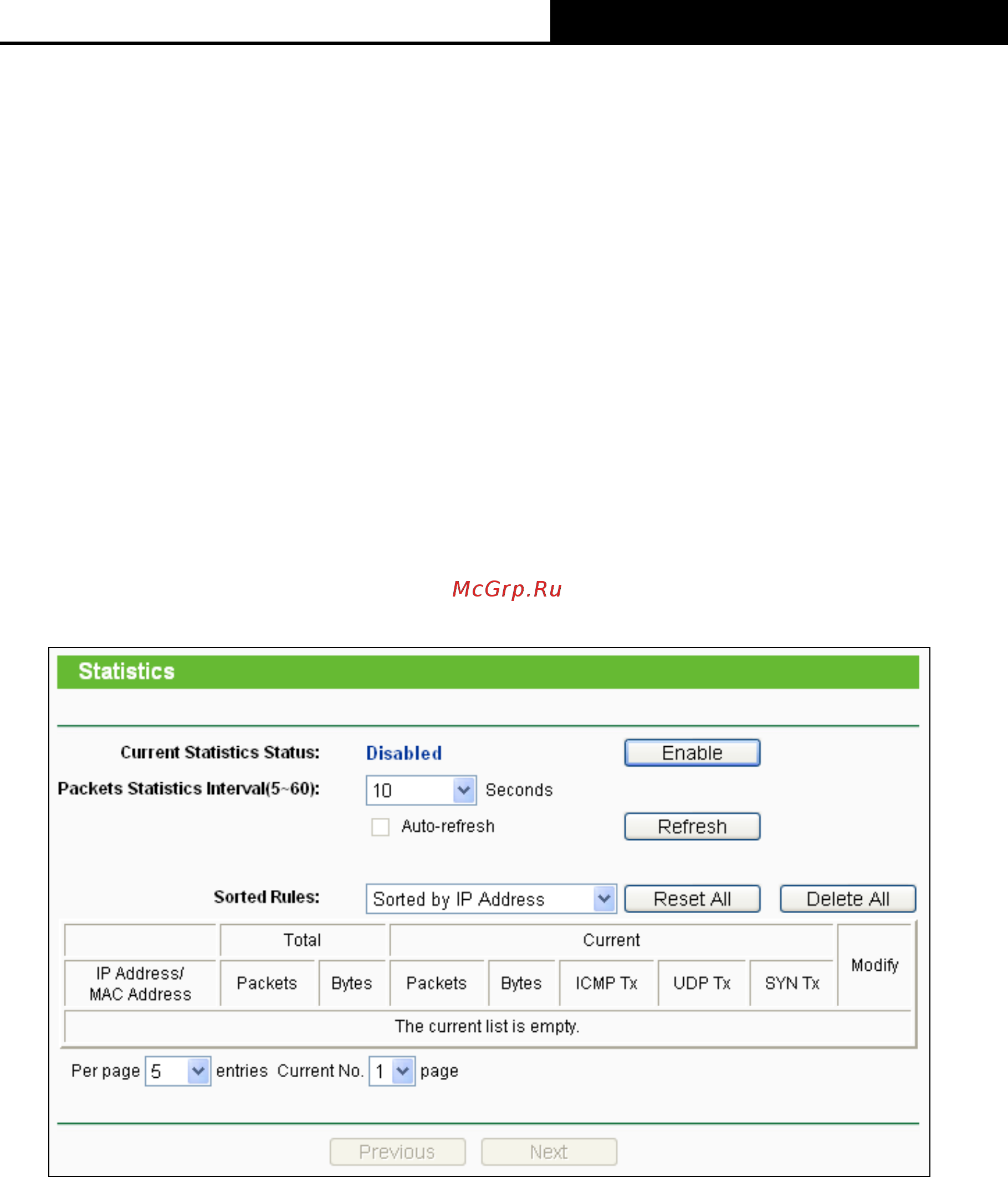

Figure 5-41 Statistics

 Current Statistics Status - Enable or Disable. The default value is disabled. To enable it,

click the Enable button. If it is disabled, the function of DoS protection in Security settings

will be disabled.

 Packets Statistics Interval (5-60) - The default value is 10. Select a value between 5 and

60 seconds in the drop-down list. The Packets Statistics interval indicates the time section

of the packets statistic.

 Sorted Rules - Choose how the displayed statistics are sorted.

Select the Auto-refresh checkbox to refresh automatically.

Click the Refresh button to refresh immediately.
