TL-MR6400

300Mbps Wireless N 4G LTE Router

-43-

4.10 DHCP

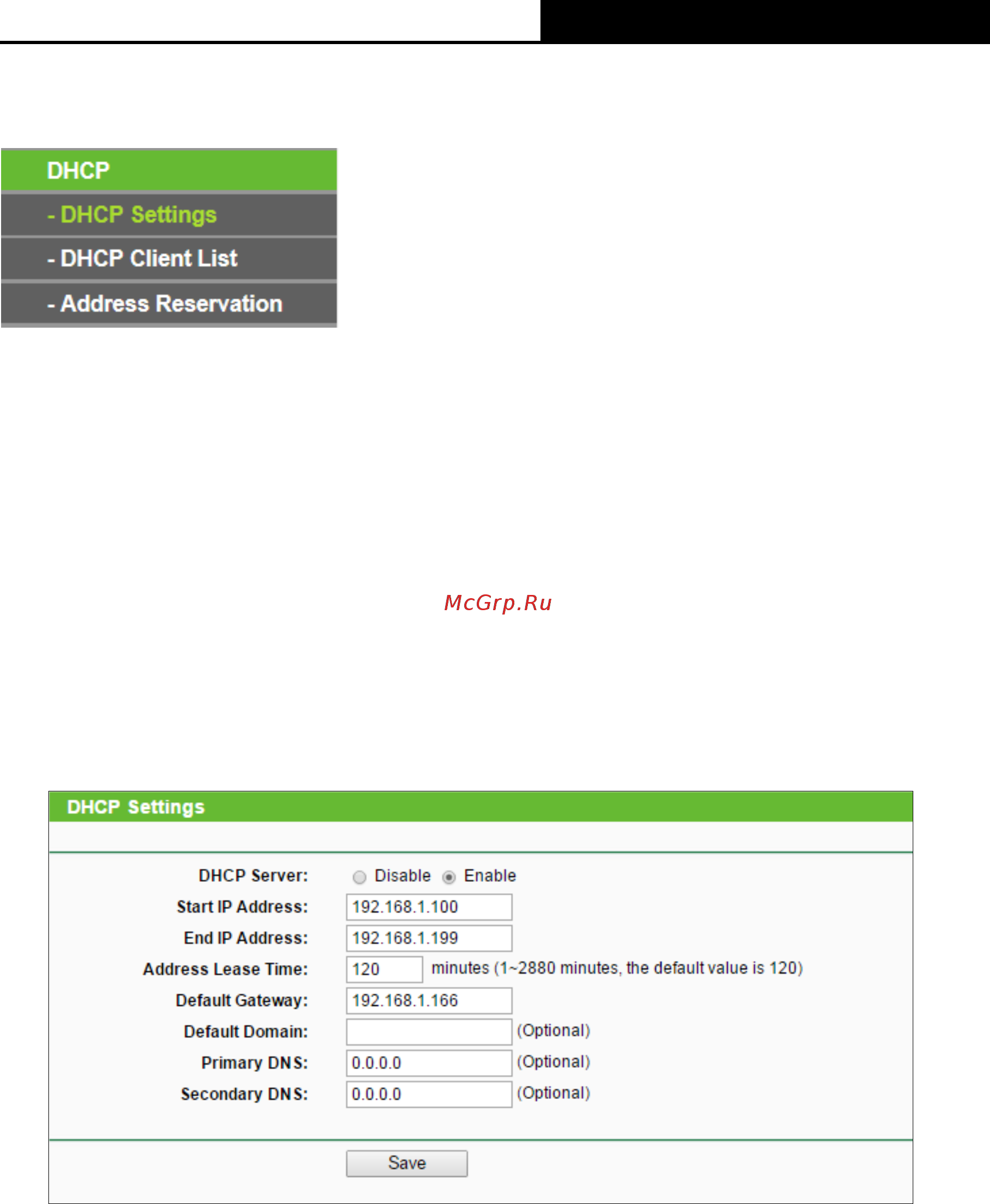

Figure 4-30 The DHCP menu

There are three submenus under the DHCP menu (shown in Figure 4-30): DHCP Settings,

DHCP Client List and Address Reservation. Click any of them, and you will be able to

configure the corresponding function.

4.10.1 DHCP Settings

Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on

the page (shown in Figure 4-31).The router is set up by default as a DHCP (Dynamic Host

Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that

are connected to the router on the LAN.

Figure 4-31 DHCP Settings

 DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must

have another DHCP server within your network or else you must configure the computer

manually.

 Start IP Address - Specify an IP address for the DHCP Server to start with when

assigning IP addresses. 192.168.1.100 is the default start address.

 End IP Address - Specify an IP address for the DHCP Server to end with when assigning

IP addresses. 192.168.1.199 is the default end address.
