Chapter 6. Port Access

119

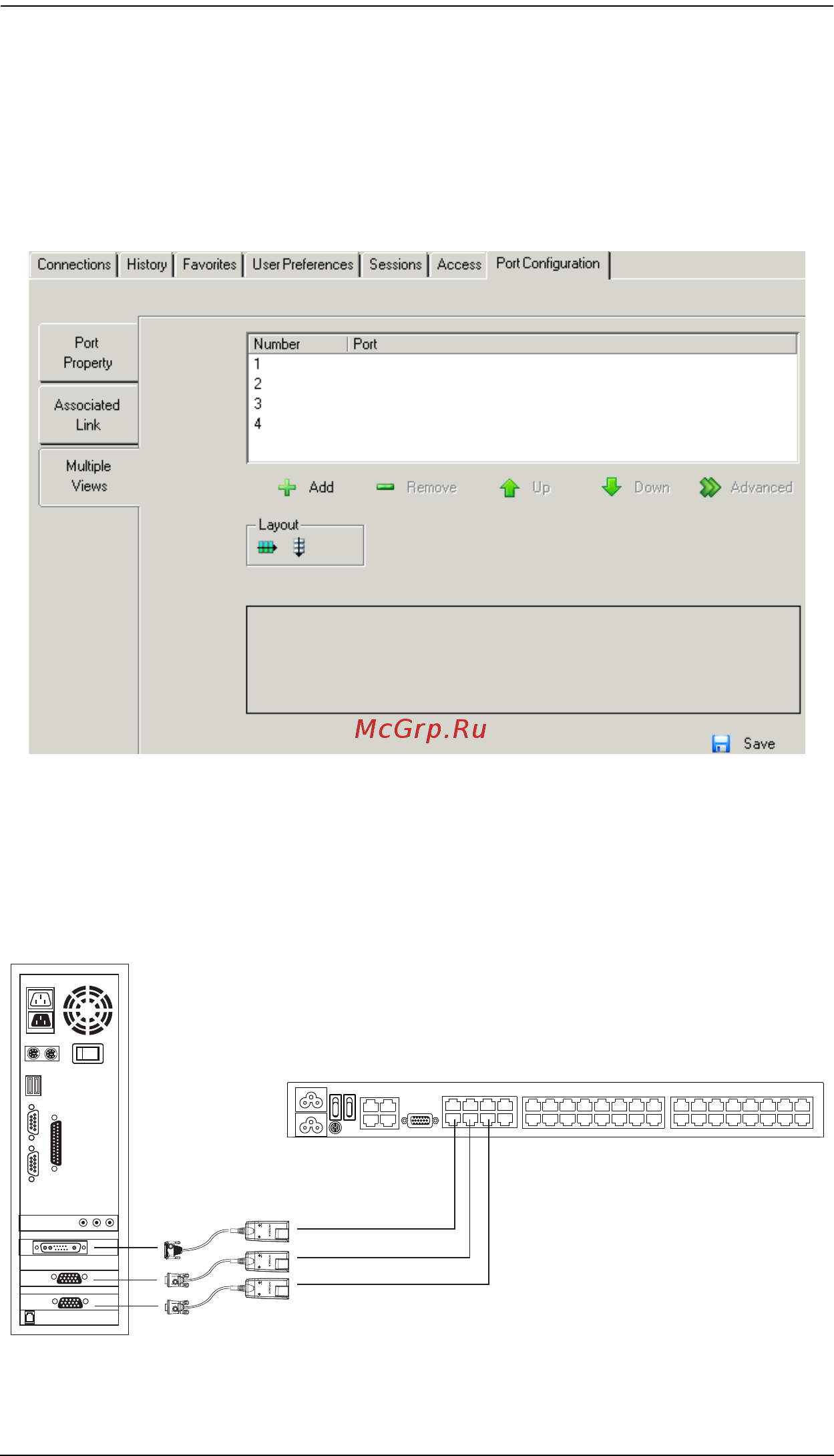

Extended Display

The Extended Display page is used to setup viewing of extended monitors for

remote KVM sessions. Up to four displays from one computer can be

connected to the KVM switch and viewed separately in a remote session.

When the Extended Display page comes up, it looks similar to the one below:

Setting up Extended Displays:

1. Connect up to four KVM adapter cables to the video ports on a

computer, and then connect each KVM adapter cable to a port on the

switch via Cat 5e cable:

LINK

y A

LINK

LIN
