Aten KN2124VA [202/287] Adapter firmware info

KVM over IP User Manual

184

Adapter Firmware Info

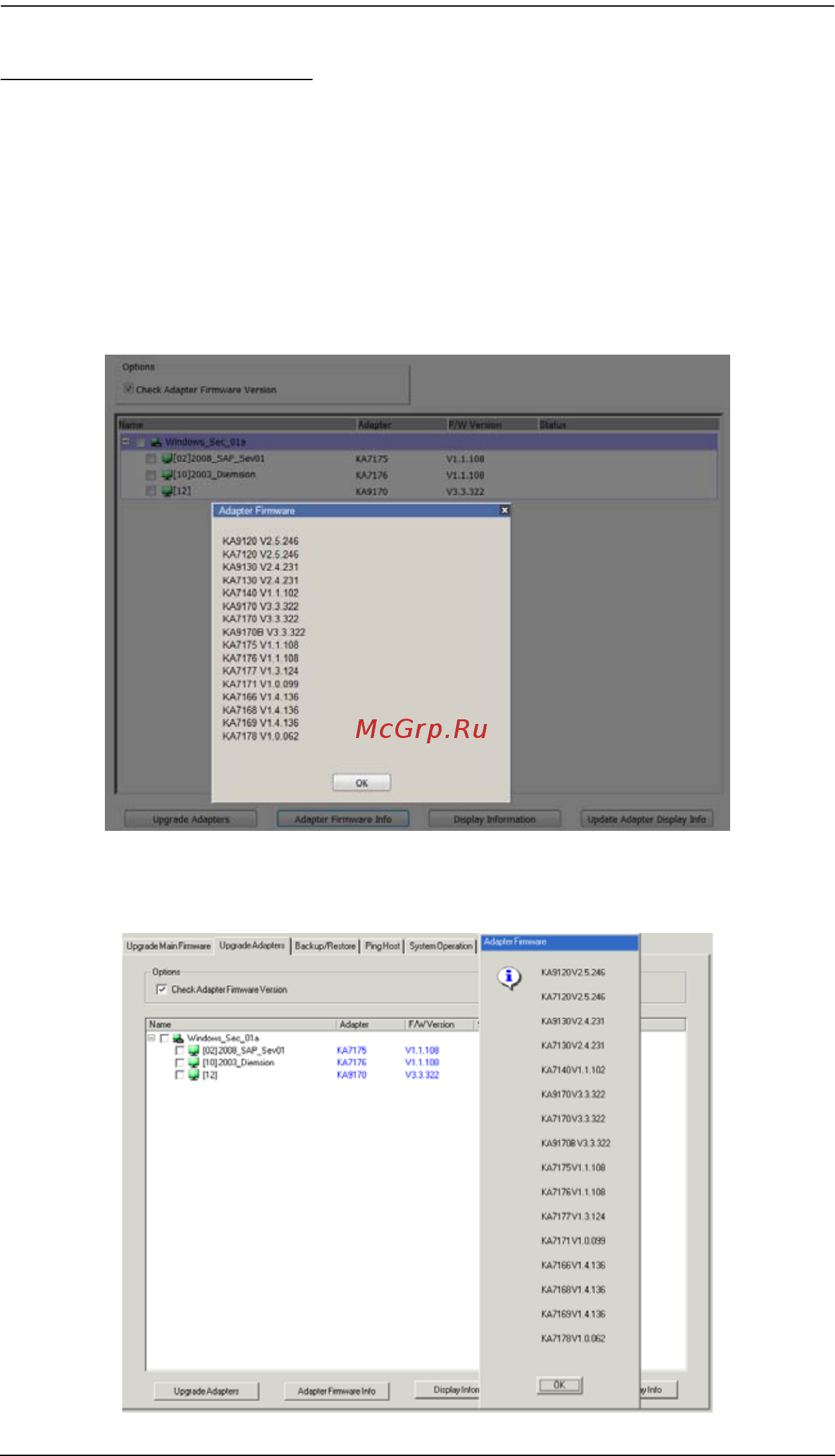

The Adapter Firmware Info button provides a list of the Adapter Cable

firmware stored on the switch’s Main firmware. You can use this information

to compare it to the F/W Version listed for the connected Adapter Cables. For

optimum compatibility we recommend upgrading your Adapter Cable’s

firmware to match that stored with the switch's Main firmware.

Browser GUI

AP GUI
