Aten KN2124VA [51/287] Network setup

Chapter 3. Super Administrator Setup

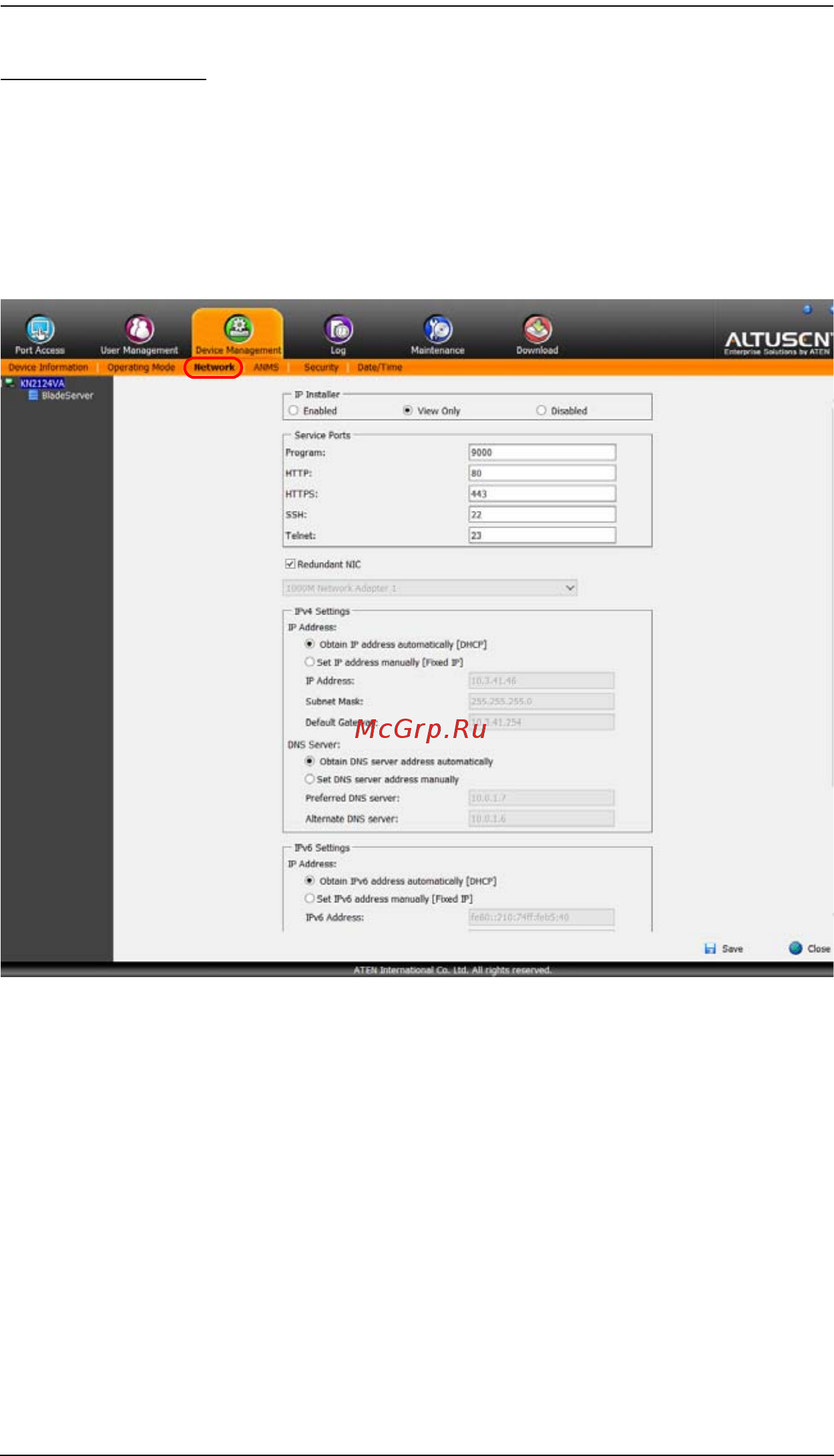

Network Setup

To set up the network, do the following:

1. Click the Device Management tab.

2. Select the Network tab.

3. Fill in the fields according to the information provided under Network,

page 145.
