Aten KN2124VA [37/287] Rack mounting

Chapter 2. Hardware Setup

Rack Mounting

The KVM over IP switch can be mounted in a 19" (1U) rack. The mounting

brackets can screw into either the front or the back of the unit so that it can

attach to the front or the back of the rack.

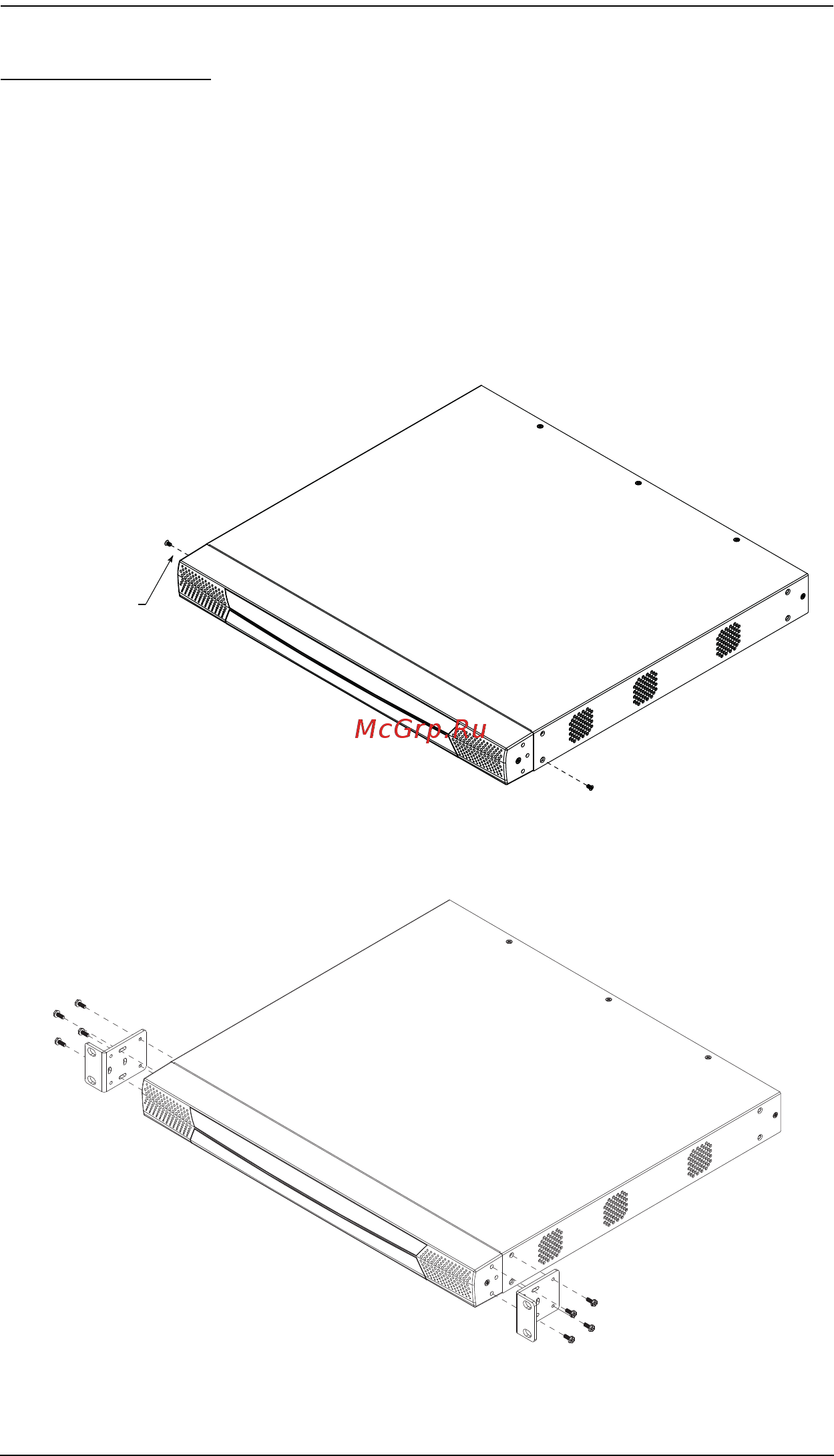

Rack Mounting - Front

To mount the unit at the front of the rack, do the following:

1. Remove the screws at the front of the unit.

2. Use the M3 x 8 Phillips head hex screws supplied with the rack mount kit

to screw the rack mounting brackets into the front of the unit.

Phillips head

hex M3 x 6
