Chapter 5. The User Interface
81
Extended Displays
The Extended Displays icon provides the ability to view the screens in

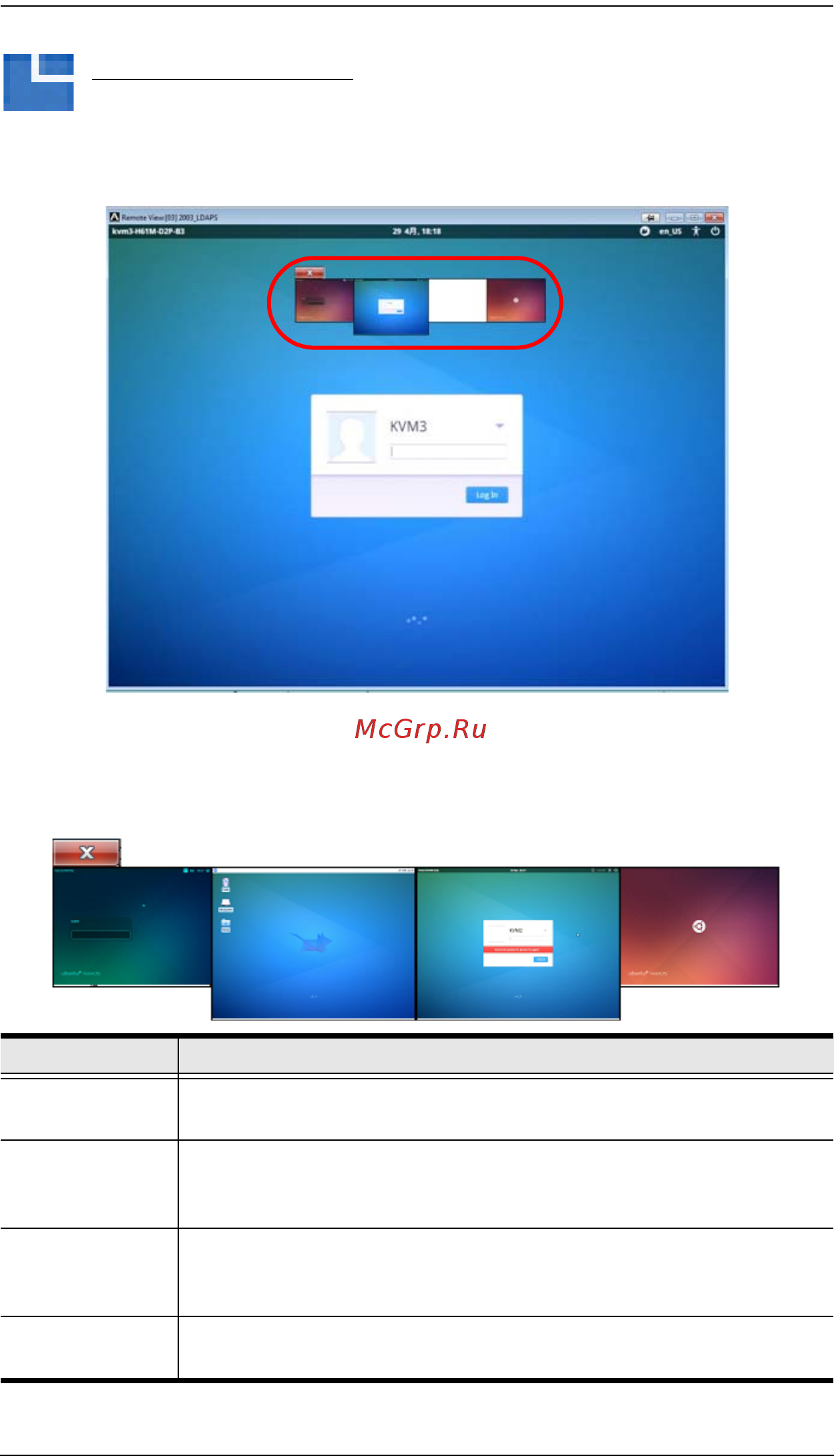

an extended display setup. When you click the icon the Display Panel
window appears with the extended screens, as shown here:
The size and number of screens in the Display Panel window depends on how
the setup is configured. (see Extended Display, page 119 for details).
Display Panel Window
Options Usage
Switch Double click a screen in the Display Panel window to switch to that
extended display.
Expand /
Collapse
Hover the mouse pointer over the edge of the Display Panel window
until it turns into a double arrow, then click and drag to expand or
collapse the window size.
Move Put the mouse pointer inside the Display Panel window, click and
drag to move the window anywhere on the computer screen. The
Display Panel window can be moved outside the remote session s.
Close Click the X or the Multiple Displays icon on the control panel to close
the control panel window.
