Chapter 2. Hardware Setup

Rack Mounting - Rear

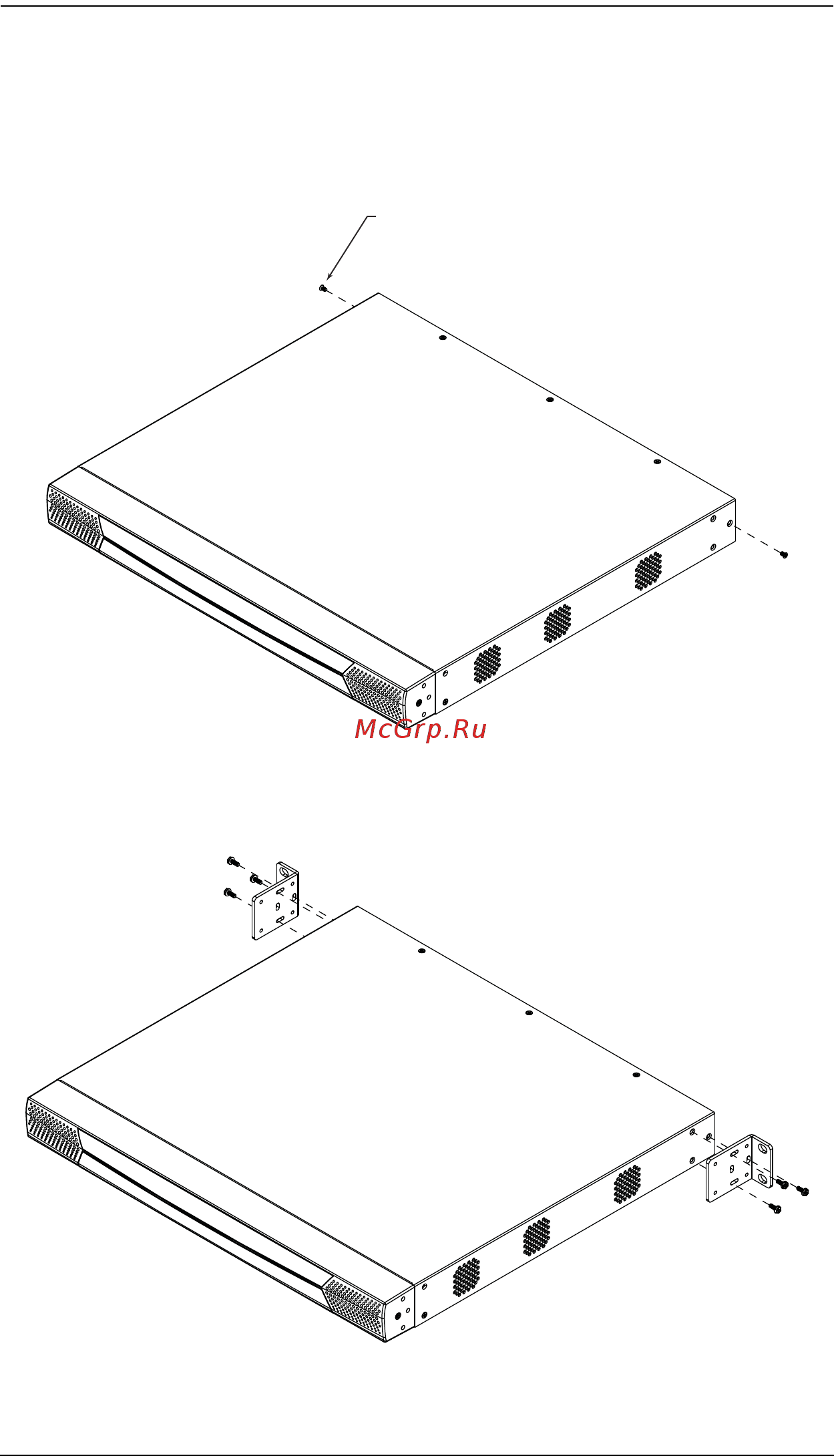

To mount the unit at the rear of the rack, do the following:

1. Remove the two screws at the rear of the unit.

2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting

kit to screw the rack mounting brackets into the rear of the unit.

Phillips head hex

M3 x 6
