Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

No. Components No. Components

1EZM16F_USB1~2

2CASE7COM

3ME_UNLOCK8 SPDIFO

4 SATA3 _1~7 9 F_AUDIO

5 USB3F_1 —— ——

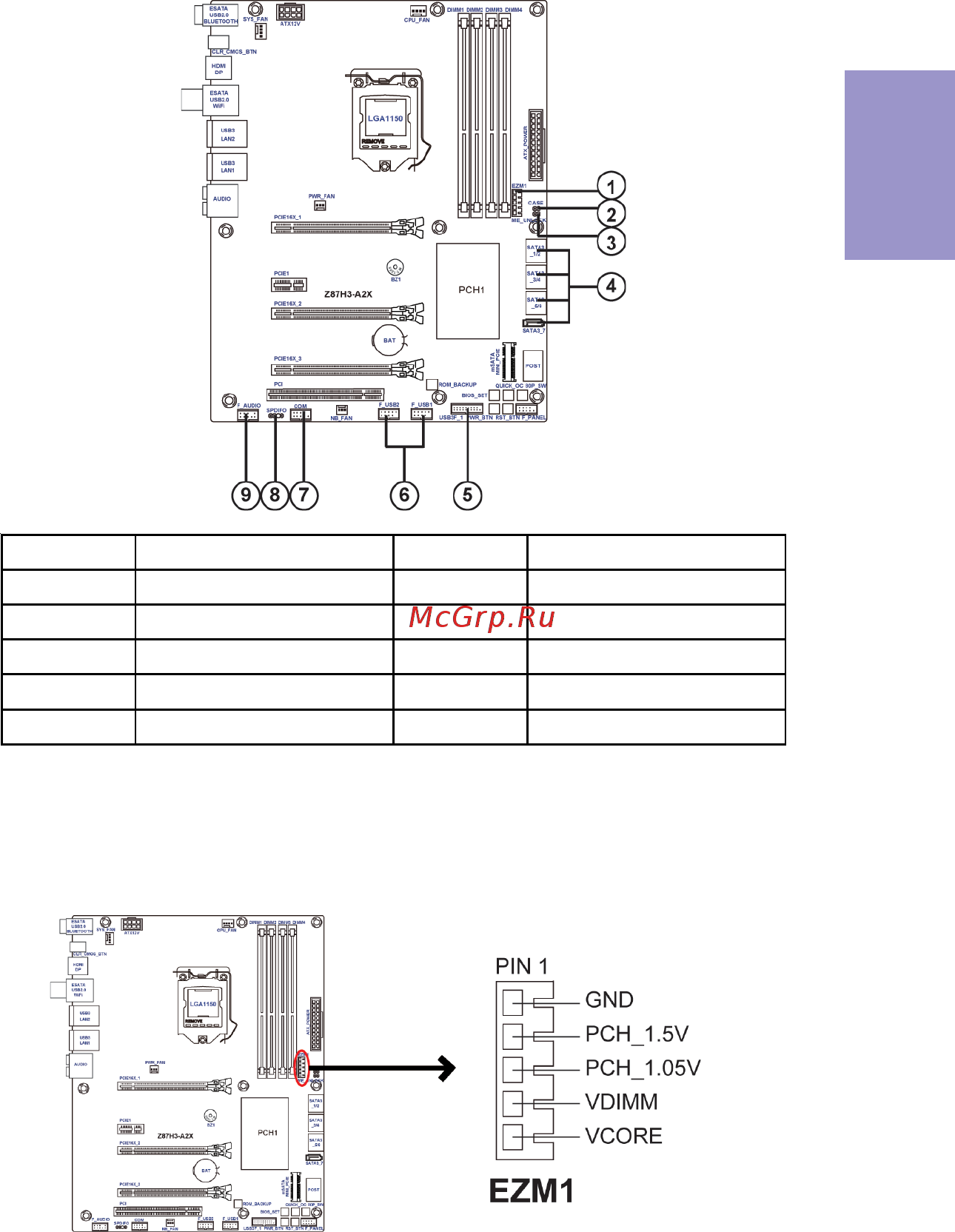

This connector allows user to measure the voltage easily.

1. EZM1: Easy Measure Point Connector

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:
