Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

Chapter 4

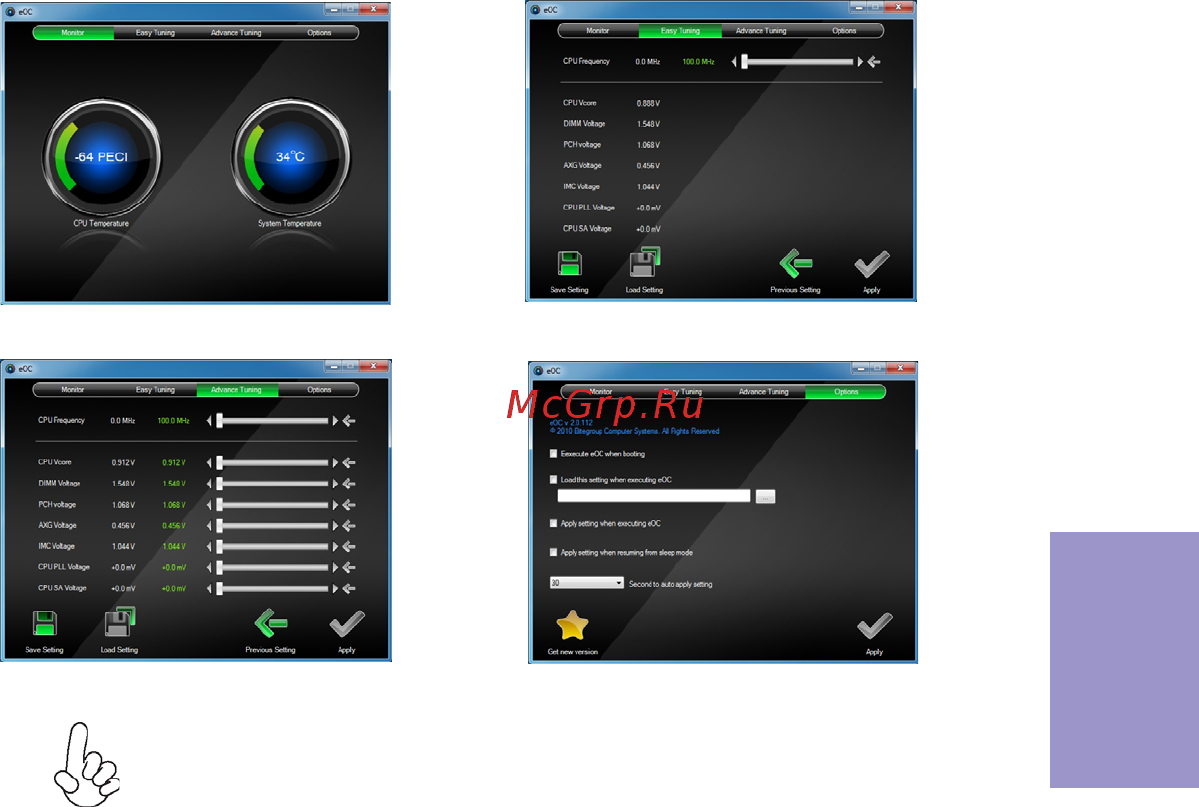

eOC

ECS eOC Utility is a simple over-clocking tool that provides user-friendly windows

operation interface for novices and over-clockers. Combining with ECS MIB X

technology, eOC challenges the undiscovered over-clocking capability than ever

before.

Monitor Easy Tuning

Advance Tuning

Options

Microsoft .NET Framework 3.5 is required.
