ECS Elitegroup Z87H3-A2X EXTREME [27/104] Z87h3 a2x extreme golden user manual

Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

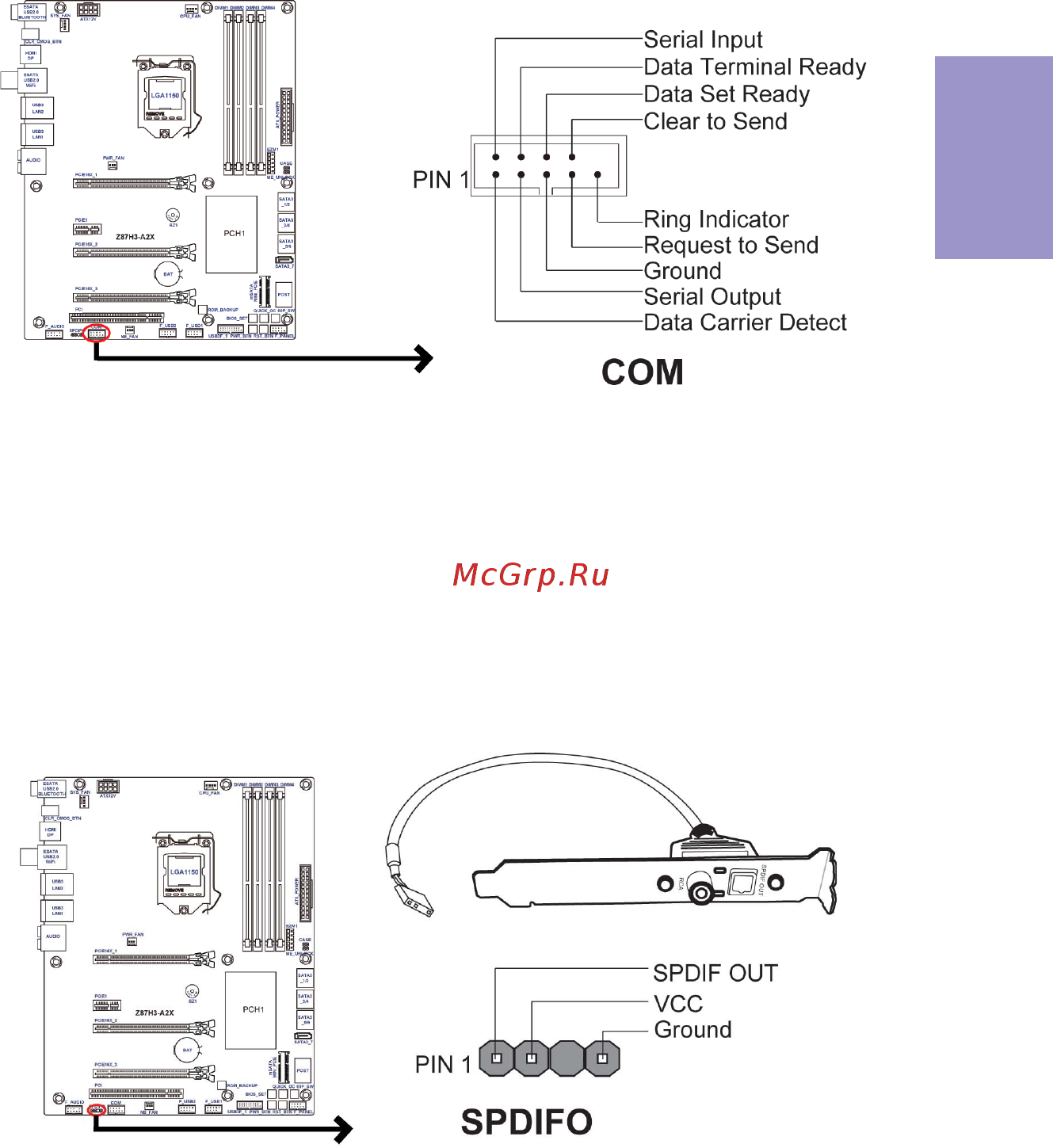

7. COM: Onboard Serial Port Header

Connect a serial port extension bracket to this header to add a serial port to your

system.

8. SPDIFO: SPDIF Out Header

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)

output to digital multimedia device through optical fiber or coaxial connector.
