Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

The ATX 24-pin connector allows you to connect to ATX v2.x power supply.

With ATX v2.x power supply, users please

note that when installing 24-pin power

cable, the latches of power cable and the

ATX_POWER match perfectly.

Connecting 24-pin power cable

24-pin power cable

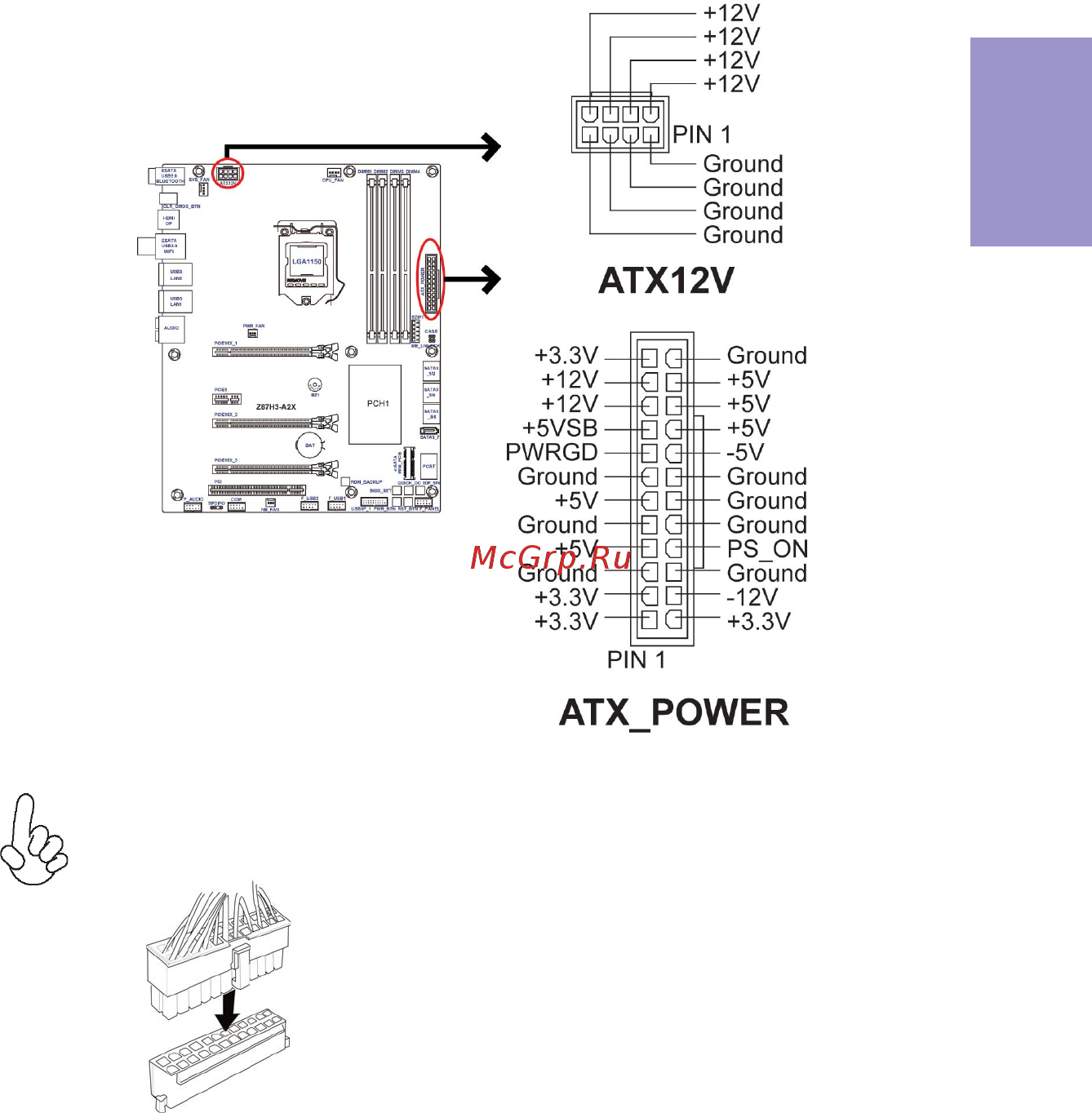

2 & 6. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX 12V Power

Connector)

Connect the standard power supply connector to ATX_POWER.

Connect the auxiliary case power supply connector to ATX12V.
