Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

Chapter 6

Enabling NVIDIA

SLI

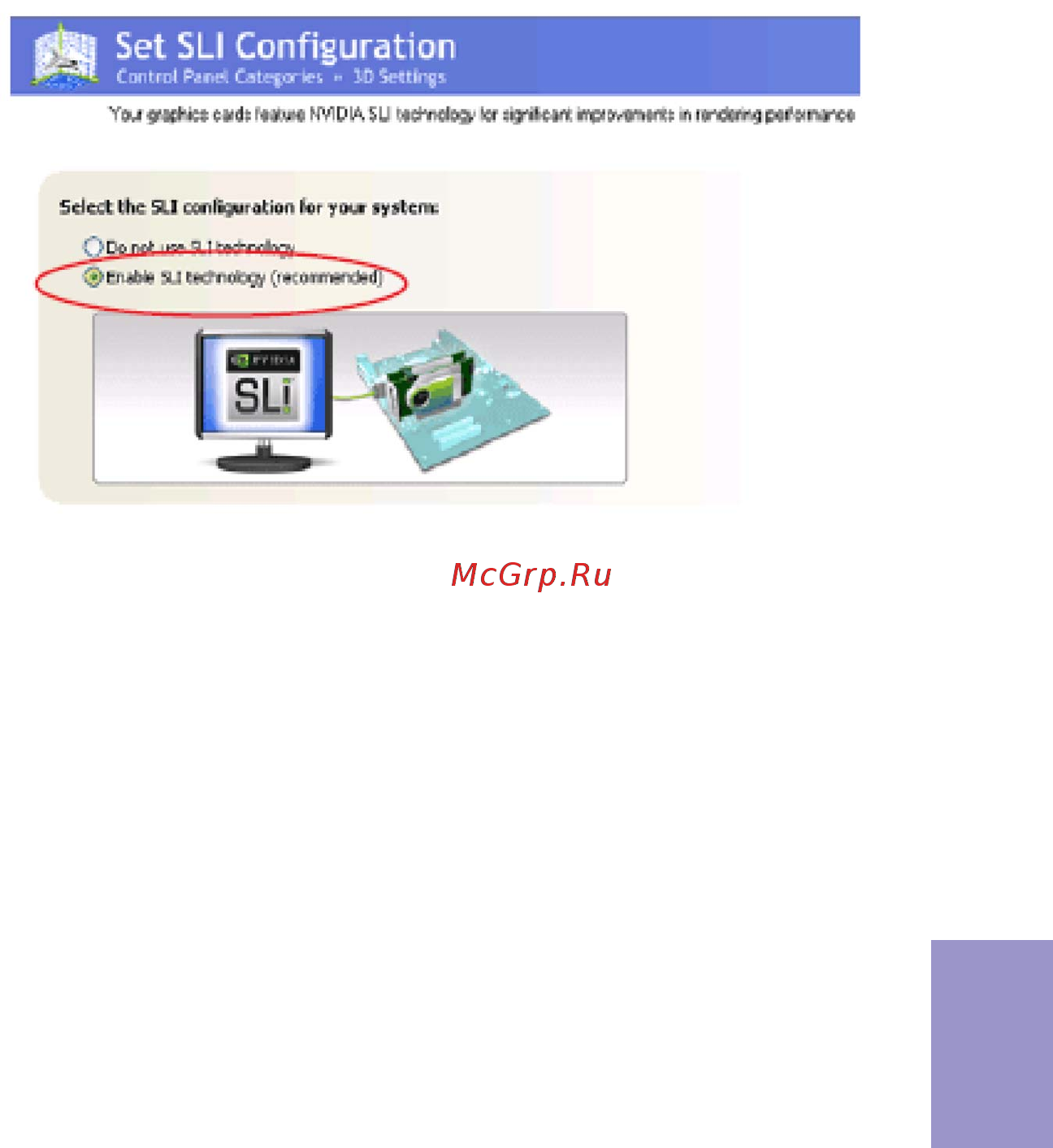

1. Click on the SLI capable system message to open the following window.

Description:

All NVIDIA

GPUs work together with SLI technology to increase the

rendering performance of your 3D applications.

Typical usage scenarios:

•Playing 3D games

•Using any application that renders hardware-accelerated Direct 3D or

OpenGL content.
