Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

Chapter 5

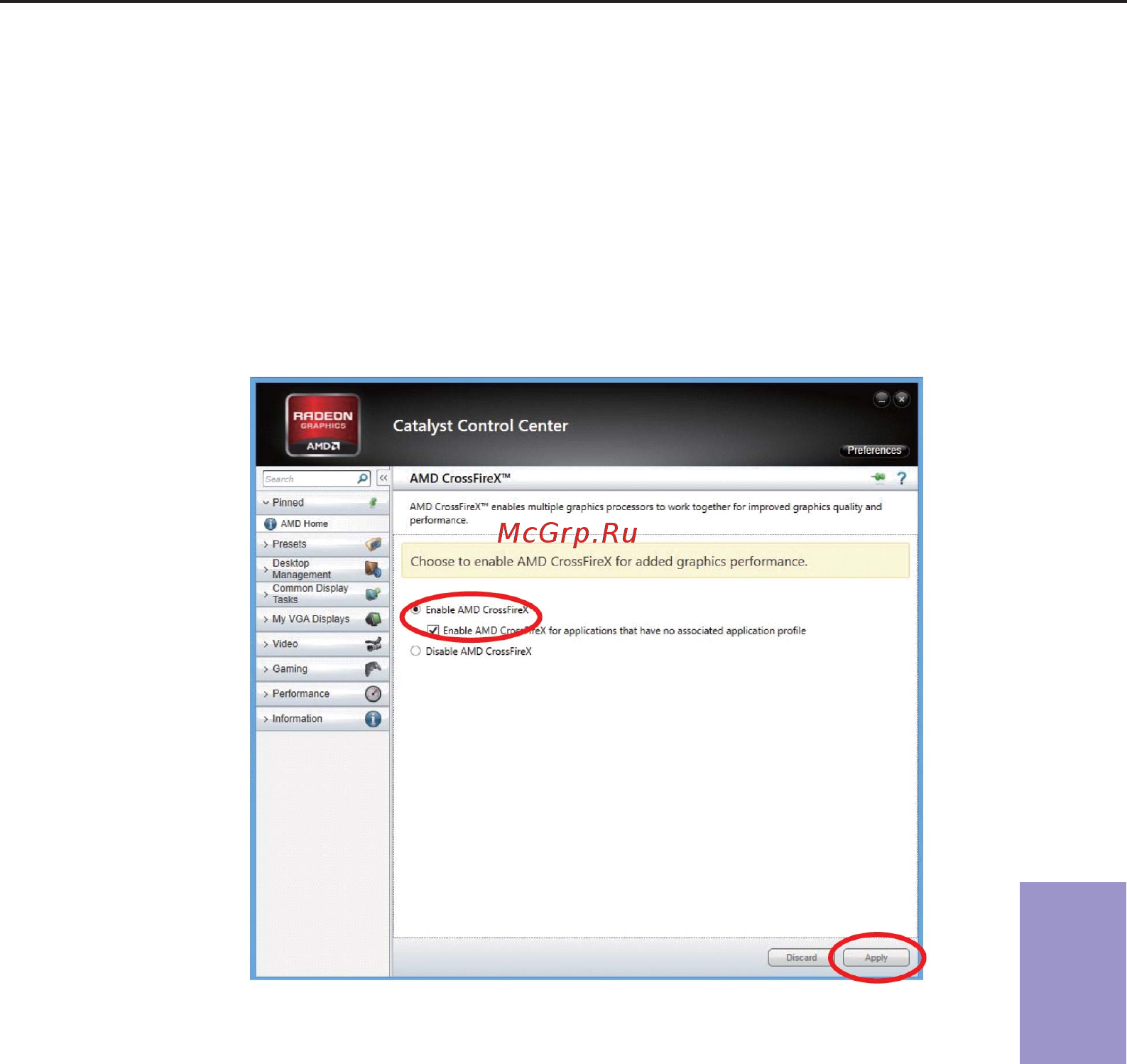

The Catalyst

Control Center Dialog Box

To enable CrossFireX

• Install AMD graphic card driver.

• Enter the Catalyst

Control Center Dialog Box.

• check the “Enable CrossFireX

” item.

• Click OK to apply.
