ECS Elitegroup Z87H3-A2X EXTREME [90/104] Z87h3 a2x extreme golden user manual

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

Chapter 6

All in all, the NVIDIA SLI technology works.

This concludes Chapter 6.

2. Select the checkbox Enable SLI technology and then click Apply

You now have an NVIDIA

SLI-enabled PC!

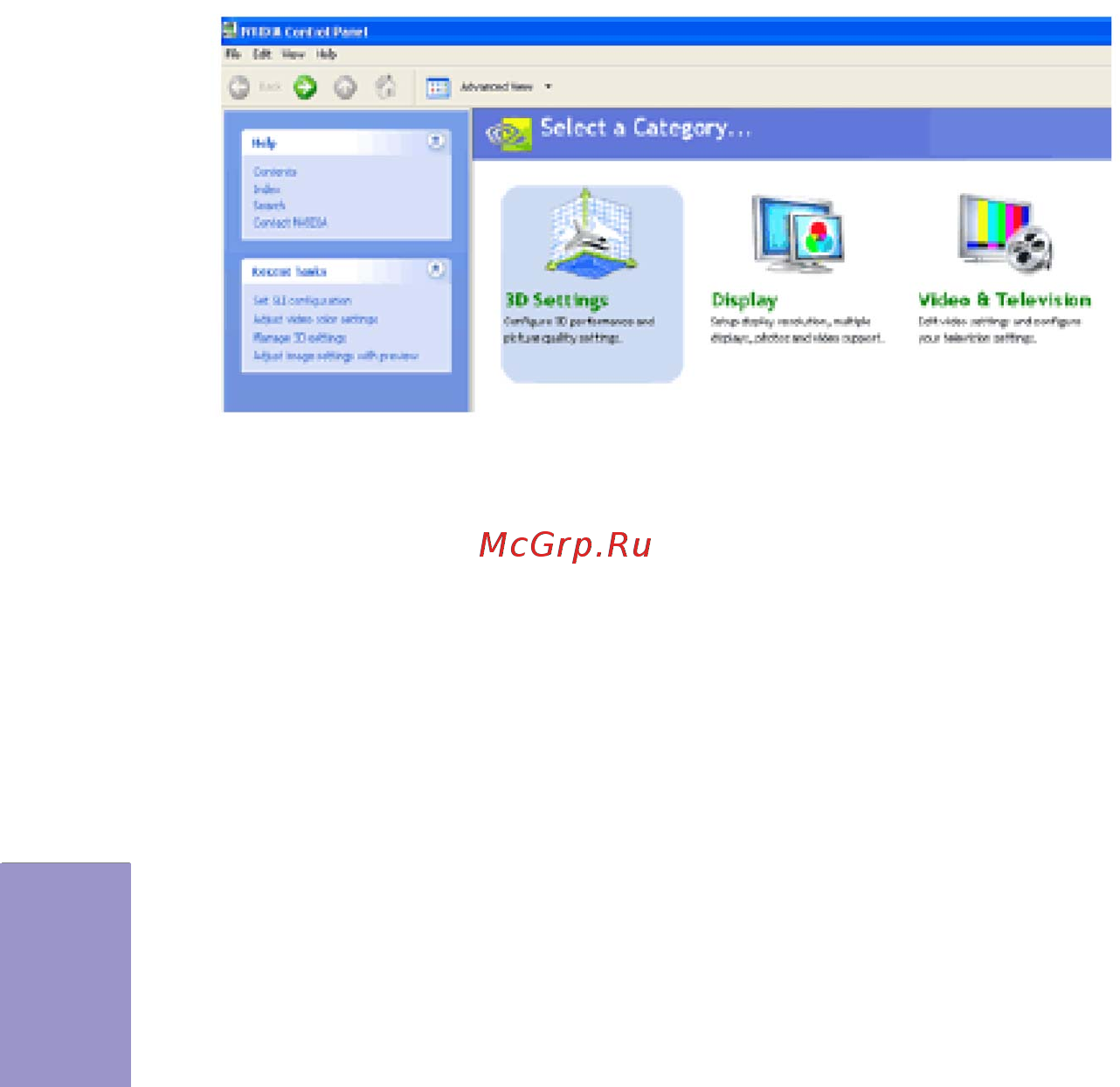

You can also access these settings by opening the NVIDIA

Control Panel (right-click

on desktop), clicking on 3D Settings (shown below) and then selecting “SetSLI

configuration”.

Control Panel Setting of 2-Way SLI
