Руководство пользователя Страница: 32

ECS Elitegroup Z87H3-A2X EXTREME [32/104] Z87h3 a2x extreme golden user manual

Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

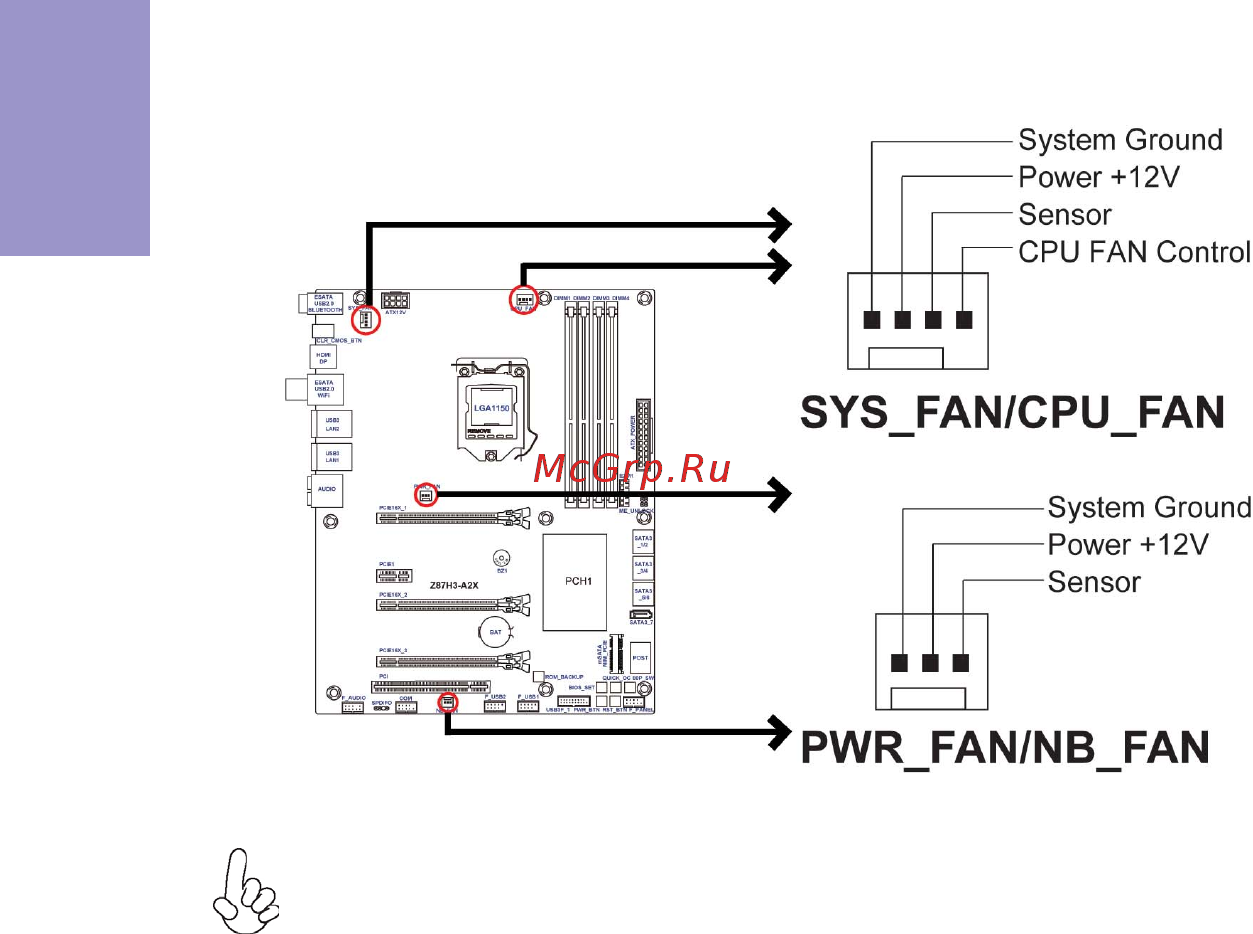

1 & 4 & 5 & 7. CPU_FAN (CPU Cooling FAN Connector) & NB_FAN (North Bridge

Cooling FAN Connector) & SYS_FAN (System Cooling FAN Connector) & PWR_FAN

(Power Cooling FAN Connector)

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

Connect the CPU cooling fan cable to CPU_FAN.

Connect the North Bridge cooling fan connector to NB_FAN.

Connect the power cooling fan connector to PWR_FAN.

Connect the system cooling fan connector to SYS_FAN.
