ECS Elitegroup Z87H3-A2X EXTREME [28/104] Z87h3 a2x extreme golden user manual

Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel

Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel

Detect ” .

* For reference only

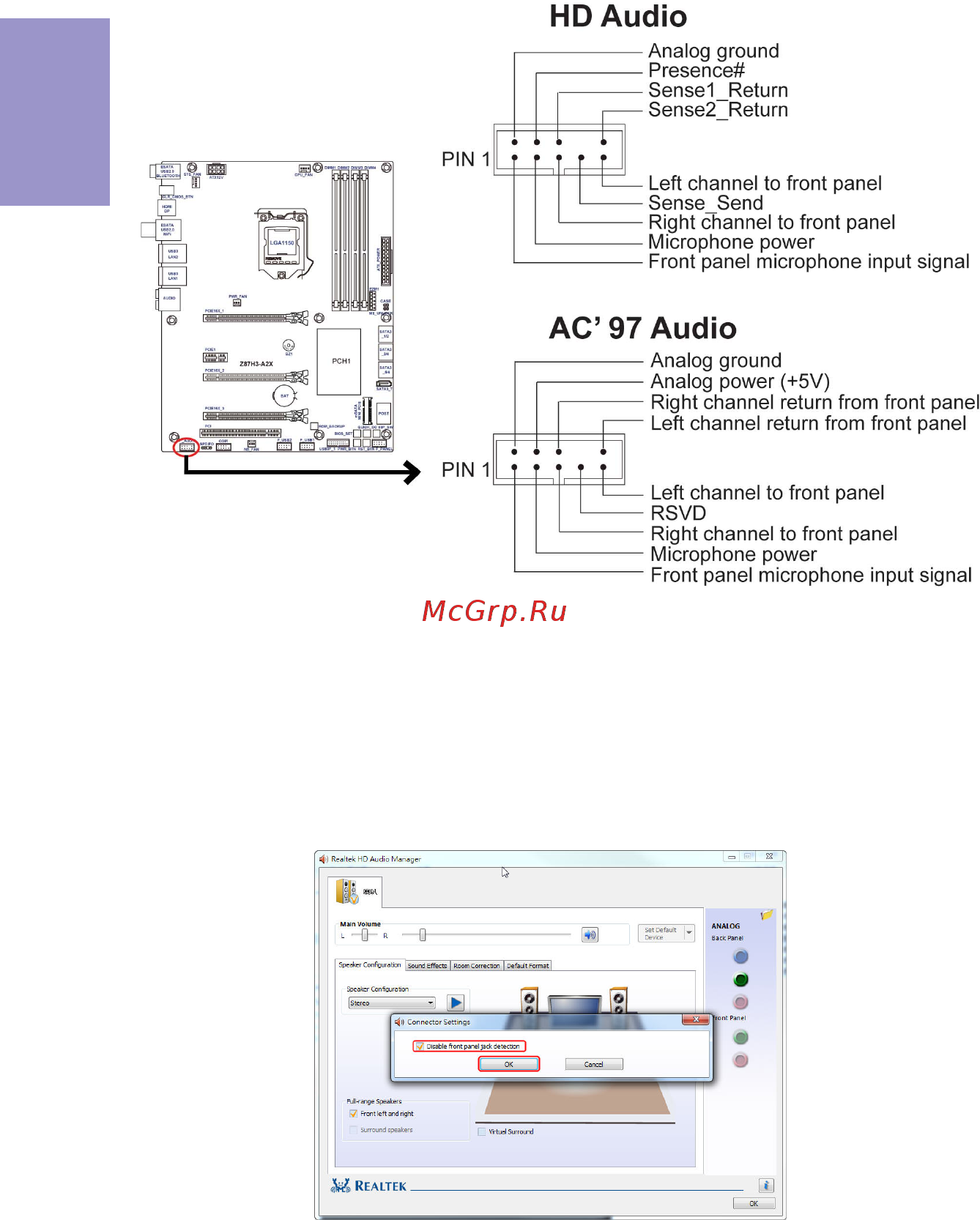

AC’ 97 Audio Configuration: To enable the front panel audio connector to

support AC97 Audio mode.

The front panel audio header allows the user to install auxiliary front-oriented

microphone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC’ 97 front panel audio to HD onboard headers,

please set as below picture.

9. F_AUDIO: Front Panel Audio Header
