About your monitor | 17

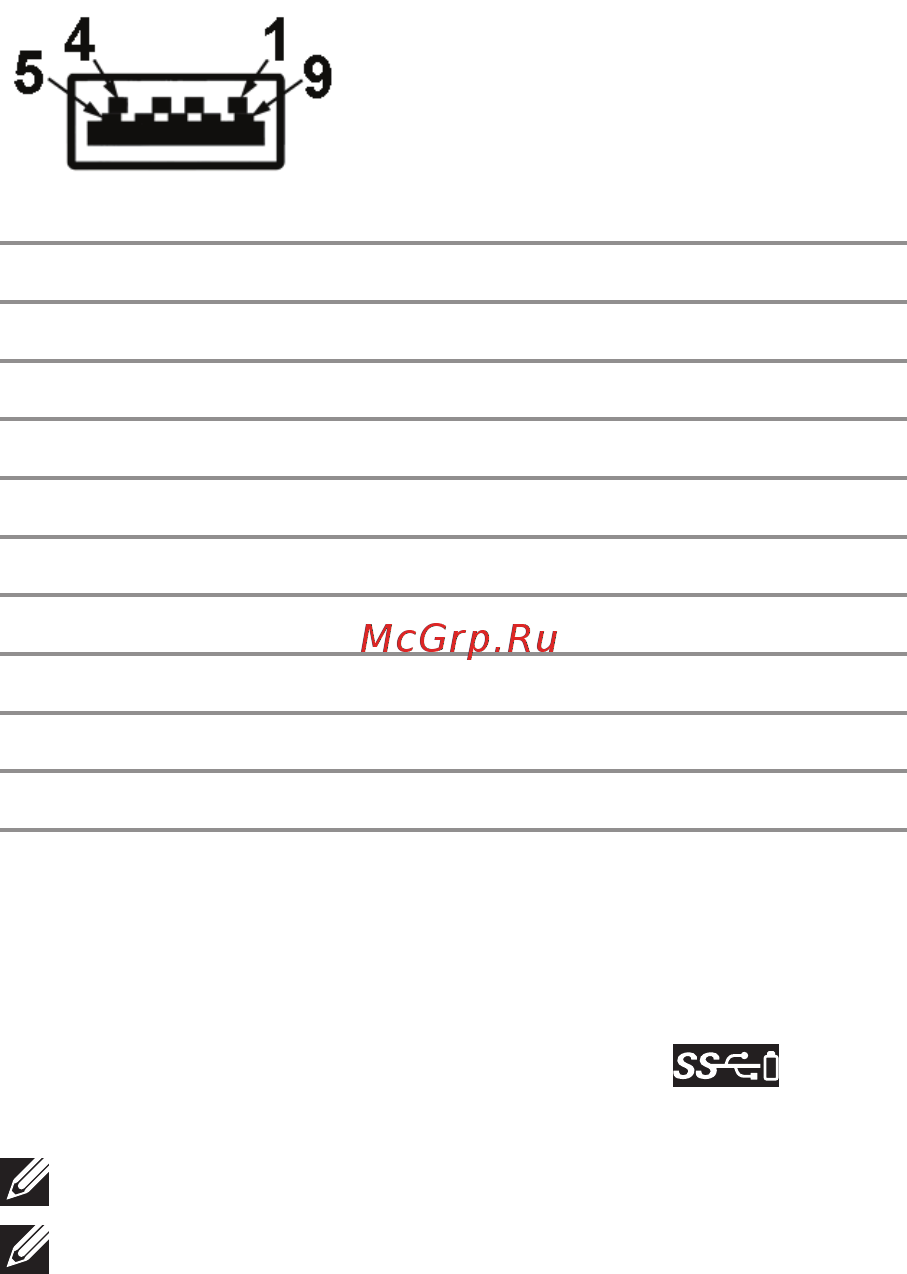

USB Downstream Connector
Pin Number 9-pin Side of the Connector
1 VCC
2 D-
3 D+
4 GND
5 SSTX-
6 SSTX+
7 GND
8 SSRX-
9 SSRX+
USB Ports
∞
1 upstream - blue
∞
4 downstream - blue
∞
Power Charging Port- the port with battery icon; supports current
charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor’s USB interface works only when the monitor is on or in the
power save mode. If you turn off the monitor and then turn it on, the attached
peripherals may take a few seconds to resume normal functionality.
