20 | About your monitor

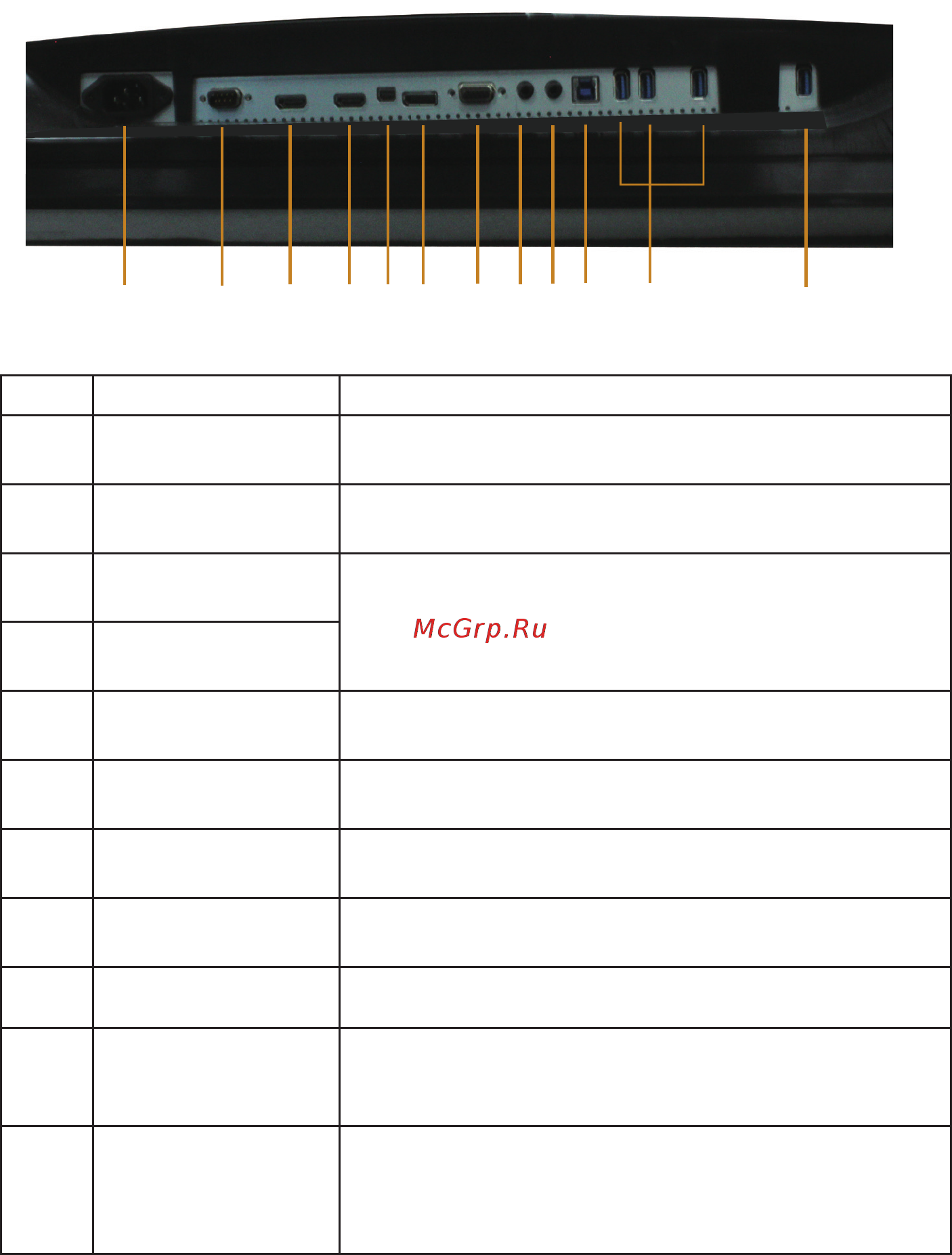

Bottom view
2
3
4
5 6
7
8
9
10
11 12
1
Bottom view without monitor stand
Label Description Use
1 AC power cord
connector
To connect the monitor power cable.
2 RS232 port To connect your computer to the monitor using a
RS232 cable.
3 HDMI/MHL 1 port
connector
Connect your computer with HDMI/MHL cable.
4 HDMI/MHL 2 port
connector
5 mini DisplayPort To connect your computer to the monitor using a
mDP to DP cable.
6 DisplayPort To connect your computer to the monitor using a DP
to DP cable.
7 VGA port To connect your computer to the monitor using a
VGA cable.
8 Audio Line In port Connects the audio cable (optional purchase) from
the source device to the monitor.
9 Headphone Out port Connect to external headphone (optional purchase)
10 USB upstream port Connect the USB cable that comes with your monitor
to the computer. Once this cable is connected, you
can use the USB connectors on the monitor.
11
12
USB downstream
port
Connect your USB device. You can only use this
connector after you have connected the USB cable
to the computer and USB upstream connector on the
monitor. *
* It is use the port (12) support battery charging.
