Dell p4317q [25/53] Connecting the usb 3 cable
![Dell p4317q [25/53] Connecting the usb 3 cable](/views2/1218071/page25/bg19.png)
Setting up the monitor | 25

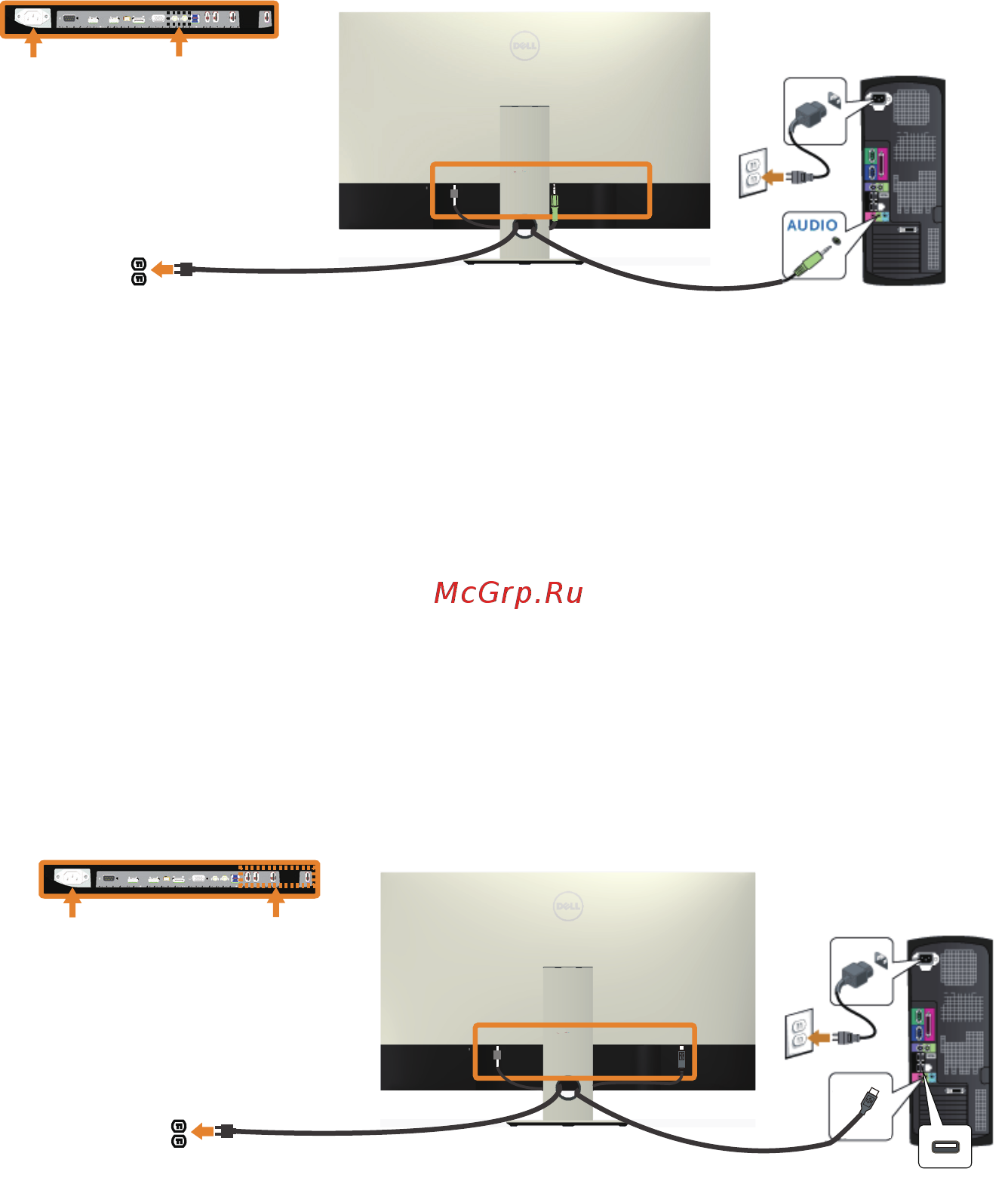

Connecting the audio cable (sold separately)
Connecting the USB 3.0 cable
After you have completed connecting the HDMI/MHL/mDP/DP cable, follow the
procedures below to connect the USB 3.0 cable to the computer and complete
your monitor setup:
1.
Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0
port on your computer. (See Bottom view for details.).
2.
Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the
monitor.
3.
Plug the power cables for your computer and monitor into a nearby outlet.
4.
Turn on the monitor and the computer. If your monitor displays an image, see
Universal serial bus (USB) specific problems.
5.
Use the cable slot on the monitor stand to organize the cables.
