Operating your monitor | 35
Preset Modes When you select preset modes, you can choose standard,
multimedia, movie, game, paper, warm, cool, or custom
color from the list.
∞
Standard: Loads the monitor's default color settings. This
is the default preset mode.
∞
Paper: Loads brightness and sharpness settings ideal for
viewing text. Blend the text background to simulate paper
media without affecting color images. Applies to RGB
input format only.
∞
Warm: Increases the color temperature. The screen
appears warmer with a red/yellow tint.
∞
Cool: Decreases the color temperature. The screen
appears cooler with a blue tint.
∞
Custom Color: Allows you to manually adjust the color
settings.
Press the and buttons to adjust the three colors
(R, G, B) values and create your own preset color mode.
Display
PIP/PBP
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 50Hz
Dell P4317Q Energy Use
Audio
Maximum: 3840x2160, 30Hz
Brightness / Contrast
Input Source
Color

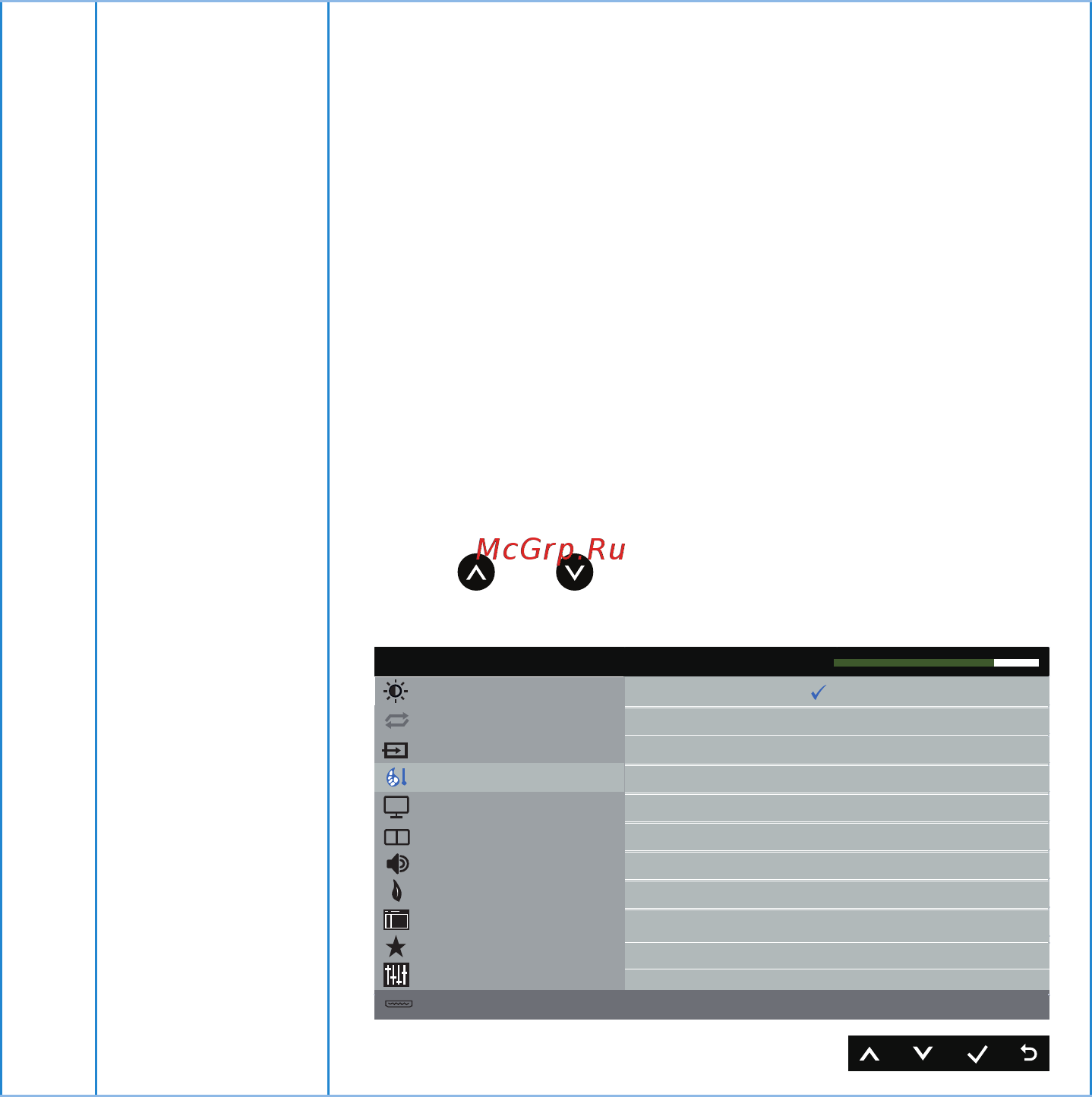

Preset Modes
Standard
Paper
Warm
Cool
Custom Color
Input Color Format
Reset Color
Auto Adjust
