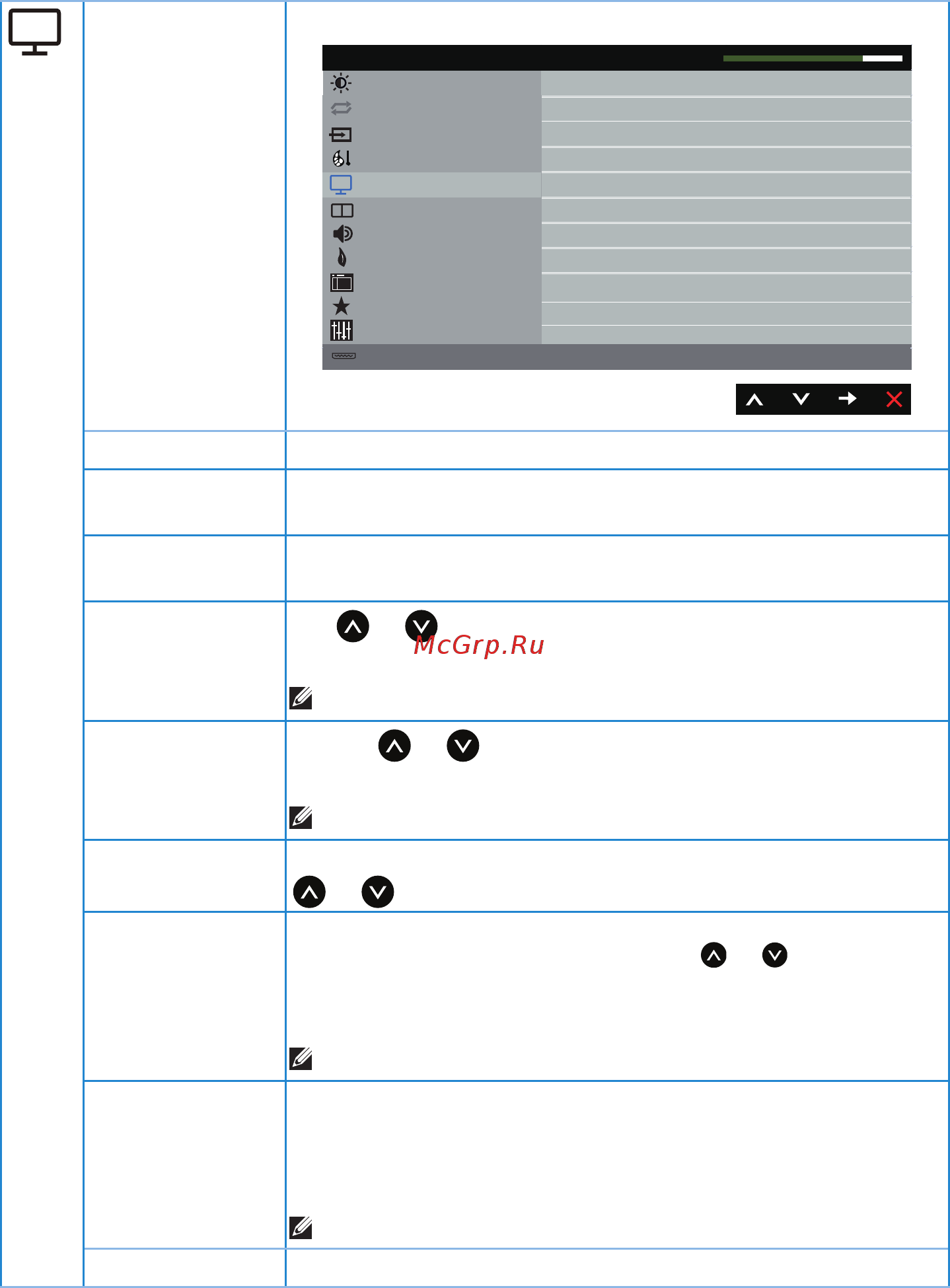

Operating your monitor | 37
Display Use the display to adjust image.
PIP/PBP
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 50Hz
Dell P4317Q Energy Use
Audio
Maximum: 3840x2160, 30Hz
Brightness / Contrast
Input Source
Color
Display
Wide 16:9
On
Sleep After Timeout
Aspect Ratio
Underscan
Monitor Sleep
Horizontal Position
Vertical Position
50
Sharpness
Pixel Clock
Phase
Reset Display
Auto Adjust
Aspect Ratio Adjusts the image ratio to Wide 16:9, 4:3 or 5:4.
Underscan Underscan is to describe the display function which will
reduce the display area.
Monitor Sleep Monitor sleep is to define the action after the source has no
signal. It will go to sleep or never go to sleep.
Horizontal
Position
Use or the buttons to adjust image left and right.
Minimum is 0 (-). Maximum is 100 (+).
NOTE: Only applicable for VGA source.
Vertical Position
Use the or buttons to adjust image up and down.
Minimum is 0 (-). Maximum is 100 (+).
NOTE: Only applicable for VGA source.
Sharpness This feature can make the image look sharper or softer. Use
or to adjust the sharpness from '0' to '100'.
Pixel Clock The phase and pixel clock adjustments allow you to adjust
your monitor to your preference. Use or buttons to
adjust for best image quality. Minimum is 0 (-). Maximum is
100 (+).
NOTE: Only applicable for VGA source.
Phase If satisfactory results are not obtained using the phase
adjustment, use the pixel clock (coarse) adjustment and
then use phase (fine), again. Minimum is 0 (-). Maximum is
100 (+).
NOTE: Only applicable for VGA source.
Reset Display Select this option to restore default display settings.
