ASUS PRIME X370-PRO
2-3
Chapter 2

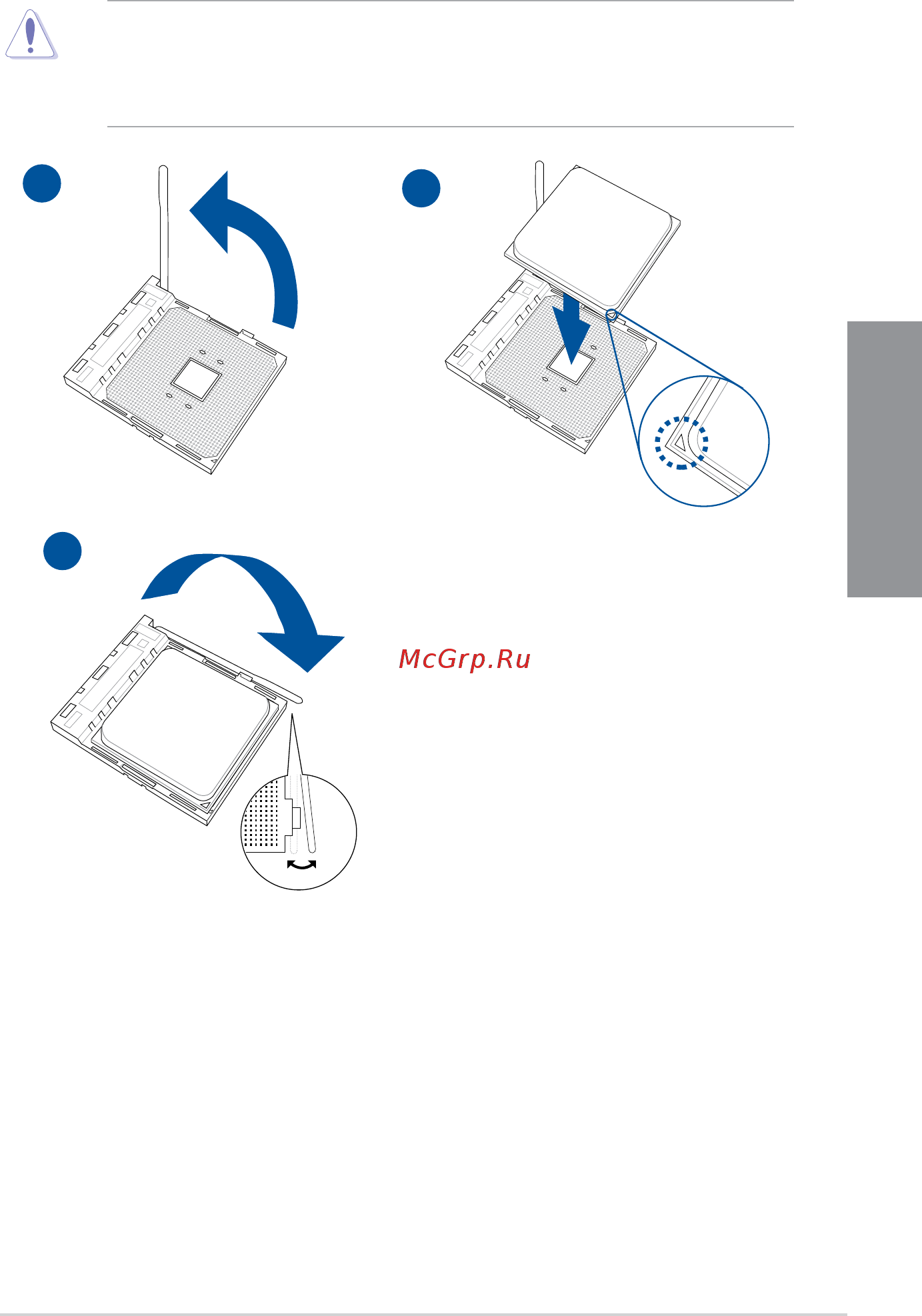

2.1.2 CPU installation
1
2
• Unplug all the power cables before installing the CPU.
• EnsurethatyouuseaCPUdesignedfortheAM4socket.TheCPUtsinonlyone
correct orientation. DO NOT force the CPU into the socket to prevent bending the
pins and damaging the CPU
3
