ASUS MAXIMUS IX FORMULA
1-9
Chapter 1
1.1.6 Onboard buttons and switches
Onboardbuttonsandswitchesallowyoutone-tuneperformancewhenworkingonabareor
open-casesystem.Thisisidealforoverclockersandgamerswhocontinuallychangesettings
toenhancesystemperformance.

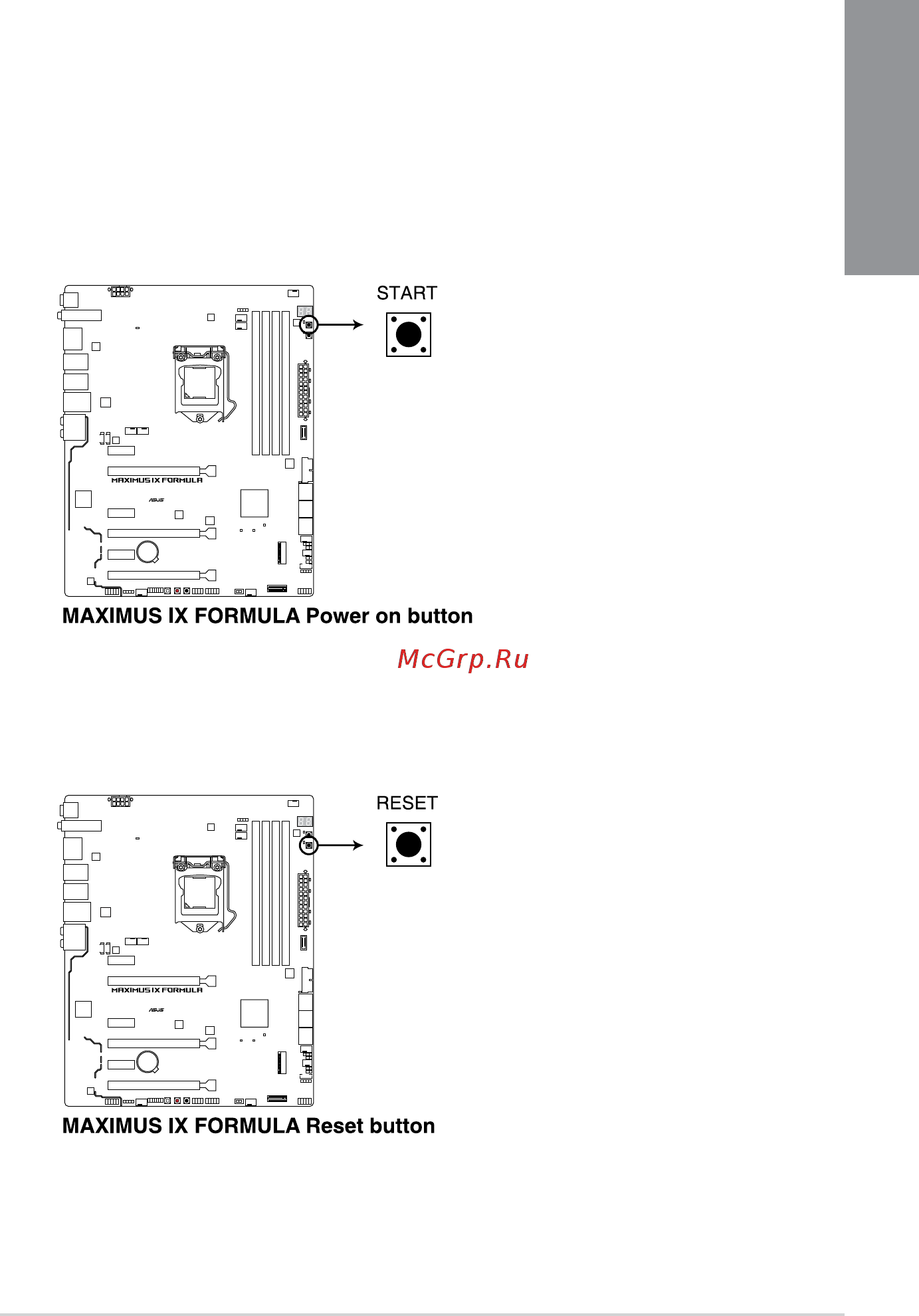

1. Power-on button (START)
Themotherboardcomeswithapower-onbuttonthatallowsyoutopoweruporwake
upthesystem.TheLEDnearthebuttonalsolightsupwhenthesystemispluggedto
apowersourceindicatingthatyoushouldshutdownthesystemandunplugthepower
cablebeforeremovingorinstallinganymotherboardcomponent.
2. RESET button (RESET)
Presstheresetbuttontorebootthesystem.
