Asus ROG MAXIMUS IX FORMULA [44/114] Chapter 1
![Asus ROG MAXIMUS IX FORMULA [44/114] Chapter 1](/views2/1233197/page44/bg2c.png)
1-28
Chapter 1: Product Introduction
Chapter 1
• TheOCPanelI/IIandFrontBasearepurchasedseparately.
• SupportforOCPanelI/IIandFrontBasevariesoverdifferentplatforms
• Visitwww.asus.comformoreinformationaboutthedevicesandthelatestcompatibility
list.

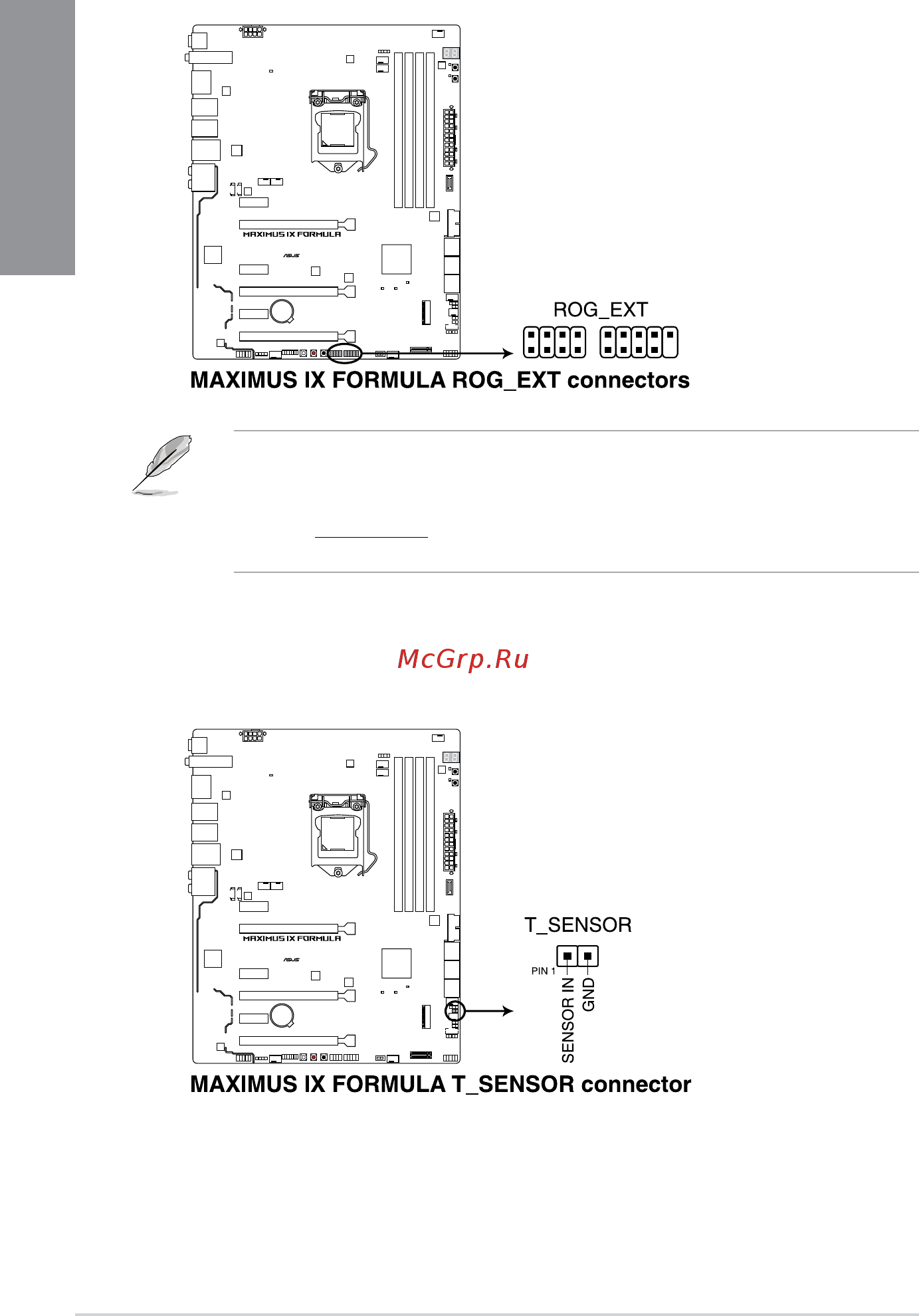

10. ROG extension connector (18-1 pin ROG_EXT)
ThisconnectorisfortheOCPanelI/II.
11. Thermal sensor connector (2-pin T_SENSOR)
Thisconnectorisforthethermistorcablethatallowsyoutomonitorthetemperatureof
yourmotherboard’scriticalcomponentsandconnecteddevices.
