Asus ROG MAXIMUS IX FORMULA [29/114] Onboard leds
![Asus ROG MAXIMUS IX FORMULA [29/114] Onboard leds](/views2/1233197/page29/bg1d.png)
ASUS MAXIMUS IX FORMULA
1-13
Chapter 1

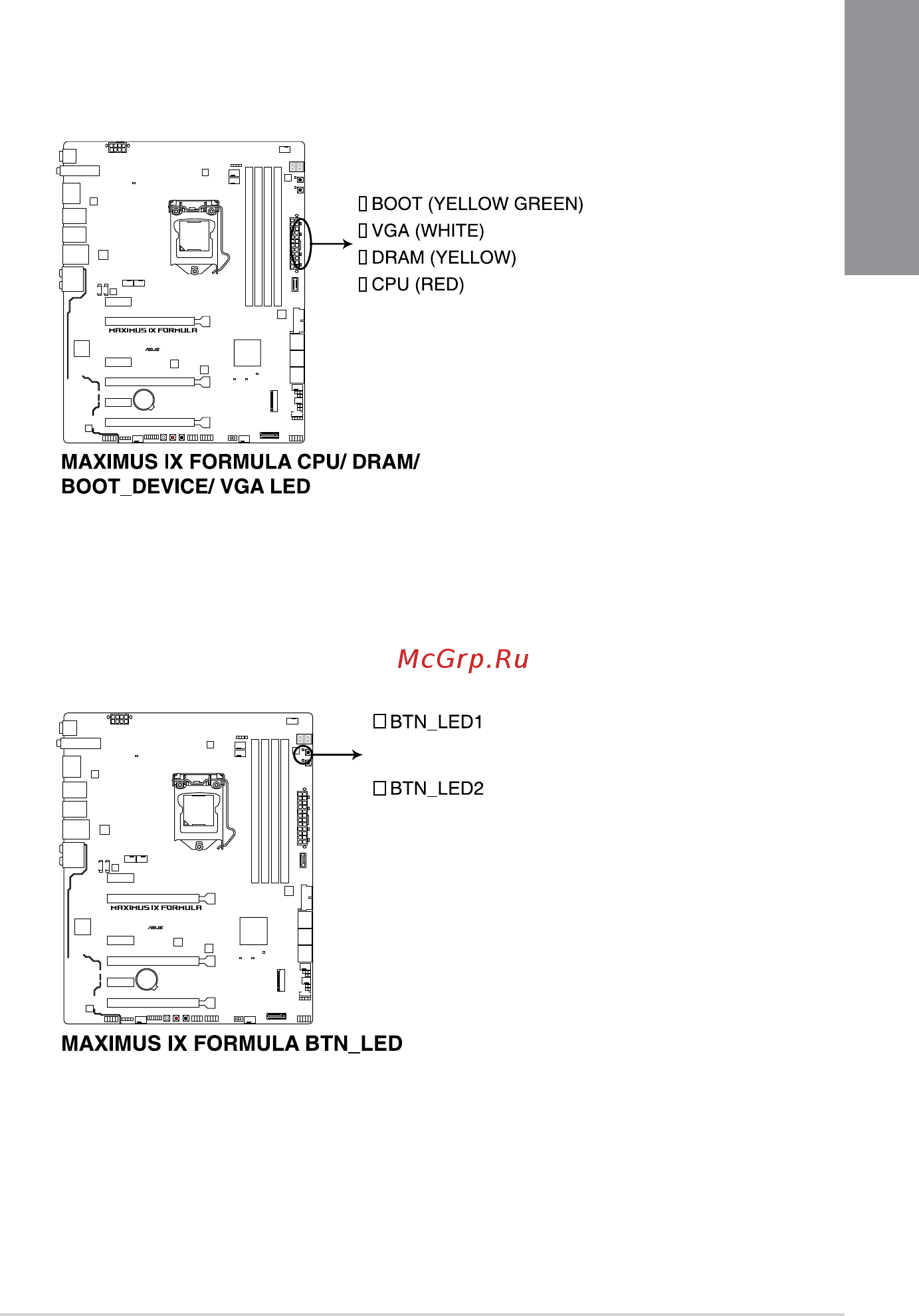

1.1.7 Onboard LEDs
1. Q LEDs (BOOT_DEVICE_LED, VGA_LED, DRAM_LED, CPU_LED)
QLEDscheckkeycomponents(CPU,DRAM,VGAcard,andbootingdevices)in
sequenceduringmotherboardbootingprocess.Ifanerrorisfound,thecorresponding
LEDremainslituntiltheproblemissolved.Thisuser-friendlydesignprovidesan
intuitivewaytolocatetherootproblemwithinseconds.
2. Button LEDs (BTN_LED1-2)
TheseLEDsaredesignedtoindicatethelocationoftheSTARTandRESETbuttons.
