ASUS MAXIMUS IX FORMULA
1-31
Chapter 1

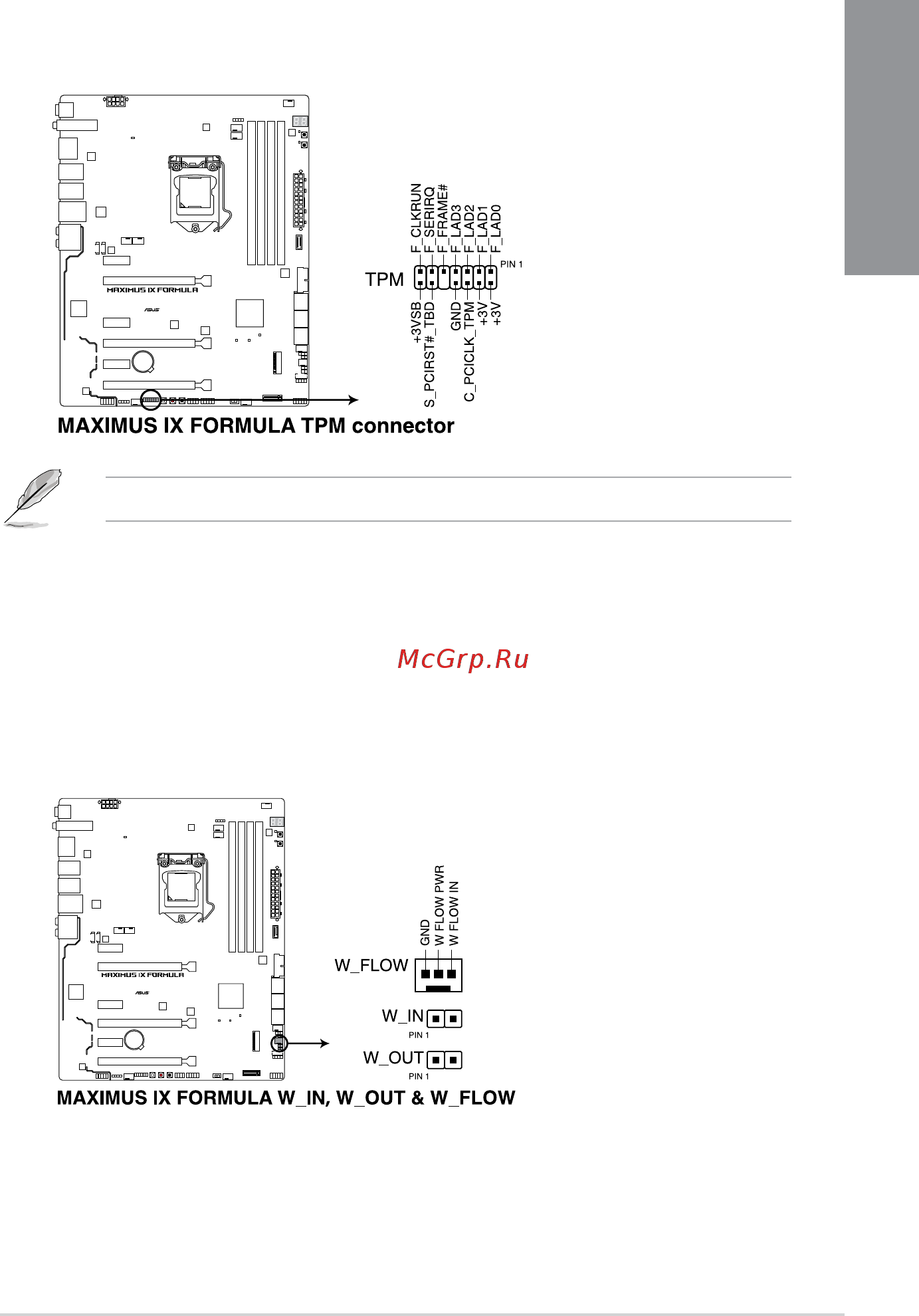

14. TPM connector (14-1 pin TPM)
ThisconnectorsupportsaTrustedPlatformModule(TPM)system,whichsecurely
storeskeys,digitalcerticates,passwordsanddata.ATPMsystemalsohelps
enhancenetworksecurity,protectdigitalidentities,andensuresplatformintegrity.
TheTPMmoduleispurchasedseparately.
15. Water in, water out, and water flow connectors (2-pin W_IN; 2-pin W_OUT;
3-pin W_FLOW)
Theseconnectorsallowyoutoconnectsensorstomonitorthetemperatureandow
rateofyourliquidcoolingsystem.Youcanmanuallyadjustthefansandwaterpumpto
optimizethethermalefciencyofyourliquidcoolingsystem.
