6

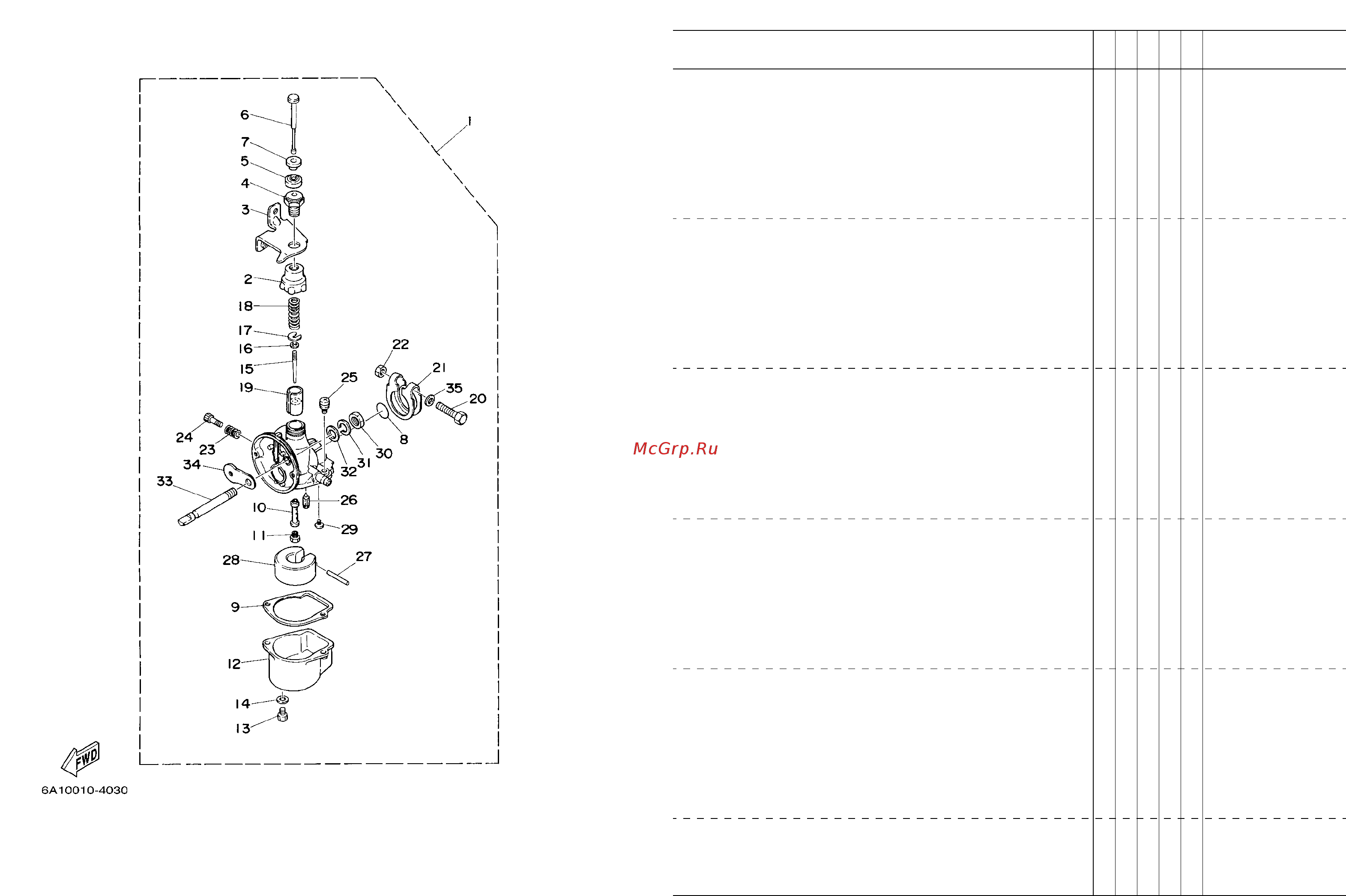

FIG. 3 CARBURETOR CARBURADOR
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6F8–14301–03
CARBURETOR ASSY 1
CARBURADOR COMPLETO 1
1
2
646–14158–00
.TOP, MIXING CHAMBER
.TECHO DE CAMARA DE MEZCLA
1
3
6A1–14497–00
.STAY, THROTTLE WIRE
.SOPORTE VALVULA DE OBTURACION
1
4
646–14321–00
.SCREW, THROTTLE
.TORNILLO DE OBTURADOR
1
5
646–14169–00
.CAP
.FUNDA
1
6
6A1–14314–00
.BAR, THROTTLE
.BARRA DE ACELERADOR
1
7
6A1–14163–00
.SPACER
.ESPACIADOR
1
8
646–14229–01
.O-RING
.EJE DE AHOGADOR
1
9
6A1–14384–00
.GASKET, FLOAT CHAMBER
.EMPAQUE DE CAMARA DE BOIA
1
10
6A1–14341–01
.NOZZLE, MAIN
.BOQUILLA PRINCIPAL
1
11
6A1–14343–52
.JET, MAIN (#104)
.INYECTOR PRINCIPAL (#104)
1
12
6A1–14381–02
.BODY, FLOAT CHAMBER
.CUERPO DE CAMARA DE BOIA
1
13
97890–05006
.SCREW, PAN HEAD
.TORNILLO
1
14
646–14198–01
.GASKET
.EMPAQUE
1
15
6F8–14116–00
.NEEDLE
.AGUJA DE SURTIDOR
1
16
646–14137–00
.CLIP
.PRESILLA
1
17
646–14136–00
.SEAT, SPRING
.ASIENTO DE RESORTE
1
18
646–14331–01
.SPRING, THROTTLE VALVE
.RESORTE VALVULA ACELERADOR
1
19
646–14312–08
.VALVE, THROTTLE 1
.VALVULA DE OBTURADOR 1
1
20
6A1–14125–01
.SCREW
.TORNILLO
1
21
6A1–14127–01
.CLIP
.PRESILLA
1
22
6A1–14358–01
.NUT
.TUERCA
1
23
6A1–14212–00
.SPRING, PILOT ADJUSTING
.RESORTE DE AJUSTE DE PILOTO
1
24
646–14211–02
.SCREW, PILOT ADJUSTING
.TORNILLO DE AJUSTE DE PILOTO
1
25
97980–04110
.SCREW, WITH WASHER
.TORNILLO, CON ARANDELA
2
26
6A1–14392–00
.VALVE, NEEDLE
.VALVULA DE AGUJA
1
27
6A1–14386–00
.PIN, FLOAT
.PASADOR DE BOIA
1
