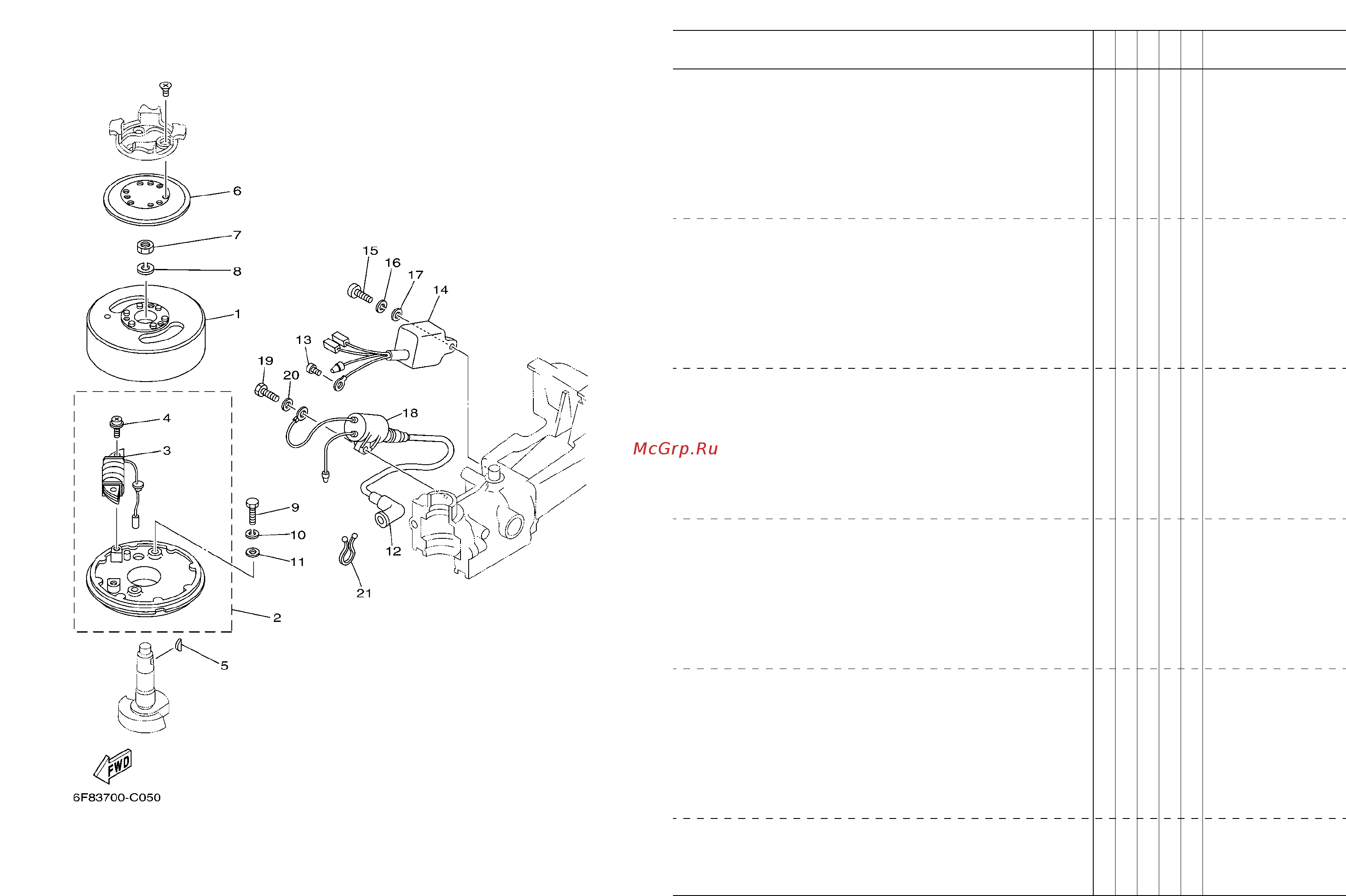

FIG. 5 GENERATOR GENERADOR
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6A1–85550–00
ROTOR ASSY
ROTOR COMPLETO
1
2
6A1–85560–00
BASE ASSY
CONJUNTO BASE
1
3
6A1–85520–01
.COIL, CHARGE
.BOBINA DE CARGA
1
4
97885–05020
.SCREW, PAN HEAD
.TORNILLO A MUESCA
2
5
90280–04M06
KEY, WOODRUFF
CUNA WOODRUFF
1
6
6A1–81362–00
COVER, HOLE
CUBIERTA DE ORIFICIO
1
7
90170–10M33
NUT
TUERCA
1
8
92903–10100
WASHER, SPRING
RONDANA SENCILLA
1
9
97013–06030
BOLT
PERNO
2
10
92903–06100
WASHER, SPRING
RONDANA SENCILLA
2
11
92903–06600
WASHER, PLATE
RONDANA SENCILLA
2
12
663–82370–01
PLUG CAP ASSY
TAPON DE BUJIA COMPLT
1
6G1–82370–21
PLUG CAP ASSY
TAPON DE BUJIA COMPLT
1FOR CAR
FOR CAR
13
97880–05008
SCREW, PAN HEAD
TORNILLO DE CABEZA CON PLANA
1
14
6A1–85540–01
C.D.I. UNIT ASSY
UNIDAD C.D.I. COMPLETA
1
15
97885–06016
SCREW, PAN HEAD
TORNILLO A MUESCA
1
16
92995–06100
WASHER, SPRING
ARANDELA
1
17
92995–06600
WASHER
ARANDELA
1
18
6A1–85570–00
IGNITION COIL ASSY
BOBINA DE IGNICION COMPLETO
1
19
97095–06020
BOLT
PERNO
1
20
92995–06600
WASHER
ARANDELA
1
21
90464–08M07
CLAMP
BRIDA
1
