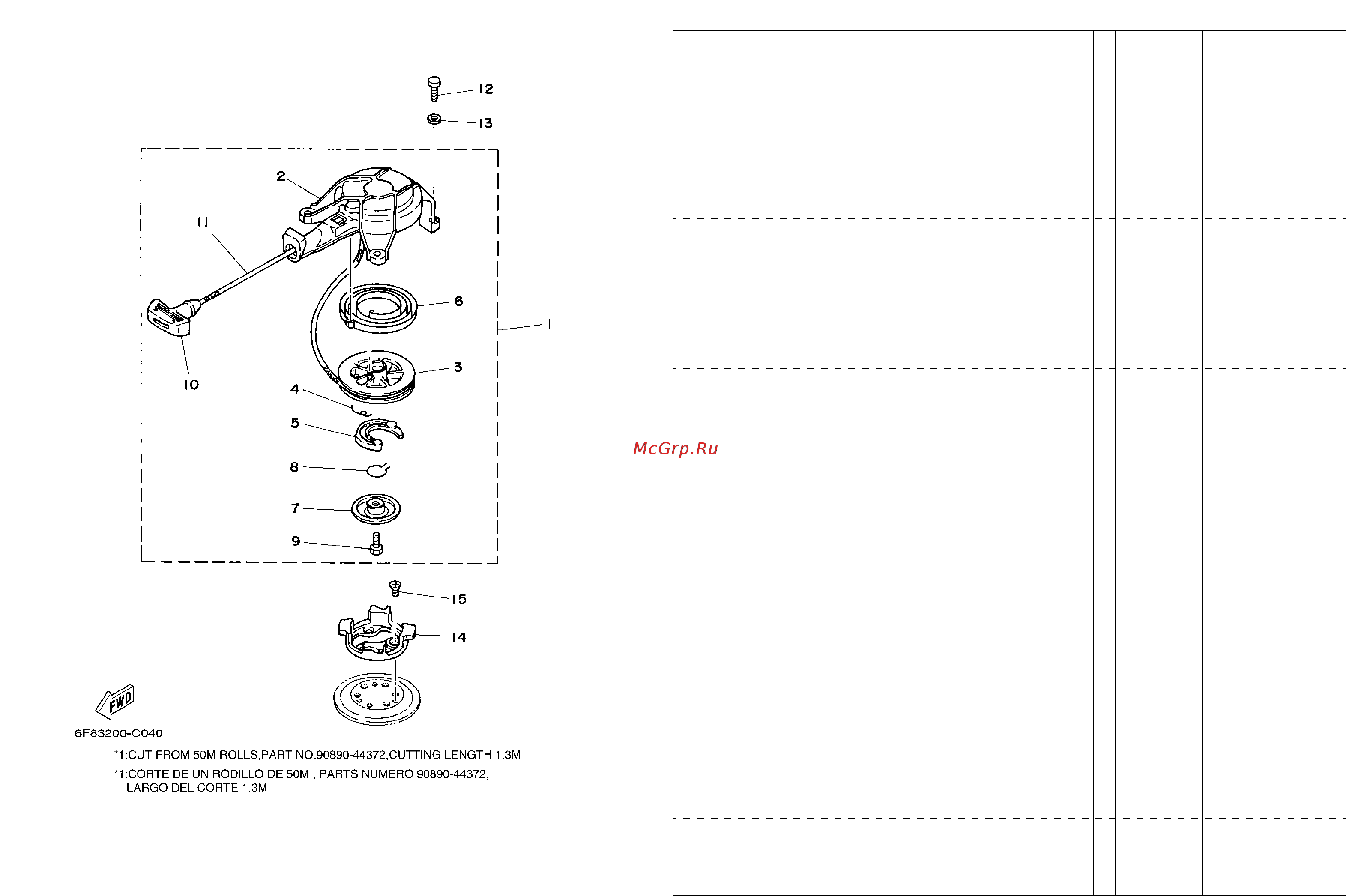

FIG. 4 STARTER ARRANQUE
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6A1–15710–00
STARTER ASSY
ARRANQUE COMPLETO
1
2
6A1–15711–00
.CASE, STARTER
.CAJA DE ARRANQUE
1
3
6A1–15714–00
.DRUM, SHEAVE
.TAMBOR ROLDANA
1
4
6A1–15767–00
.SPRING
.RESORTE
1
5
6A1–15741–00
.PAWL, DRIVE
.TRINQUETE DE TRACCION
1
6
6A1–15713–00
.SPRING, STARTER
.RESORTE DE ARRANQUE
1
7
6A1–15717–00
.SHAFT, STARTER
.EJE DE ARRANQUE
1
8
6A1–15705–00
.SPRING, DRIVE PAWL
.RESORTE
1
9
97322–06012
.BOLT
.TORNILLO
1
10
6A1–15755–02
.HANDLE, STARTER
.MANIJA DE ARRANQUE
1
11
*
.WIRE (L1300)
.CUERDA CE ARRANQUE (L1300)
1*1
*1
12
97095–06016
BOLT
PERNO
3
13
92995–06600
WASHER
ARANDELA
3
14
6A1–15723–00–94
PULLEY, STARTER
POLEA DE ARRANQUE
1
15
98703–06012
SCREW, FLAT HEAD
TORNILLO CABEZA PLANA
3
