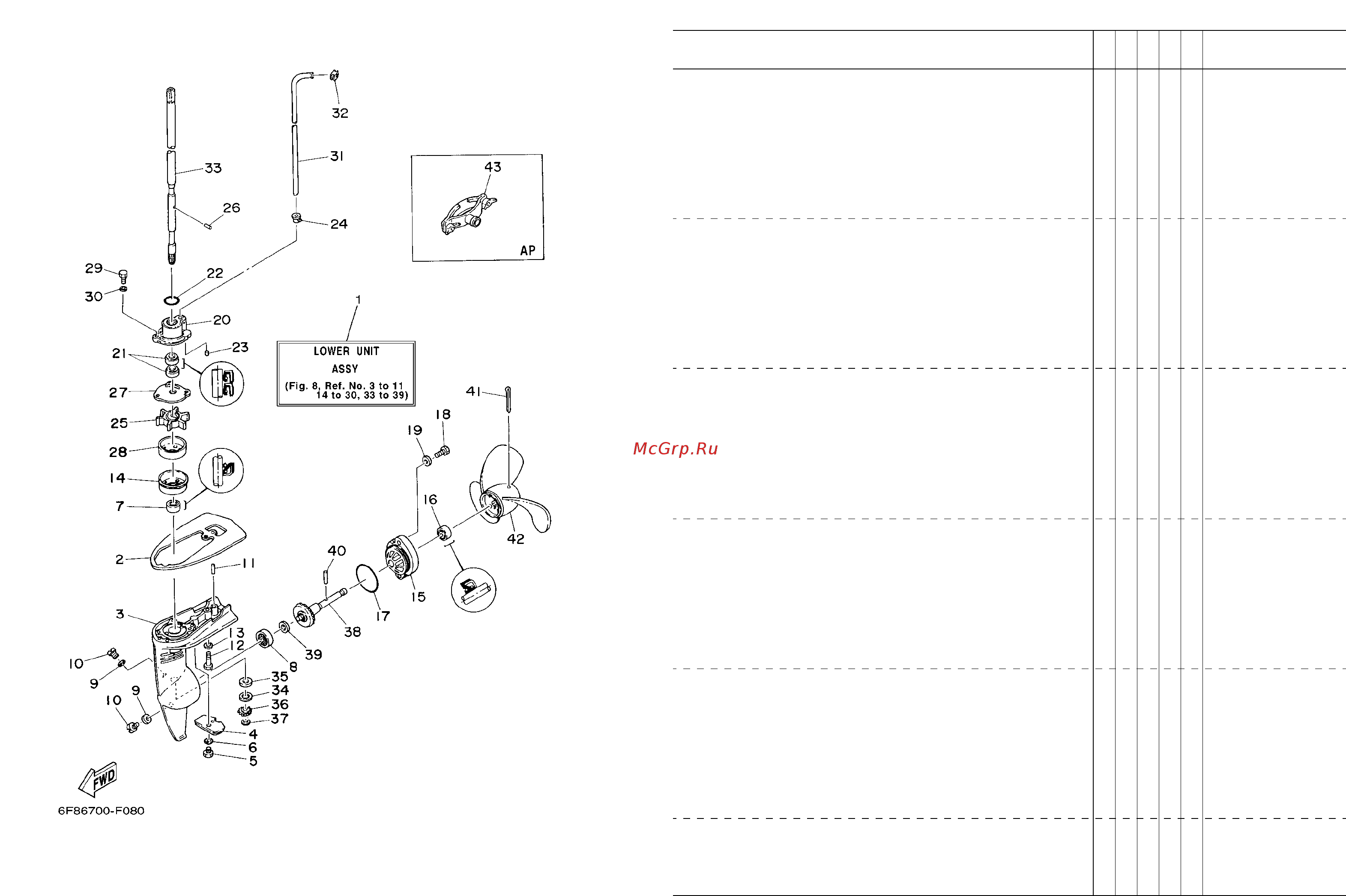

FIG. 8 LOWER CASING & DRIVE IMPULSOR E INFERIOR
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
28
646–44322–00
INSERT, CARTRIDGE
CARTUCHO
1
29
97095–05016
BOLT
PERNO
2
30
92995–05600
WASHER
ARANDELA
2
31
6A1–44361–00
TUBE, WATER
TUBO DE AGUA
1
32
646–44365–00
DAMPER, WATER SEAL
HULE DE SELLO DE AGUA
1
33
6A1–45510–01
DRIVE SHAFT ASSY
EJE DE MANDO COMPL.
1
34
90201–11M49
WASHER, PLATE
ARANDELA PLANA
1
35
646–45534–00–03
SHIM (T:0.30MM)
LAMINILLA DE AJUSTE (T:0.30MM)
1UR
UR
646–45534–00–04
SHIM (T:0.40MM)
LAMINILLA DE AJUSTE(T:0.40MM)
1UR
UR
646–45534–00–05
SHIM (T:0.50MM)
LAMINILLA DE AJUSTE (T:0.50MM)
1UR
UR
36
646–45551–00
PINION (13T)
PINON (13T)
1
37
99001–06600
CIRCLIP
PRESILLA REDONDA
1
38
646–45560–00
GEAR 1 (27T)
ENGRANAJE 1 (27T)
1
39
646–45567–00
SHIM (T:0.30MM)
LAMINILLA DE AJUSTE (T:0.30MM)
1UR
UR
646–45567–10
SHIM (T:0.40MM)
LAMINILLA DE AJUSTE (T:0.40MM)
1UR
UR
646–45567–20
SHIM (T:0.50MM)
LAMINILLA DE AJUSTE (T:0.50MM)
1UR
UR
40
90250–03M10
PIN, STRAIGHT
PASADOR CILINDRICO
1
41
91490–30040
PIN. COTTER
CHAVETA
1
42
6A1–45943–00
PROPELLER (3X7-1/4"X4"-A)
PROPELA (3X7-1/4"X4"-A)
1UR
UR
646–45942–01–EL
PROPELLER (3X7-1/4"X5-1/2"-A)
PROPELA (3X7-1/4"X5-1/2"-A)
1UR
UR
646–45944–01–EL
PROPELLER (3X7-1/4"X4-1/2"-A)
PROPELA (3X7-1/4"X4-1/2"-A)
1UR
UR
6F8–45942–01–EL
PROPELLER (3X7-1/4"X5"-A)
PROPELA (3X7-1/4"X5"-A)
1UR
UR
43
646–28193–00
PLUG, WATER CHECK
TAPON DE CONTROL DE LA AGUA
1AP
AP
